• Model NO.：PE-400*900
• Certification：CE, ISO
• Condition：New
• Color：Yello, Orange, White, or Else
• Package：Wooden Box
• Mining Object：Metallic and Non-Metallic Ore Excavator
• Power：as The Model of Crusher Machine
• Transport Package：Exporting Standard
• Specification：ISO 9001: 2000
• Trademark：DENP
• Origin：Shanghai
• HS Code：84742000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PE-400*900 Certification CE, ISO Condition New Color Yello, Orange, White, or Else Package Wooden Box Mining Object Metallic and Non-Metallic Ore Excavator Power as The Model of Crusher Machine Transport Package Exporting Standard Specification ISO 9001: 2000 Trademark DENP Origin Shanghai HS Code 84742000 Production Capacity 100 Sets/Month

Product Description

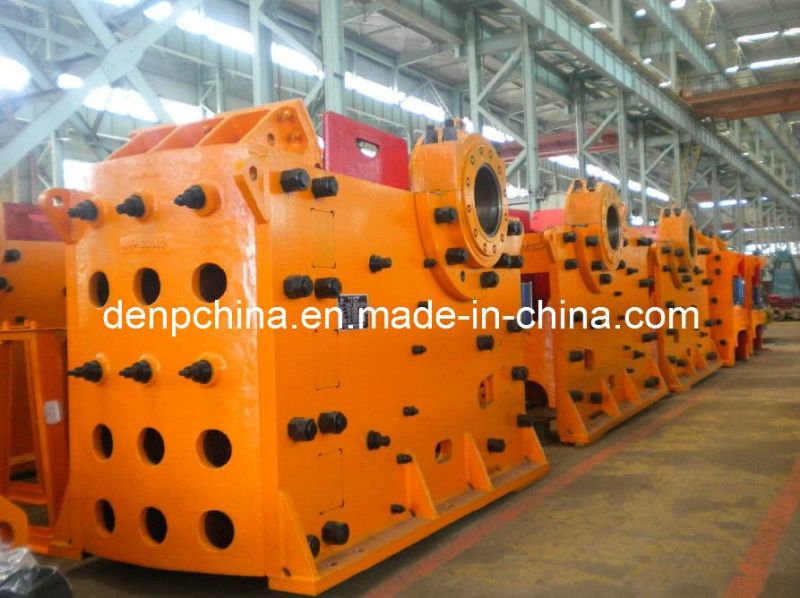

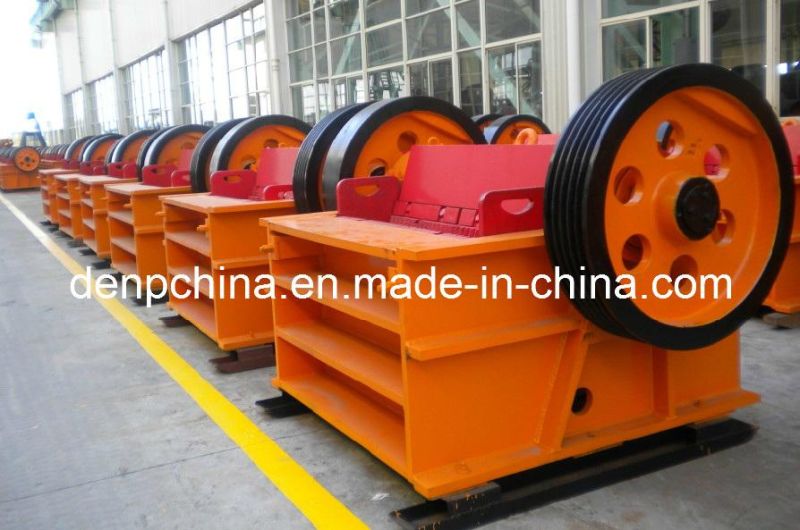

Superior Performance Jaw Crusher Machine for Stone Crushing Site

Jaw Crusher Machine Operating principle:

This Jaw crusher machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Model	Feed inlet size (mm)	Max inlet size (mm)	Capacity (t/h)	Electric power (kw)	Overall size LxWxH (mm)	Weight (t)
PE150×250	150×250	125	1-5	5.5	875×758×850	0.81
PE250×400	250×400	210	5-20	15	1450×1315×1296	2.8
PE400×600	400×600	340	25-65	30	1565×1732×1586	6.5
PE500×750	500×750	425	45-80	55	1892×2054×1853	10.1
PE600×900	600×900	500	70-150	55-75	2520×1840×2303	15.5
PE750×1060	750×1060	630	130-260	110	2620×2302×3110	28
PE900×1200	900×1200	750	220-500	110-132	3789×2826×3025	50
PE1000×1200	1000×1200	850	250-700	132	3889×2826×3025	57
PE1200x1500	1200×1500	1020	400-1000	160-220	4200×3750×3820	100.9
