• Model NO.：CGE-500
• Finished Surface：Thread Process
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Condition：New
• Color：Iron Grey
• Warranty：Mainframe Is One Year (Excluding The Quick Wear PA
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Certificate：ISO 9001:2008
• Stationary/Mobile：Stationary, Mobile
• Colour of Jaw Crusher：as Customer Request
• Quality：China Standard
• Capacity(T/H)：50-900
• Max Feeding Size(Mm)：500-1100
• Type of Crusher：Jaw Crusher
• Price of Jaw Crusher：Negotiable
• Transport Package：Standard Packaging
• Specification：Industrial grade
• Trademark：chuangshen
• Origin：Shanghai China
• Production Capacity：5set,Day

Basic Info.

Model NO. CGE-500 Finished Surface Thread Process Certification CE, ISO, GOST, SONCAP, UL, CCC, API Condition New Color Iron Grey Warranty Mainframe Is One Year (Excluding The Quick Wear PA After-Sales Service Provided Engineers Available to Service Machinery Overseas Certificate ISO 9001:2008 Stationary/Mobile Stationary, Mobile Colour of Jaw Crusher as Customer Request Quality China Standard Capacity(T/H) 50-900 Max Feeding Size(Mm) 500-1100 Type of Crusher Jaw Crusher Price of Jaw Crusher Negotiable Transport Package Standard Packaging Specification Industrial grade Trademark chuangshen Origin Shanghai China Production Capacity 5set/Day

Product Description

2013 hot sale,CE jaw crusher, CE stone crusher, CE jaw crusher factory
ce jaw crusher,ce stone crusher

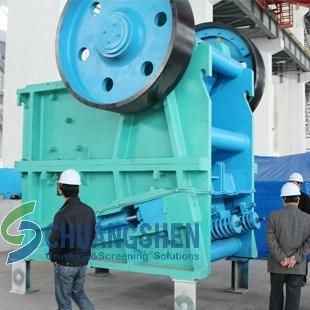

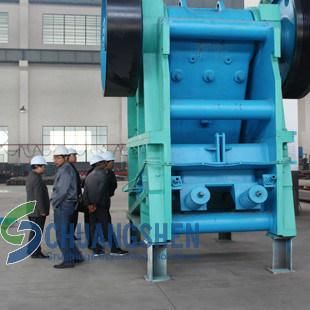

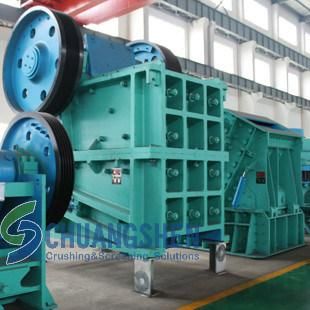

CGE series jaw crushers are single toggle jaw crushers.It is one of the most commonly used crushers in industrial production. They are  widely applied in coarse and medium reduction of various kinds of ores and rocks with compressive strength under 350 MPa. CGE series have a crushing chamber which is composed of a movable jaw, a stationary jaw and a edge plate. Driven by electric motor, via motorpully, V-belt and sheave driving eccentric shaft that make movable jaw move in accordance with pre-selected track cause crushing the material which are in the crushing chamber and setting the crushed material by the discharge gate. CGE series jaw crushers have advanced features such as high reduction ratio, product size uniform, long service time, simple construction, outstanding reliability, easy maintenance, low energy consumption etc. Therefore, CGE series are the top priority products as the primary crushing. They are widely applied in mining, road&railway, concrete, chemical and building material industries.

CGE Series stone Jaw Crushers are appropriate for

1. widely applied in mining, road&railway, concrete, chemical and building material industries.
2. ores and rocks with various hardness
3. concrete basis and steel structure basis
4. stationary, half-mobile and mobile applications

Main advantages of CGE Series Jaw Crushers

Chuangshen has introduced overseas technology of CGE series jaw crushers.  Unique jaw crusher principle, novel technology and structural parameter make the state-of-the-art performance.
CGE series jaw crushers' main shaft is made of forging adopt quenching and tempering, main welding frame is entirely annealing, whole frame construction is robust and durable. Furthermore, the superior wear resistance material and fixed jaw, mobile jaw made of special process multiply service time over jaw made of ordinary manganese steel. CGE series jaw crushers have advanced features such as high reduction ratio, product size uniform, long service time, simple construction, outstanding reliability, easy maintenance, low energy consumption etc. CGE series are the top priority products as the primary crushing you should choose.

Model	Feed Opening Size (WxH)(mm)	Max Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Power (kw)	Over dimensions (LxWxH)(mm)	Weight(kg) (exclude electric)
CGE-100	550x910	450	70-130	54-150	75-90	2000x2150 x1900	11000
CGE-200	630x910	550	50-180	125-290	90-110	2770x2330 x2600	18100
CGE-300	760x1065	650	100-170	210-420	110-132	2800x2500 x2840	28000
CGE-350	860x1065	750	200-270	240-500	110-132	2900x2500 x2840	28600
CGE-400	910x1220	750	75-220	280-570	160	3265x2925 x3845	56000
CGE-500	1060x1220	900	100-300	300-650	160-200	3415x2925 x3845	56700
CGE-600	1070x1370	900	90-220	395-720	185-200	3230x2910 X2970	59100
CGE-800	1220x1520	1100	115-250	530-950	220	3700x2980 x3030	81300
