• Model NO.：LD-PE600x900, LD-PE750x1060, LD-PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-1000tph

Basic Info.

Model NO. LD-PE600x900, LD-PE750x1060, LD-PEW860 Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-1000tph

Product Description

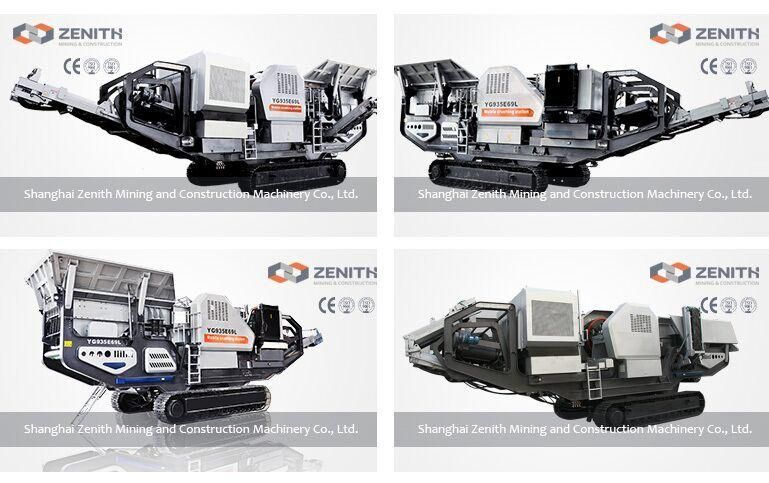

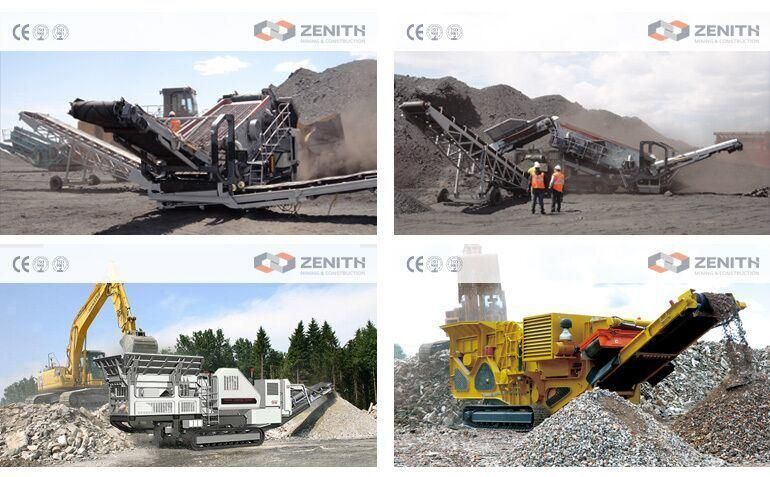

LD Series Track Mounted Mobile Crushing Plant Technical advantages:

1. The blasted rocks are fed into our mobile crushing plant by excavator or loader directly without using truck to transport the materials to the stationery crushing plant. There will be little traffic vehicles investment in the crushing plant. The fuel and tire consumption of the truck and the labor costs are greatly reduced.

2. Every LD series crushing or screening plant is one completed system, which integrated feeding hopper, feeder, crusher or screening, belt conveyor, power supply, and driving device into one unit. It can be easily and quickly set up and relocated at site without other special preparation and modification. This feature makes it is the excellent choice of contractor who need moving he crusher from site to site.

3. LD series jaw and impact crushing plants are the best solution of demolition recycling which heavily emphasizemobility and efficiency. The compact design ensures LD series crushing plants have the best transportability andmore crushing capacity.

4. In mobile crushing and screening process, whether the customer require two-stage or three- stage plant, the combination of LD series mobile crushing and screening plants can provide the customer optimumsolution, and our outstanding designing teamare ready to customize a plant o fit all the customer specific requirements.



Mobile Crusher Plant, Track Mounted Mobile Crushing Plant technical data:

Model	LD-PE600x900	LD-PE950x1060	LD-PEW840x1100
Feeder	GZD-960x3800	GZD-960x3800	GZD-1100x4200
Jaw Crusher	PE600x900	PE950x1060	PEW840x1100
Main Conveyor	B800x8.5 M	B1000x9 M	B1200x9.5 M
Height of Main Conveyor (mm)	3200	3500	3600
Side Conveyor(Optional)	B450x3 M	B500x3.5 M	B650x4 M
Height of Side Conveyor (mm)	2800	3100	3100
Generator (KW)	180	200	250
Transport Length (mm)	11900	13300	15100
Transport Width (mm)	3100	3100	3300
Transport Height (mm)	3650	4500	5000
Total Weight (t)	42.5	57.5	64.5
