• Model NO.：PE500x750,PE600x900,PE750x1060,PE900x1200...
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-1000tph

Basic Info.

Model NO. PE500x750,PE600x900,PE750x1060,PE900x1200... Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-1000tph

Product Description

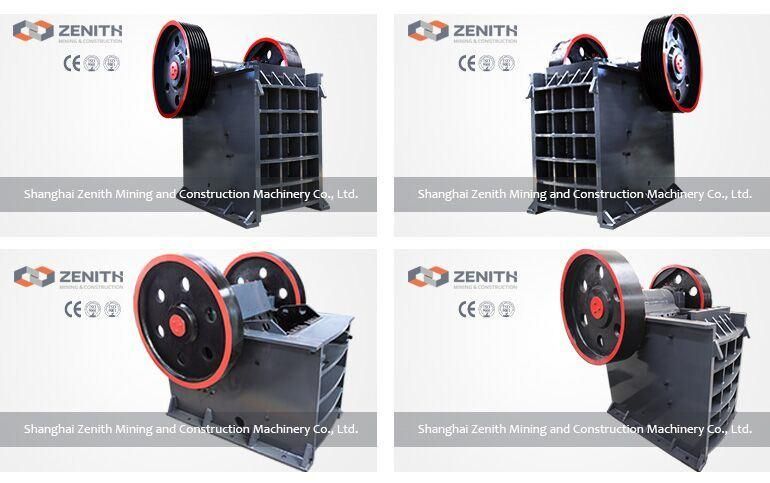

Crushing Machinery, Stone Crusher

Based on years' experience and technology development, zenith jaw crusher series are of 6 different models, which can meet most crushing requirements in primary and secondary crushing. Flexible discharge opening setting of jaw crusher allows perfect match with relative equipments. Zenith jaw crusher is easy to install, operate and maintain. As per feedback, our experts will make continuous improvements on our products to meet customers' changing needs. It is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc.

Crushing Machinery, Stone Crusher Features

1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;
3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal width;
4. The broken cavity is deep and without dead zone, increased capacity and output feed;
5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;
6. The outlet employs pad-style adjustment devices, convenient and reliable, and increase the flexibility of the equipment;
7. Low noise, less dust;

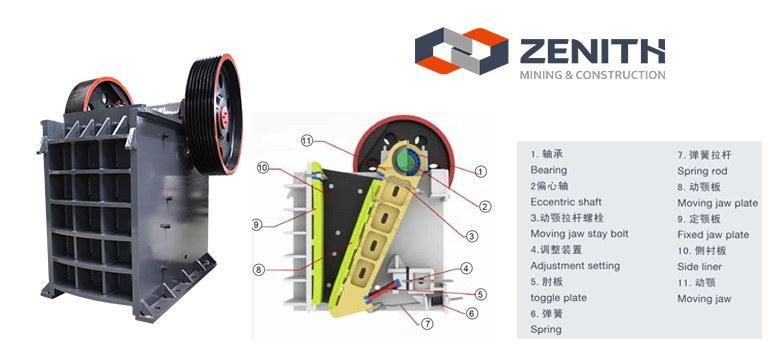

 Working principle of Crushing Machinery: Crushing Machinery mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring. The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw. When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.


Crushing Machinery application:

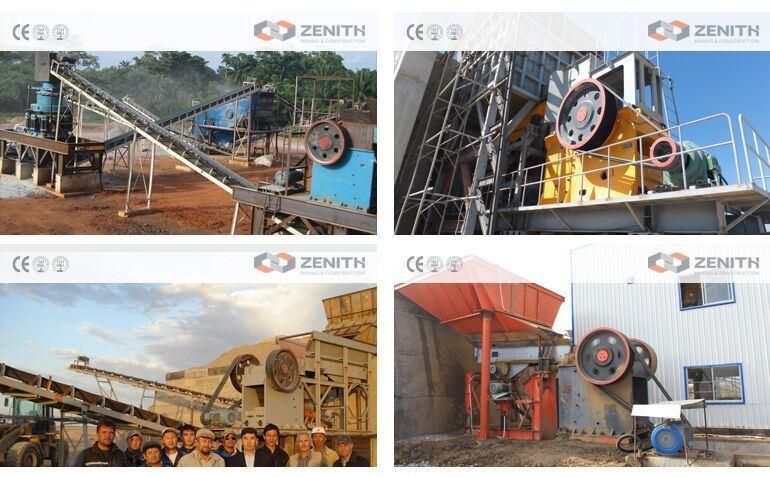

Crushing Machinery is widely used in mine ore crushing, recycling of construction waste, construction aggregate, highway, railway, bridge and the production of construction industry.
Suitable Materials: It is widely used in all kinds of hardness of rock materials and ore crushing, such as granite, diabase, basalt, shale, sandstone, quartz stone, gravel, limestone, iron ore, copper ore, manganese ore, coal, nonferrous metal ore, stone etc.

Crushing Machinery, Stone Crusher technical data:

Model	Feeder Opening (mm)	Setting Adjustment Range (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension (mm)
PE500x750	500x750	50-100	425	40-110	45-55	12	2035x1921x2000
PE600x900	600x900	65-160	480	90-180	55-75	17	2290x2206x2370
PE750x1060	750x1060	80-140	630	110-320	90-110	29	2655× 2302× 3110
PE900x1200	900x1200	95-165	750	220-450	110-132	52	3200× 3050× 2950
PE1000x1200	1000x1200	195-265	850	315-550	110-132	57	3800× 3166× 3045
PE1200x1500	1200x1500	150-300	950	400-850	220	82.5	4200× 3750× 3820
