• Model NO.：KF series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. KF series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

High Efficiency KF1214 Impact Mobile Crusher with CE

Impact Mobile Crusher introduction:

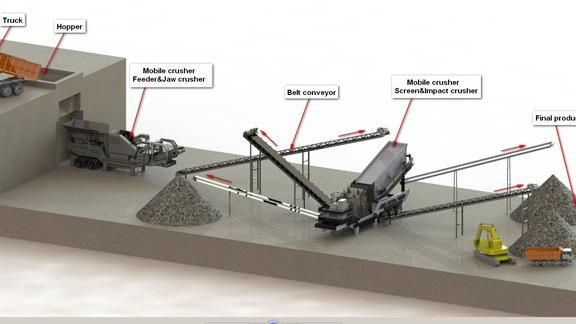

The coarse crushing portable plant is equipped with a high-quality jaw crusher and a vertical shaft impact crusher, there are eight types of jaw crushers and four types of Impact Mobile Crusher for client to choose from. The PEW and HJ series jaw crushers adopt the world's most advanced crushing technology and manufacturing level, boasting stronger crushing ability and larger crushing ratio.

The PFW series Impact Mobile Crusher feature a good cubic outline, free of tension or crack. To efficiently crush hard and strong abrasive materials, you should first select the PEW series Euro-style jaw crushers. The largest feed size can be up to 1100×1200 mm and the maximum crushing capacity can reach 650 t/h.

The HJ series high-energy jaw crushers feature larger crushing ratio, higher production capacity and lower operation cost, with the crushing strength up to 320 MP, suitable for all kinds of materials. Especially when such hard materials as basalt are treated, the HJ series high-energy jaw crushers can achieve larger crushing force by changing the position of the adjusting seat, so that hard materials could be effectively crushed, with the maximum crushing capacity up to 650 t/h.


Extended function of Impact Mobile Crusher

Flexible feeding unit exchange system and crusher unit exchange system - mere investment in stand-alone equipment can realize exchange of different feeding units and between impact and jaw crushers on the same vehicle body in a short period of time. The complete set has its all systems perfectly matched, able to adapt to wider occasions, achieve more comprehensive crushing functions and maximize customers' benefits.


 Impact Mobile Crusher Main features

1. Equipped with a large jaw crusher main engine device, boasting a large crushing ratio and a pioneering crushing force.
2. Effective and reliable HJ series high-energy jaw crushers.
3. Compact frame chassis, able to shorten the transportation length.
4. From single application to multiple-in-one application.
5. Global on-site customer service.
6. The preliminary screening function enables the complete set to have a more powerful capacity.
7. Adaptive main engine device switchover can meet customers' personalized needs.
8. Flexible parking function, quick access to the working mode.

 Impact Mobile Crusher Technical specifications :

K-series  Impact Mobile Crusher is released by the elite R & D team after decades of unremitting efforts. K-series Impact Mobile Crusher, including seven modules and a total of 72 types, are able to be widely used in such phases as coarse crushing, intermediate crushing, fine crushing, ultra fine crushing, sand-making sand washing, sand shaping and screening in fields of metal mines, building aggregates and solid waste treatment, etc. Also they are able to meet customers' requirements for diversification, high quality and high production capacity, and committed to providing customers with comprehensive and systematic integration solutions.


Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Hopper volume(m3)	Max.feeding size (mm)	Transportation dimension(mm)
KE600-1	TSW0936	PE600×900	B800×8.3m	5.3	500	12150×2600×3950
KE750-1	TSW1139	PE750×1060	B1000×8.5m	7	630	13000×2850×4400
KE760-1	TSW1139	PEW760	B1000×8.5m	7	640	13000×2800×4200
KE860-1	TSW1345	PEW860	B1200×9.5m	8	720	14600×3000×4500
KE1100-1	TSW1548	PEW1100	B1400×9.5m	11	930	14050×2900×4000
KJ98-1	TSW1139	HJ98	B800×8.3m	5.9	560	12150×2600×3950
KJ110-1	TSW1345	HJ110	B1000×8.5m	8.5	660	13200×3000×4400
KJ125-1	TSW1345	HJ125	B1400×9.5m	8	800	14600×3000×4500
KF1214-1	TSW0936	PFW1214	B800×8.3m	5.3	500	12150×2600×3980
KF1315-1	TSW1345	PFW1315	B1200×9.5m	8	600	14600×3100×4500
KF1415-1	TSW1548	PFW1415	B1200×9.5m	11	700	14050×3000×4000
