• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

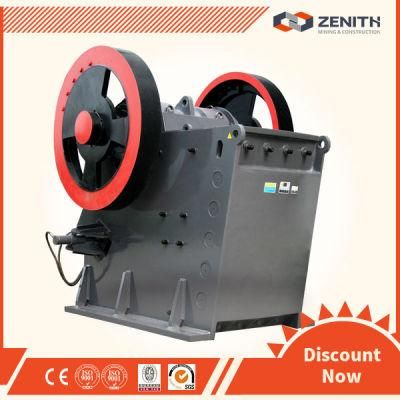

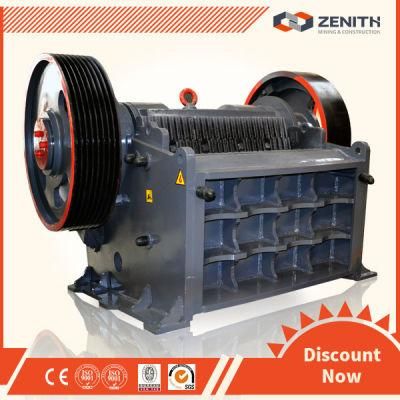

New Condition fine jaw crusher for aggregates with 50-500tph

Introduction of fine jaw crusher for aggregates:

fine jaw crusher for aggregates features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by Zenith, basing on our 30 year's crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.

fine jaw crusher for aggregates features :

1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4.Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.

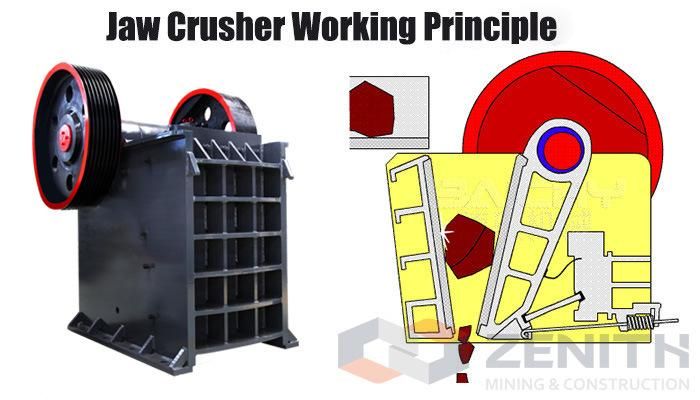

Working Principle of fine jaw crusher for aggregates:

fine jaw crusher for aggregates adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.

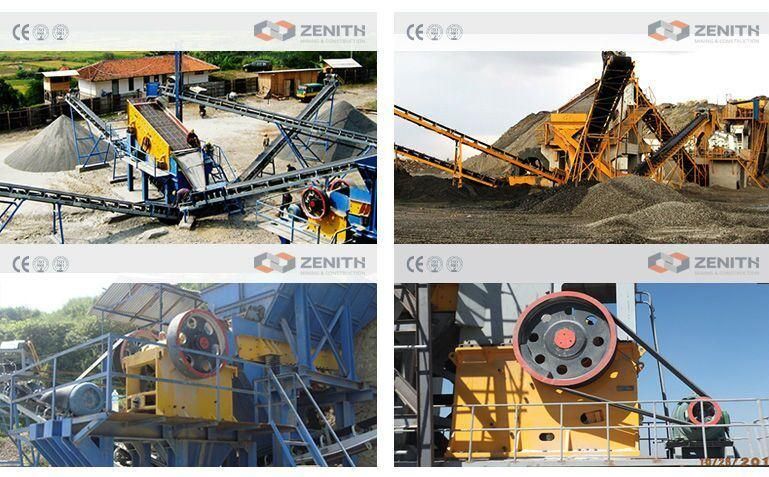

fine jaw crusher for aggregates application:

fine jaw crusher for aggregates is widely used in various materials processing of mining &construction industries, such as it is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral &rocks.

fine jaw crusher for aggregates technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	210	8-185	Y355L1-8/185	4140×2660×3560
