• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Life
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Life Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

PFW series coal crusher factory with high performance

coal crusher factory introduction:

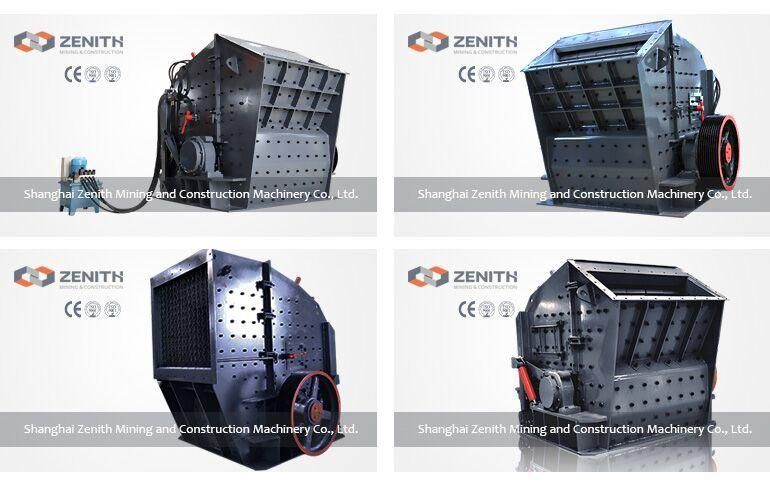

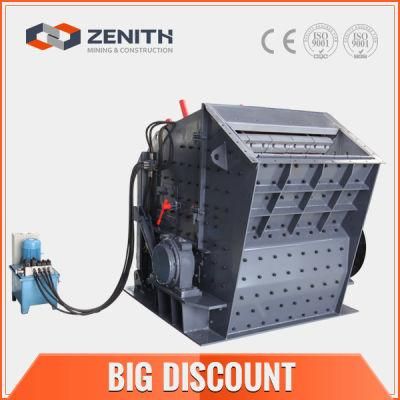

PFW series coal crusher factory are the latest innovation of impact crusher. Besides advantages of general impact crusher, it introduces hydraulic system and three-curtain cavity design.Hydraulic Impact Crusher are the latest development of impact crusher based on sbm's more than 20 years experience and leading technology in PF impact crusher. PFW series impact crushers have the features of heavy duty rotor design, unique hammer locking system, interchangeable wearing parts, and easy maintenance. This series impact crushers provide customers low capital cost solutions, outstanding performance, good cubical shape, lowest operation cost per ton, and wide materials applications.

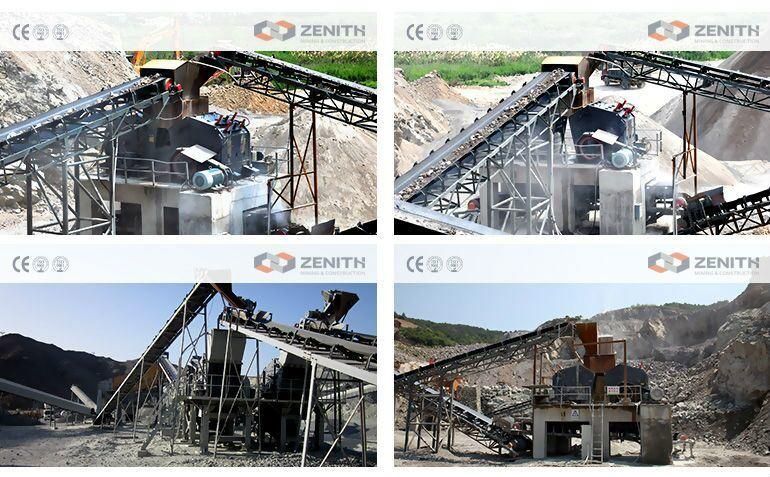

 coal crusher factory application  The coal crusher factory is mainly used for metallurgy, mining, cement, chemicals, refractory and ceramic industries sector. In highway construction, water conservancy projects, building rubble and sand processing, the crusher machine is also widely used.

 coal crusher factory Main Features and Benefits  1. High qualified raw material, less wear, high productivity under any circumstances. Top manufacturing process is the basis for extraordinary machine.

2. Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.

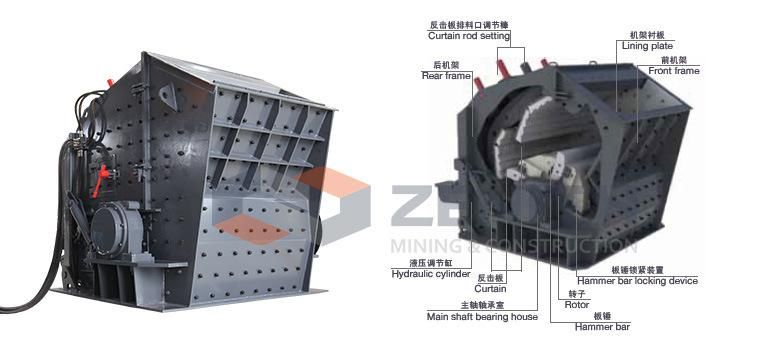

3. Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.

4. Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor have a smoothly running and long working life.

5. Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.

6. Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.

7. Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.


coal crusher factory parameters:

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214III	1150×1400	570×1430	250	90-170	4-132	Y315M-4/132	2550×2310×2100
PFW1315III	1300×1500	625×1530	300	180-270	4-160	Y315L1-4/160	2960×2570×2380
PFW1318III	1300×1800	625×1830	300	220-300	4-200	Y315L2-4/200	2960×2870×2380
PFW1415III	1400×1500	800×1530	350	280-350	4-200	Y315L2-4/200	3120×2650×2660
