• Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

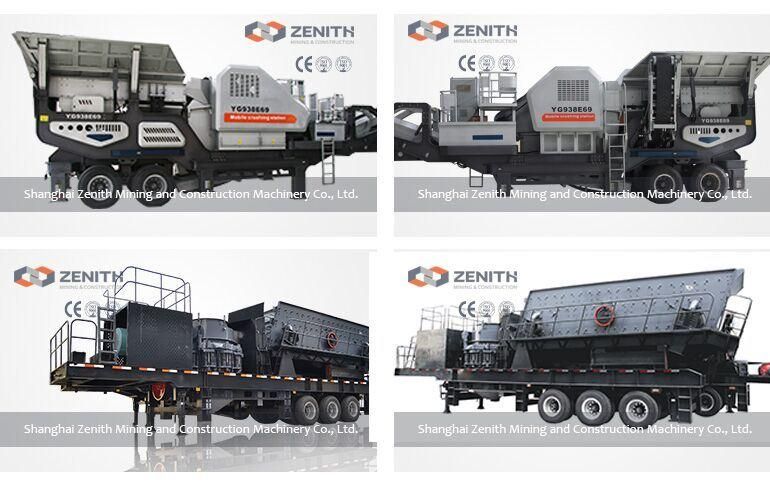

Good quality mobile rock crusher for sale

mobile rock crusher introduction:

mobile rock crusher has the advantages of easy transportation, low transportation cost, flexible configuration, convenient maintenance etc. It can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three stage crushing plant with primary, secondary, and tertiary crushing according to different clients' requirements. Likewise, it can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.



mobile rock crusher for sale

mobile rock crusher is developed according to novel series stone crushing equipment's design idea, which expands the concept field of coarse crushing and fine crushing. Its design idea is based on the client's requirements, which clears faults of the crushing place, surroundings and the complex basic configurations. This series mobile crushing and screening plant really supply simpler, higher efficient and lower cost machine for clients. mobile rock crusher breaks through the constraint of traditional fixed crushing plants and its high transportation cost. It can deal with materials in nearby site which is widely applied in mining, metallurgy, building material, transportation, water conservancy and other industries. Mobile crusher concept is fully adaptable to all mobile crushing demands; It sets up a new range of business opportunities for contractors, quarry operators, recycling and mining applications. Vipeak mobile crushing plant can eliminate the area of the crushing site, and offer high efficient & low cost project plants for the client. The incorporated setting is easy to maintain and install which makes the mobile crusher plant have long endurance and higher efficiency. There are two types of mobile crusher: Wheeled type mobile crusher and crawler type mobile crusher. Wheeled type mobile crusher is also called tire type mobile crusher, tyre type mobile crusher, rubber-tyre type mobile crusher; Crawler type mobile crusher is also called tracked type mobile crusher, track-mounted type mobile crusher. The mobile crusher is usually called mobile crushing plant, mobile crusher station or portable crusher.

Advantages of mobile rock crusher

High performance jaw crusher, impact crusher and cone crusher.
Feeder, belt conveyor and vibrating screen are all in one vehicle.
Turn axle of traction is convenient for road transit and expanding the working place.
Vehicle installation supporting is easier for equipment to station in the working place.
Vehicle electric generating set, motors and control box are all included.

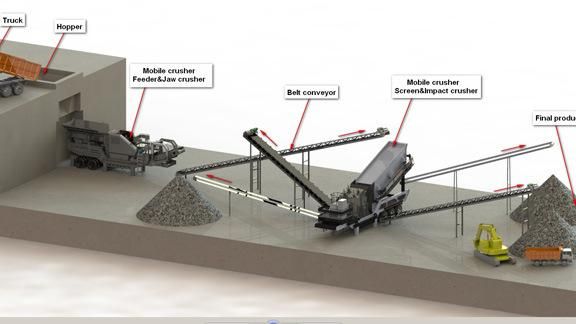

 Mobile Rock Crusher Working Principle:

This series  Mobile Rock Crusher incorporates all the crushing plants ,such as Impact crusher,Vibrating Feeder,Vibrating screen, belt conveyor,etc. As the mobile crusher supplier,Zenith has exported many crushing plants to the world. When you use the independent Mobile Crusher Plant,you will save the work to install the basic facilities in the site. This will greatly reduce cost of material and man-hour. So you can see,the Mobile Crusher Plant is reasonable and compact in arrangement of the equipment.The whole Mobile Crusher Plant is easy operated and features high flexibility and low transporting cost.

Characteristics of mobile rock crusher

1.Flexibility;
2.Lower freight cost;
3.Direct and efficient operation;
4.Easy to adapt and flexible to collocate;
5.Reliable performance and convenient maintenance.


mobile rock crusher parameters:


Parameter model	Transport length (mm)	Transport width (mm)	Transport height (mm)	Max. height (mm)	Max. width (mm)	Conveyor height (mm)	Total weight (ton)
Y3S1548C900	12500	2550	4300	6400	2800	4000	43
Y3S1848C36	12500	2800	4500	6700	3000	4000	47
Y3S1860C51	14000	2800	4500	6700	3000	4200	53
Y3S2160C220	14000	3000	4500	6700	3200	4200	48

Configuration:

Parameter model	Screen model	Cone crusher model	Conveyor model under screen	Capacity (t/h)	Power (kw)
Y3S1548C900	3YK1548	PYB900	B500X7M	50-200	75
Y3S1848C36	3YK1848	S36	B650X7M	70-300	99-134
Y3S1860C51	3YK1860	S51	B650X8M	120-400	212.5-220.5
Y3S2160C220	3YK2160	HP-220	B800X8M	140-450	257.5-264.5
