• Model NO.：PE500x750, PE600x900, PE750x1060, PE900x1200
• Finished Surface：Hole Process
• Certification：CE, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-850tph

Basic Info.

Model NO. PE500x750, PE600x900, PE750x1060, PE900x1200 Finished Surface Hole Process Certification CE, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-850tph

Product Description

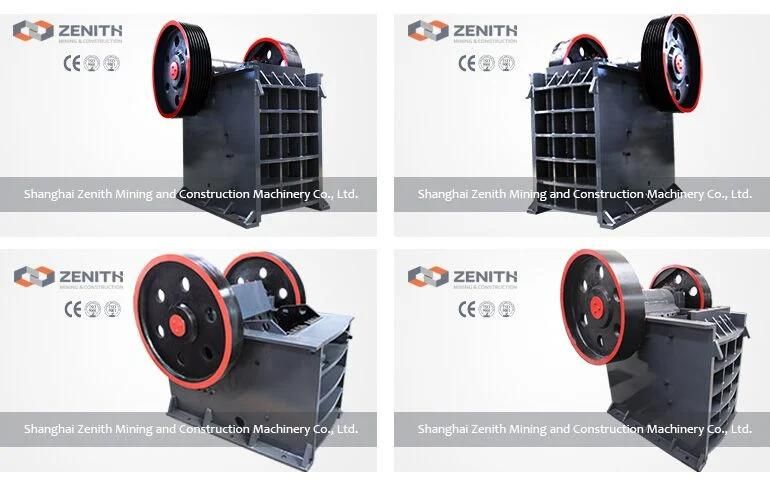

PE600x900 Stone Crusher Plant introduction:




Stone Crusher Plant are based on years of product development. The continuous improvement and refinement has made them the preferred Jaw Crusher among professionals and our customers.

The series of our Stone Crusher Plant are 6 models which can meet most capacity requirements in primary and secondary crushing, at the same time, with low power consumption and easy maintenance. Every feature of these machinery has been carefully designed to provide superior quality and performance. Jaw crushers are widely applied in areas of mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc.

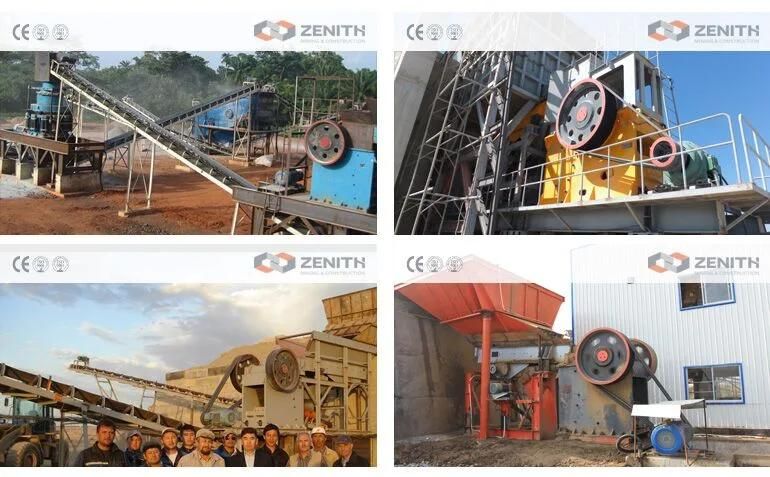

PE600x900 Stone Crusher Plant application:

PE Stone Crusher Plant is widely used in mining, metallurgy, construction, hydropower and chemical industries etc. To materials, it can be used to crush many kinds of stones, such as the basalt quartz, granite, limestone and sand gravel, etc. Also include the ore materials such as gold ore, manganese ore, iron ore, bauxite, copper ore and coal, etc. At the same time, PE jaw crushers are also applicable for recycling construction waste, slags.

PE600x900 Stone Crusher Plant Feature:


1. Durable moving jaw assembly.
2. Integral cast steel bearing housings.
3. Fast and safe setting adjustment.
4. Reasonable cavity design.
5. Larger-size and larger-carrying-capacity bearings.
6. Compact & robust structure.

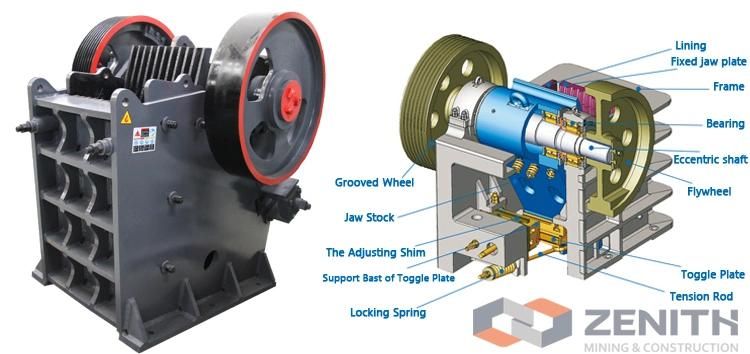

PE600x900 Stone Crusher Plant working principle:

When Stone Crusher Plant works, through the motor's wheels, the triangle belt and slot wheel drive the eccentric shaft, it makes the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity which composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and the final products will be discharged from the discharging port.



PE600x900 Stone Crusher Plant parameters:


Model	Feeder Opening (mm)	SettingAdjustment Range(mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension (mm)
PE500x750	500x750	50-100	425	40-110	45-55	12	2035x1921x2000
PE600x900	600x900	65-160	480	90-180	55-75	17	2290x2206x2370
PE750x1060	750x1060	80-140	630	110-320	90-110	29	2655× 2302× 3110
PE900x1200	900x1200	95-165	750	220-450	110-132	52	3200× 3050× 2950
PE1000x1200	1000x1200	195-265	850	315-550	110-132	57	3800× 3166× 3045
PE1200x1500	1200x1500	150-300	950	400-850	220	82.5	4200× 3750× 3820
