• Model NO.：SDNFX-1800
• Control：PLC
• Certification：API, ISO, CE
• Blade Diameter：300-600
• Max Lifting Travel of Cutting Frame：1000
• Worktable Dimension：3500*1800
• Gross Motro：20kw
• Outline Dimension：6000*3600*3300
• Gross Weight：7000
• Water Consumption：6m3,H
• Transport Package：Plastic Package
• Specification：6000*3600*3300
• Trademark：Xianda
• Origin：Fujian, China (Mainland)
• HS Code：84641080
• Production Capacity：1000set Per Year

Basic Info.

Model NO. SDNFX-1800 Control PLC Certification API, ISO, CE Blade Diameter 300-600 Max Lifting Travel of Cutting Frame 1000 Worktable Dimension 3500*1800 Gross Motro 20kw Outline Dimension 6000*3600*3300 Gross Weight 7000 Water Consumption 6m3/H Transport Package Plastic Package Specification 6000*3600*3300 Trademark Xianda Origin Fujian, China (Mainland) HS Code 84641080 Production Capacity 1000set Per Year

Product Description

Description:

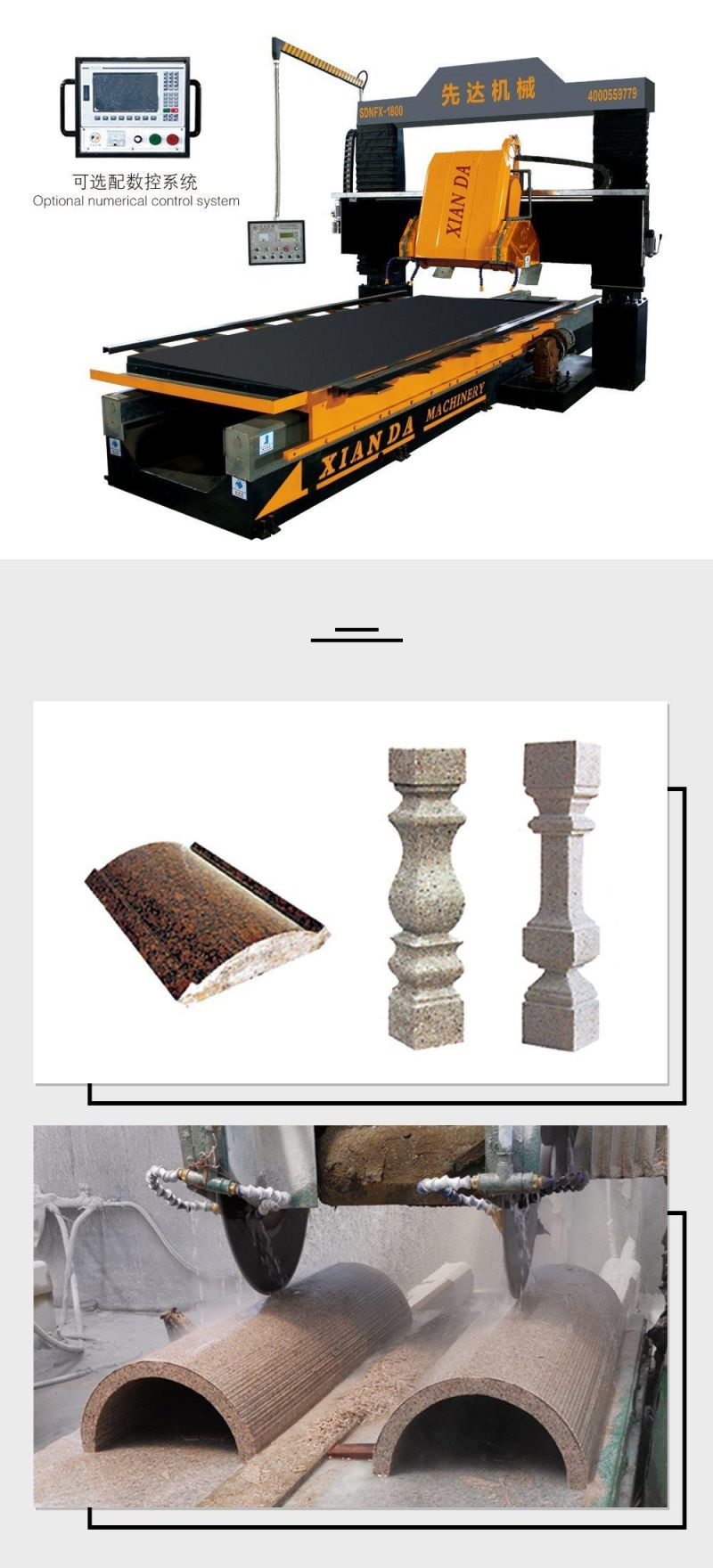

SDNFX-1800 gantry lifting type stone profile cutting machine adopts PLC control, cutting with double saw blades, which is specially used for cutting profiling lines, granite&marble blocks,roman column, big column slab and so on for the heterotype stones.






Technical Parameter


Parameter	Unit	SDNFX-1800	SCNFX-1800
Blade diameter	mm	300-600	300-600
Max lifting travel of cutting frame	mm	1000	1000
Worktable dimension	mm	3500*1800	3500*1800
Main motor	kw	15	15
Gross motor	kw	20	20
Outline dimension	mm	6000*3600*3300	6000*3600*3300
Gross weight	kg	7000	7000
Water consumption	m3/h	6	6

Xianda Machinery


Fujian Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.



Exhibition

Other stone cutting machines we produce:
       Diamond Wire Saw Machine for Trimming/Cutting/Squaring/Profiling,
       Bridge Cutting Machine for Block/Slab/Strip/Tiles,
       Stone Profiling Machine for Linear/Baluster/Pillar/Vase,
       Column Slab Processing Machine.
