Manufacturer Stone Splitting Machine for Paving Stone
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
- Automation：Manual
- Color：Green
Base Info
- Model NO.：BRT40T
- Power：40t
- Weight：2900kg
- MOQ：1set
- Transport Package：Wooden

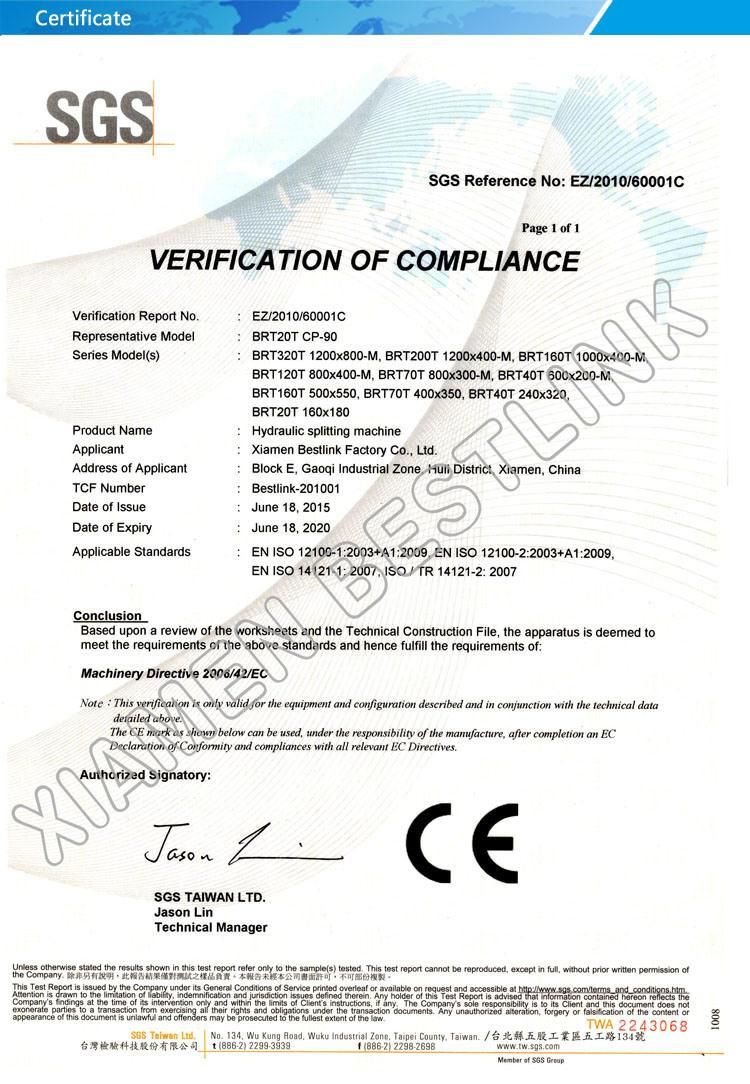

- Specification：CE
- Trademark：BESTLINK
- Origin：Xiamen, Fujian
- HS Code：84791090
- Production Capacity：1000sets,Year
Description
StyleModel Max splitting Splitting width×height pressure C-font style BRT20T 160×180mm 20ton BRT40T 240×320mm 40ton BRT70T 400×350mm 70ton BRT120T 500×450mm 120ton BRT160T 500×550mm 160ton Bridge style BRT20T 600×150mm 20ton BRT50T 600×300mm 50ton BRT800T 800×280mm 80ton BRT320T 1200×800mm 320ton
BRT50T-MF & BRT100T-MF
The machine is used to split concrete block and saw face natural stone; it is equipped with four blades to ensure a perfect split every time on the four sides of the product.Model BRT50T-MF 400*200 BRT100T-MF 600*300 Max.splitting width mm 400 600 Max.splitting height mm 200 300 Max.splitting power ton 50 100 Electric power kw 7.5 11 Main machine dimension
(L*W*H) mm 1145*1000*2030 1510*1100*2370 Machine weight kg 2000 2500 Conveyor dimension(L*W*H) mm 1400*750*700 /

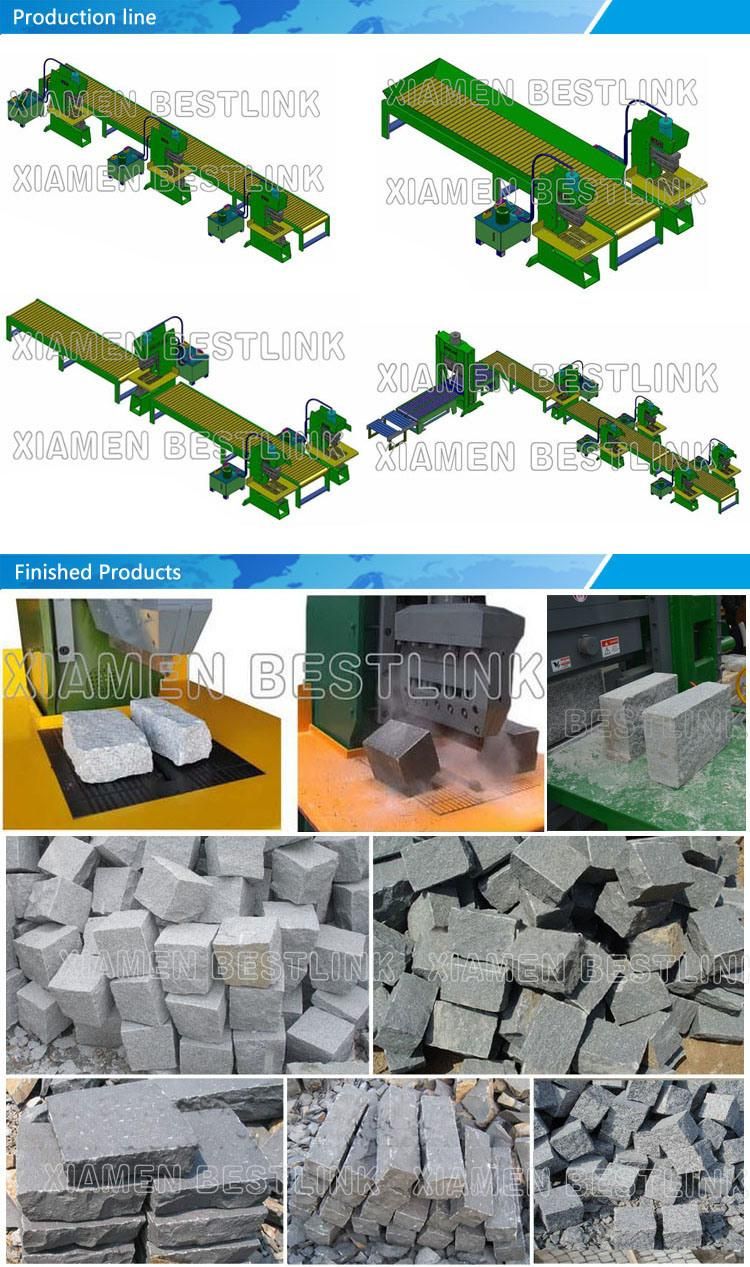

Conveyer Systems can be situated at the front or back of the splitting machine to facilitate the movement of irregular and heavy stones. Thanks to this application it's possible to have a continued input of semi manufactured products, which will give an increase of work productivity.
BRT50T-MF & BRT100T-MF
The machine is used to split concrete block and saw face natural stone; it is equipped with four blades to ensure a perfect split every time on the four sides of the product.
(L*W*H)
Conveyer Systems can be situated at the front or back of the splitting machine to facilitate the movement of irregular and heavy stones. Thanks to this application it's possible to have a continued input of semi manufactured products, which will give an increase of work productivity.
