• Model NO.：PG series
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, CCC
• Condition：New
• Color：as Required
• Motor Type：AC Motor
• Stone Crushed：Granite, Limestone, Cobble, Cement
• Power：132-315kw
• Voltage：380V or Customizd
• Motor：Simens,Huali
• Crusher Frame：Q235 Steel
• Transport Package：Suitable for Sea Transportation
• Specification：High specification
• Trademark：Raytone Machinery
• Origin：Shandong Linyi
• HS Code：8464909000
• Production Capacity：50 Set Per Month

Basic Info.

Model NO. PG series Finished Surface Cut Off Tool Certification CE, ISO, CCC Condition New Color as Required Motor Type AC Motor Stone Crushed Granite, Limestone, Cobble, Cement Power 132-315kw Voltage 380V or Customizd Motor Simens,Huali Crusher Frame Q235 Steel Transport Package Suitable for Sea Transportation Specification High specification Trademark Raytone Machinery Origin Shandong Linyi HS Code 8464909000 Production Capacity 50 Set Per Month

Product Description

Brief Introduction

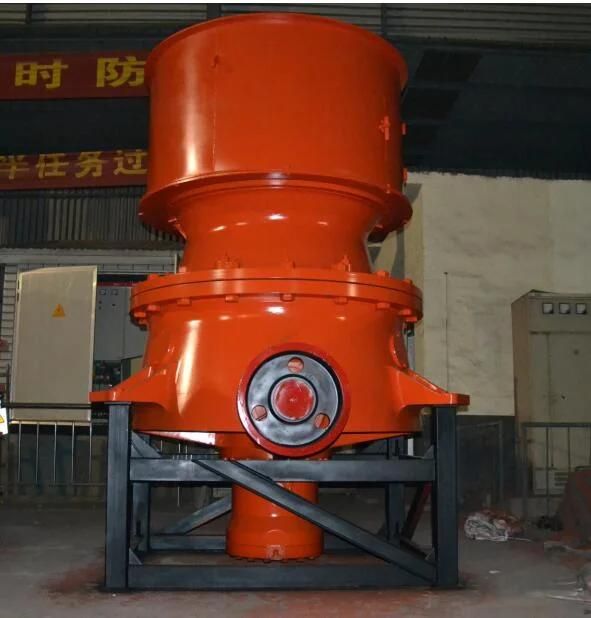

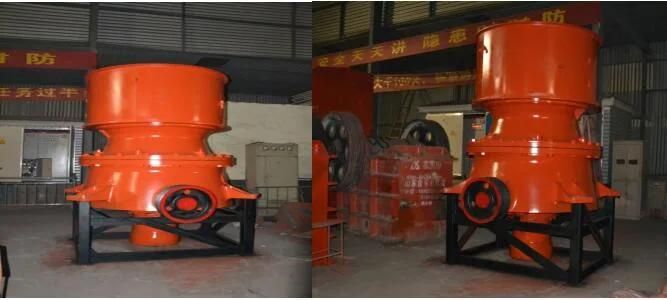

PG series single cylinder hydraulic cone crusher is combined with technology such as machinery, hydraulic pressure, electricity, Automation, intelligent control, etc. representing the most advanced crusher technology in the world. It is not only widely applied in medium, fine and super fine stone crushing industry, but also in such industries as metal and nonmetallic ore, cement, construction, sand making, metallurgy, etc. Besides, GP crusher is suitable to crush iron ore, non-ferrous metal ore, granite, limestone, quartzite, sandstone, pebble, etc




Work Principle

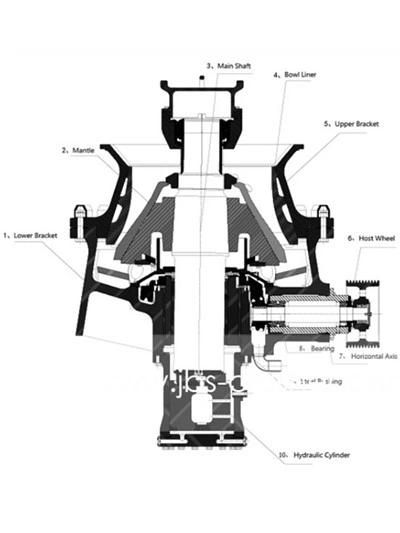

PG series single cylinder hydraulic cone crusher is mainly composed of six parts: upper frame body, lower frame body, movable cone, eccentric sleeve, transmission part and hydraulic cylinder. The horizontal shaft driven by the motor makes eccentric sleeve rotating via the gear, and then the eccentric sleeve drives the movable cone rotating to realize continuous stone extrusion.

Performance features
1. High capacity and efficiency.
2. The adjustment of control with convenience and accuracy.
3. Larger load capacity, longer service life.
4. Stable performance, easy maintenance.
5. Optimized lubrication/hydraulic station, low cost.
6. Reliable insurance, High safety.
Specifications

Model	Feeder Inlet(mm)	Max Feeding(mm)	Output Size(mm)	Capacity (t/h)	Motor Power(kw)
GP100	150	120	10-30	40-100	132
GP200	220	180	15-35	110-200	160
GP300	230	190	15-40	180-300	250
GP500	230	180	20-50	300-500	315
