• Model NO.：PE500x750, PE600x900, PE750x1060, PE900x1200
• Finished Surface：Hole Process
• Certification：CE, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PE500x750, PE600x900, PE750x1060, PE900x1200 Finished Surface Hole Process Certification CE, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 40-850tph

Product Description

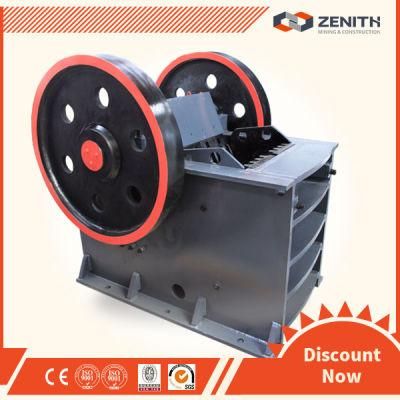

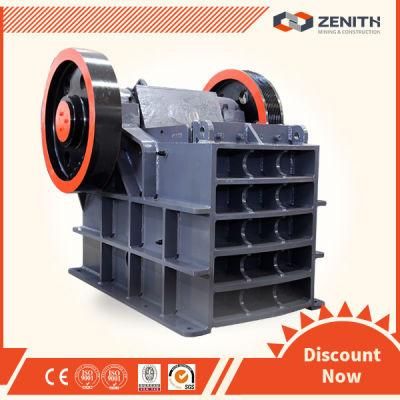

PE Series 600 X 900 Jaw Stone Crusher with CE

Jaw Stone Crusher 600 X 900 are based on years of product development. The continuous improvement and refinement has made them the preferred Jaw Crusher among professionals and our customers.

The series of our Jaw crusher are 6 models which can meet most capacity requirements in primary and secondary crushing, at the same time, with low power consumption and easy maintenance. Every feature of these machinery has been carefully designed to provide superior quality and performance. Jaw crushers are widely applied in areas of mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc.

Jaw Stone Crusher 600 X 900 application:

Jaw Stone Crusher 600 X 900 is widely used in mining, metallurgy, construction, hydropower and chemical industries etc. To materials, it can be used to crush many kinds of stones, such as the basalt quartz, granite, limestone and sand gravel, etc. Also include the ore materials such as gold ore, manganese ore, iron ore, bauxite, copper ore and coal, etc. At the same time, Jaw Stone Crusher 600 X 900 are also applicable for recycling construction waste, slags.

Jaw Stone Crusher 600 X 900 working principle:

When Jaw Stone Crusher 600 X 900 works, through the motor's wheels, the triangle belt and slot wheel drive the eccentric shaft, it makes the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity which composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and the final products will be discharged from the discharging port.


Jaw Stone Crusher 600 X 900 Main Features and Benefits:

1.High crushing ratio,uniform particle size,simple structure
2.Reliable performance,economic operation
3.Safe and reliable lubrication system, easy to replace parts,low maitenance workload
4.point edipse discharge opening adjustment device,reliable and easy to adjust the range to meet the needs of different customers.


1. What advantages does yourJaw Stone Crusher have?
-The main advantage of our used PE stone jaw crusher over other kinds of mills is that you can grind a friable or crystalline material to 5 - 47 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your Jaw Stone Crusher?
---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

3.How many years have you been manufacturing the machine?
---28 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality

4. How do you adjust particle size in your Jaw Stone Crusher?
-Particle size is adjusted primarily by a change in feed rate. When the rate is reduced, finer particles result because there is more energy available per particle to accelerate the particles and the entire fluid mass. Collisions become more violent and pressure gradients become larger.

Jaw Stone Crusher  parameters:

Model	Feeder Opening (mm)	SettingAdjustment Range(mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension (mm)
PE500x750	500x750	50-100	425	40-110	45-55	12	2035x1921x2000
PE600x900	600x900	65-160	480	90-180	55-75	17	2290x2206x2370
PE750x1060	750x1060	80-140	630	110-320	90-110	29	2655× 2302× 3110
PE900x1200	900x1200	95-165	750	220-450	110-132	52	3200× 3050× 2950
PE1000x1200	1000x1200	195-265	850	315-550	110-132	57	3800× 3166× 3045
PE1200x1500	1200x1500	150-300	950	400-850	220	82.5	4200× 3750× 3820
