• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Cut Off Tool Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 80sets/Month

Product Description

Hot sale mini stone crusher machine price

mini stone crusher machine application: 1. This series of mini stone crusher machine price is One of the most popular stone-crushing equipments in the world, small stone crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strengthof crushed material is 320Mpa.  2. Our design and production are of high position both at home and abroad. One of our main products, mini stone crusher machine price is designed by our engineers with large reduction ration,even granularity, simple structure, reliable operation, convenient maintenance,low cost. It is widely used in mining, metallurgy, construction, highway, railroad,and chemistry industries

 mini stone crusher machine price structure:

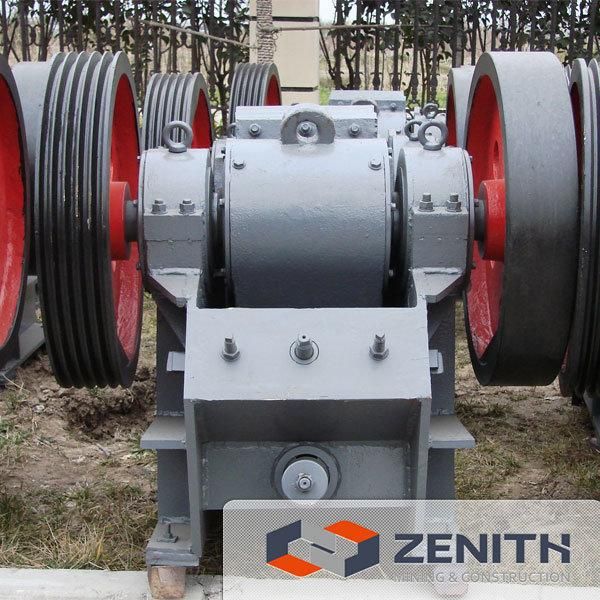

 PE serial mini stone crusher machine price mainly consists of main frame, movable( swing ) jaw, eccentric shaft, pulley, toggle plates etc. The electric motor passes power via V-belt pulley to the eccentric shaft to make the movable jaw moves in mesh, therefore, materials in crushing chamber can be crushed.

 performance features of mini stone crusher machine price:1. The mini stone crusher machine price crushing grain size of charge is big, the breaking ratio is big. the productivity is high.2. The operation of mini stone crusher machine price is stable and reliable,fixed with over-loading protective device.3. The jaw crusher's energe consumption is low, the throwaway parts are little,the maintenance cost is low.4. The adjusting parts of the mini stone crusher machine price are reinforced emphatically. and precisi on working, reduce the frequency of rapair.5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing.6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.

 mini stone crusher machine price Technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
