CNC Optional Stone Baluster Profiling Cutting Machine with Blade Head
Fujian Xianda Machinery Co., Ltd.- Type：Baluster Cutting Machine
- Usage：Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：FHRC-230,460-4
- Control：PLC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
- Diameter of Blade：Φ500mm
- Max Processing Diameter：Φ230mm,4PCS;Φ460mm,2PCS
- Max Cutting Length：200-1500mm
- Main Motor：11*2kw
- Gross Motor：29.5kw
- Outline Dimension：3600*2000*3200mm
- Water Consumption：6m3,H
- Gross Weight：5000kg
- Head Qty：4 Heads
- Use for：Processing Baluster,Railing
- Transport Package：Load in a 20 Feet Container
- Specification：3600*2000*3200mm
- Trademark：Xianda
- Origin：Jinjiang, Fujian, China
- HS Code：84641090
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. FHRC-230/460-4 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Diameter of Blade Φ500mm Max Processing Diameter Φ230mm/4PCS;Φ460mm/2PCS Max Cutting Length 200-1500mm Main Motor 11*2kw Gross Motor 29.5kw Outline Dimension 3600*2000*3200mm Water Consumption 6m3/H Gross Weight 5000kg Head Qty 4 Heads Use for Processing Baluster/Railing Transport Package Load in a 20 Feet Container Specification 3600*2000*3200mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description
stone baluster cutting machine
Product Description

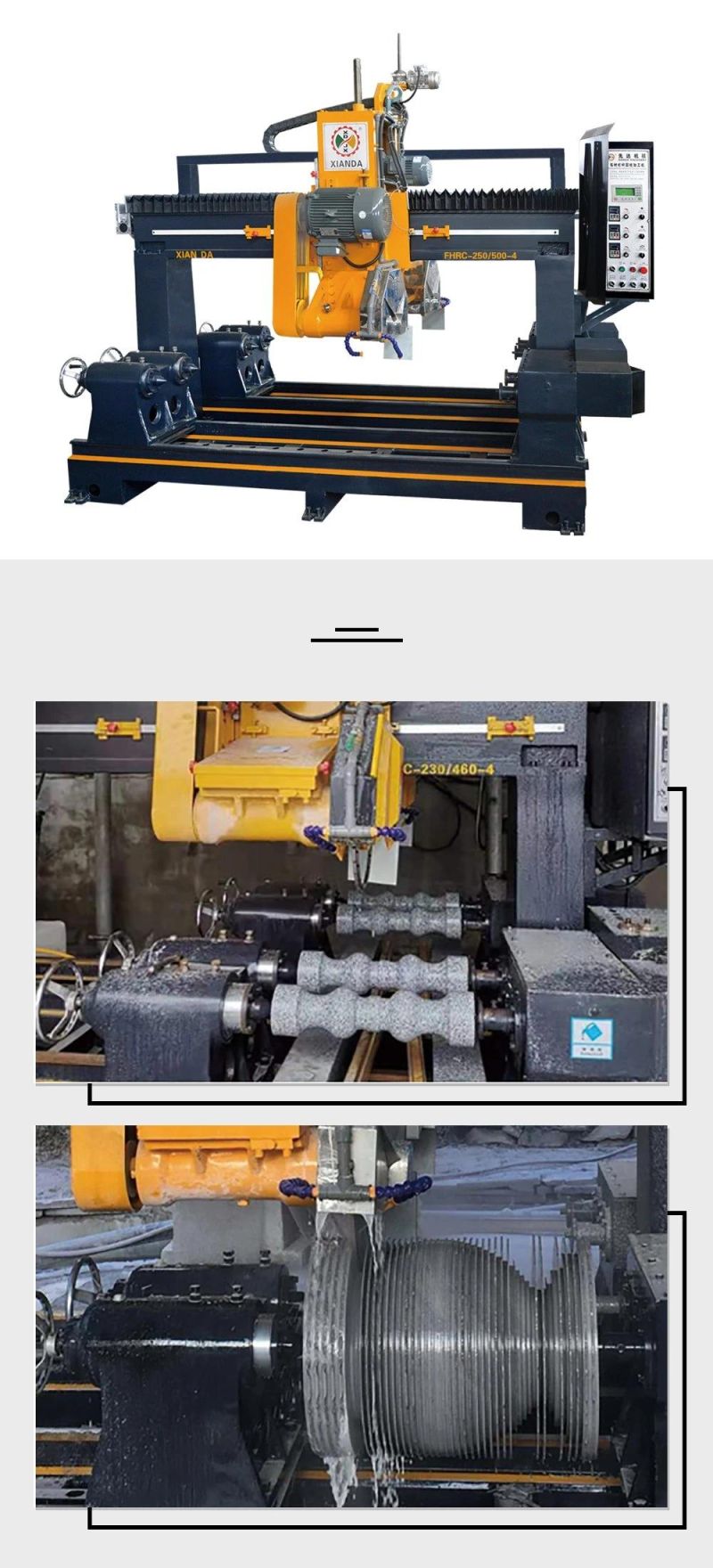

FHRC-230/460-4 marble granite handrail/column/Balustrade Cutting Machine adopts PLC control, the use of profiling probe devices, the probe automatically track curved (straight) line template, template profiling, both of blade holder in a whole block, moving in the oil-immersed cross beam, and adopt screw drive lifting, screw have a long life, horizontal, vertical moving steady, smooth cutting, high efficiency, while the use of oilimmersed gearbox gear structure, better gear and turbine housing to protect the process ideal for different specifications of cylinder, railings, flower pots and other special-shaped ball and stone products.
Technical Parameter
| Parameter | Unit | FHRC-230/460-4 |
| Blade Diameter | mm | φ500 |
| Max Processing Diameter | mm | φ230/4pcs ; φ460/2pcs |
| Cutting Length | mm | 200-1500 |
| Main Motor | kw | 11*2 |
| Gross Motor | kw | 29.5 |
| Outline Dimension | mm | 3600*2000*3200 |
| Gross Weight | kg | 5000 |
| Water Consumption | m3/h | 6 |
Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Our Service
We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
Top 5 stone cutting machine manufacturer with ISO&CE certificate.
Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.
We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.
After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training. FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Does it can accept OEM?
A: Yes,and some of the part can change as customer require.
A: Yes,that we are the stone machinery factory for over 30 years.
