• Model NO.：PF 1010, PF1315, PF1210, PF1214
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Sevice：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PF 1010, PF1315, PF1210, PF1214 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Sevice for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

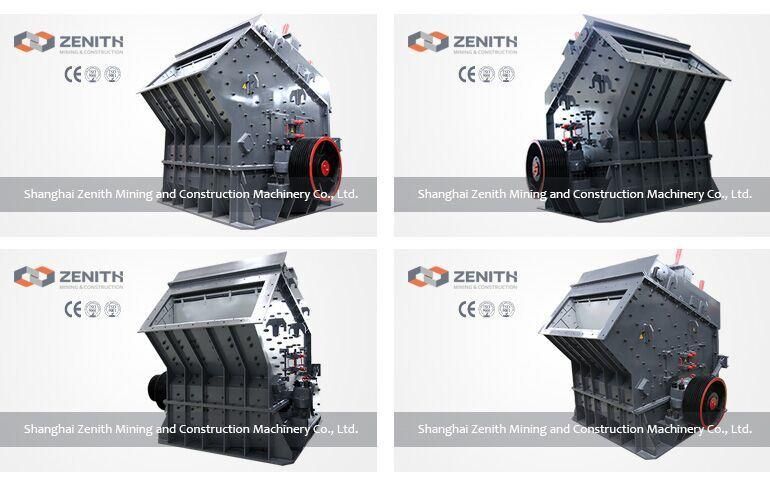

PF1010 impact crusher Rock Crushing Equipment for Sale



PF1010 impact crusher Rock Crushing Equipment introduction:

PF1010 impact crusher Rock Crushing Equipment mainly used in intermediate crushing and coarse crushing work for all kinds of mining,rock etc materials which the compressive strength is under 320Mpa.

PF1010 impact crusher Rock Crushing Equipment working principle

PF1010 impact crusher Rock Crushing Equipment materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush.



Application	Advantage
mining	Flexible application and good adaptability.
metallurgy industry	Easy maintenance and reliable operation
building material	High reduction ratio and crushing efficiency
ceramic industry	Mobile crushing, conveying and screening.
chemical industry	Impact plate with a special shape
basic construction	Low noise, less dust


PF1010 impact crusher Rock Crushing Equipment parts

Impact plate frame is used Q235A steel its effect is fixed counterattack plate hammer, 2 it is to link adjustment device

plate hammer of impact crusher is used high manganese steel,ZMGn13 , used to protect shell, high hardness, durable.

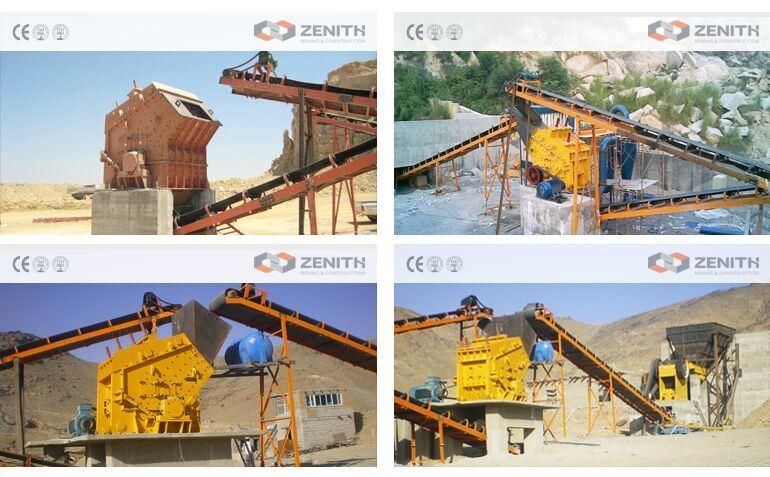

construction PF1010 impact crusher Rock Crushing Equipment
whitelai stone crusher plant
1. jaw crusher : PE-600X900 jaw crusher   feed size:500  motor:75kw
2. impact crusher: PF-1010   imact crusher: feed size:350mm motor:132kw
3. vibrating screen: 3yk1854  Deck: 3

PF1010 impact crusher Rock Crushing Equipment parameters:


Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PF1010	Φ1000×1050	400×1080	350	50-80	4-75	Y280S-4/75	2455×2086×2800
PF1210	Φ1250×1050	400×1080	350	60-120	6-110	Y315L1-6/110	2590×2050×2810
PF1214	Φ1250×1400	400×1430	350	80-160	6-132	Y315L2-6/132	2590×2400×2810
PF1315	Φ1300×1500	860×1520	350	120-260	6-200	Y355M3-6/200	2930×2760×3050
