• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

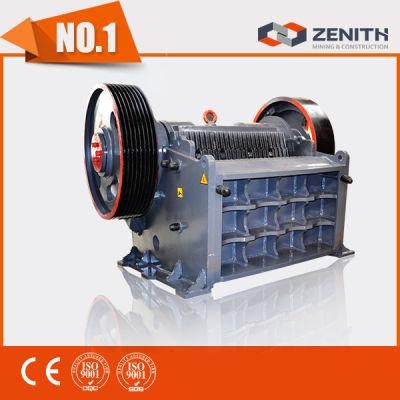

200tph China Factory Wholesale Stone Jaw Crusher for Mining






Introduction of Stone Jaw Crusher for Mining

Stone Jaw Crusher for Mining is one of the most popular stone crushing machines used in mining industry and it is ideally suitable for both primary and secondary crushing. PEW series single toggle jaw crusher has the features of great crushing ratio and uniform sizes. It can be used to crush materials with compressive resistance less than 320 MPA. It is widely used in various industries, such as mining, smelting, road and railway construction, chemical industry, etc. PEW jaw crusher is used for primary crushing and secondary crushing.The maximum compression strength of materials to be crushed is 320MPA. Our design and production are of high position both at home and abroad.

Stone Jaw Crusher for Mining working principle:

The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down;
The angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target;
When the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger; the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring; and then the crushed materials are discharged from the lower outlet of the crushing cavity..


Stone Jaw Crusher for Mining features:

1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.

Stone Jaw Crusher for Mining parameters:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	210	8-185	Y355L1-8/185	4140×2660×3560
