• Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

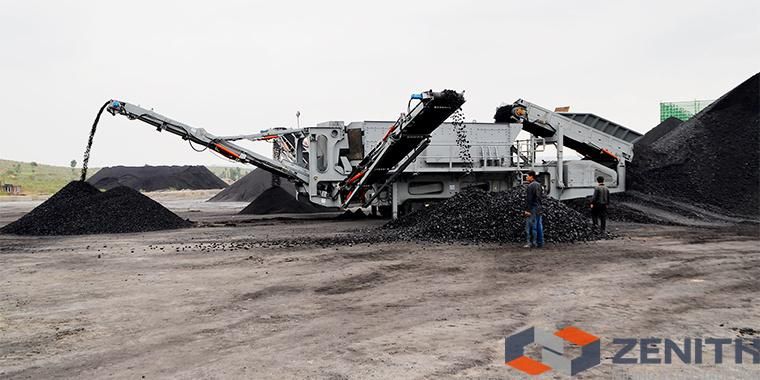

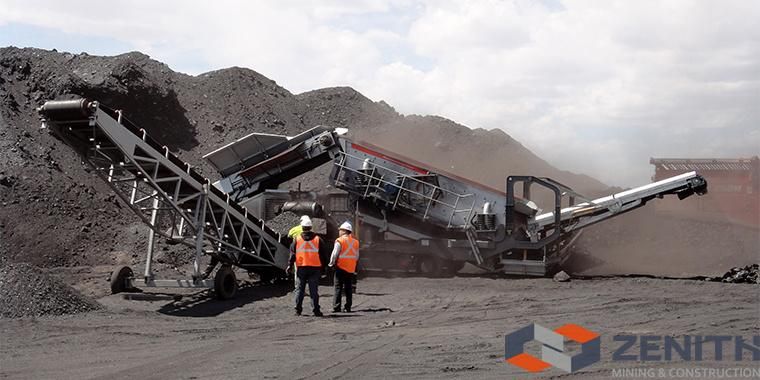

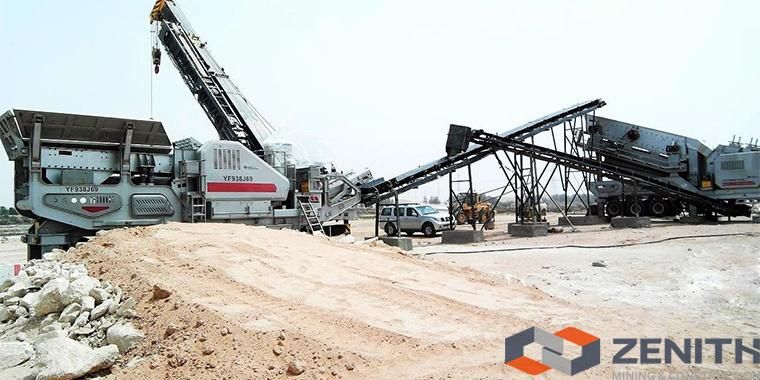

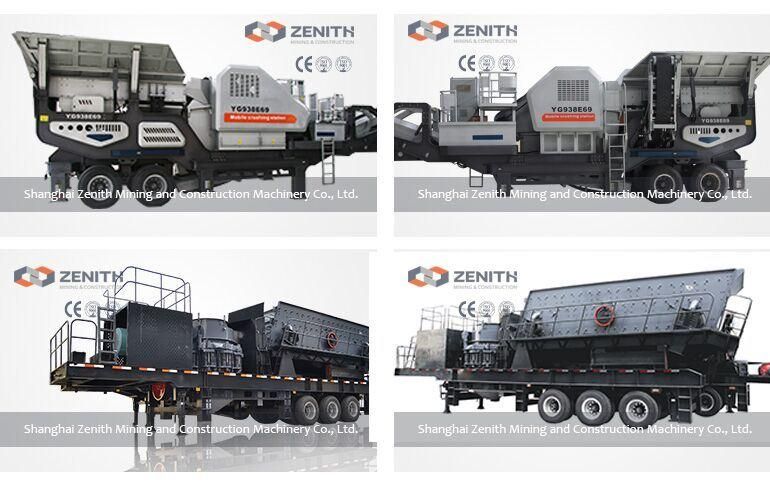

Track mobile crusher, Vibrating Screener, vibrating mounted sand screen machine introduction:

The vibrating mounted sand screen machine trajectory movement of the circular elliptical. It is a multi-layer, high-efficiency new type vibrating screen designed specifically for quarry screening stones. Widely used in mining, coal, smelting, building materials, refractories, light industry, chemical and other industries of product classification.



vibrating mounted sand screen machine Working Principle:

vibrating mounted sand screen machine produced by the Nile mainly consists of a screen box, a screen, a vibrator, a vibration absorber spring device, a chassis and so on. The vibrator is installed on the side plate of the screen box, and the motor rotates through the triangle belt to produce the centrifugal inertial force and force the vibration of the screen box. The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter with high strength bolts or rivets of ring groove. The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.

Characteristics of vibrating mounted sand screen machine

1.Flexibility;
2.Lower freight cost;
3.Direct and efficient operation;
4.Easy to adapt and flexible to collocate;
5.Reliable performance and convenient maintenance.

vibrating mounted sand screen machine parameters:


Parameter model	Transport length (mm)	Transport width (mm)	Transport height (mm)	Max. height (mm)	Max. width (mm)	Conveyor height (mm)	Total weight (ton)
Y3S1548C900	12500	2550	4300	6400	2800	4000	43
Y3S1848C36	12500	2800	4500	6700	3000	4000	47
Y3S1860C51	14000	2800	4500	6700	3000	4200	53
Y3S2160C220	14000	3000	4500	6700	3200	4200	48

Configuration:

Parameter model	Screen model	Cone crusher model	Conveyor model under screen	Capacity (t/h)	Power (kw)
Y3S1548C900	3YK1548	PYB900	B500X7M	50-200	75
Y3S1848C36	3YK1848	S36	B650X7M	70-300	99-134
Y3S1860C51	3YK1860	S51	B650X8M	120-400	212.5-220.5
Y3S2160C220	3YK2160	HP-220	B800X8M	140-450	257.5-264.5
