• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Table Tilting Vertically：0-85 Degree Easy for Materials Loading
• Table Rotation Horizontally：0-360 Degree Stopped Any Postion
• Cut Length：3200mm
• Max. Cut Thick：170mm
• Cut Width：2000mm
• Blade Tilting Angle Cut Mitered：0-45 Degree for Miter Cut
• Spindle Motor：15kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Transport Package：Plastic Packing
• Specification：Dimention (L*W*H): 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Table Tilting Vertically 0-85 Degree Easy for Materials Loading Table Rotation Horizontally 0-360 Degree Stopped Any Postion Cut Length 3200mm Max. Cut Thick 170mm Cut Width 2000mm Blade Tilting Angle Cut Mitered 0-45 Degree for Miter Cut Spindle Motor 15kw 20HP Repeat Cutting 99 Repeat Cutting by Program Transport Package Plastic Packing Specification Dimention (L*W*H): 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

Monoboock Granite Bridge Saw Stone CNC Machine with Miter Cuts
Machine model: XZQQ625A
1) The most reliable and efficient granite bridge saw/marble bridge saw to maximize your stone production.
Are you looking for a reliable granite bridge saw/marble bridge saw? If yes, product XZQQ625A is preferable. It is  made with US standard full of options including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc. Hot sales in market.


2) Granite bridge saw/marble bridge saw made with full functions:

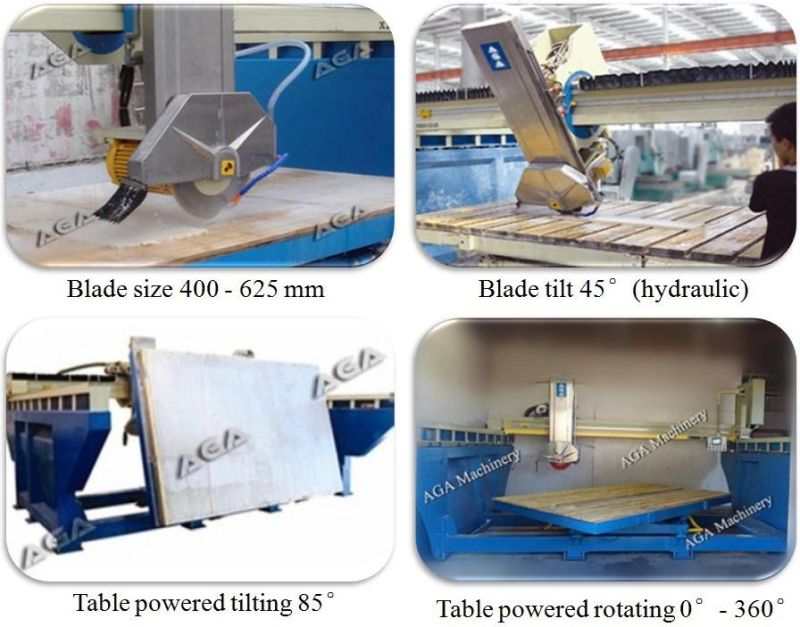

1) Machine automatic blade tilting provides 45° for miter cut very excellent performance in cutting and fabricating grantie marble stones.

2)  Main structures of the granite bridge saw/mabrle cutting machine are made of very strong cast iron and stainless steel for protection.

3)  Machine table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.

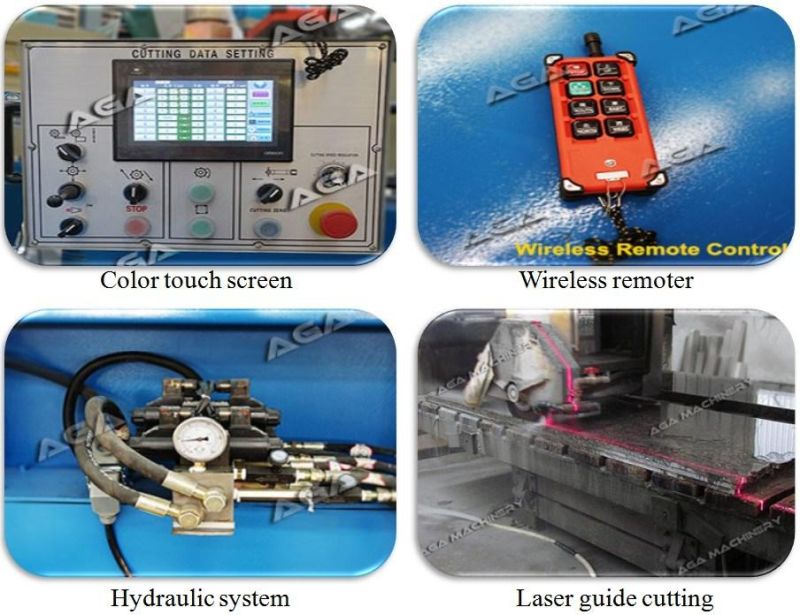

4) This granite cutting machine/marble cutting machine is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data.

5) Wireless remote provides easy control of the saw making its users very friendly.

6) Besides, stone cutting is guided by laser sensor which shows precision cutting position.


Granite bridge saw/marble bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs



FAQ:
1) Payment:
T/T in advance, 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



AGA Machinery:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.

Key words:
Grantie bridge saw, stone bridge saw, stone cutting machine, granite saw, granite machine, slab cutting machine, bridge cutting machine, granite sawing machine, stone sawing machine, marble bridge saw, quartz bridge saw, tile cutter, cnc machine, marble cutting machine, granite cutting machine, cnc cutting machine, etc.

If you have any questions please feel free to inform us, we're more than happy to serve you!
