• Model NO.：FHRC-230,460-4
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Diameter of Blade：Φ500mm
• Max Processing Diameter：Φ230mm,4PCS;Φ460mm,2PCS
• Max Cutting Length：200-1500mm
• Main Motor：11*2kw
• Gross Motor：29.5kw
• Outline Dimension：3600*2000*3200mm
• Water Consumption：6m3,H
• Gross Weight：5000kg
• Head Qty：4 Heads
• Use for：Processing Baluster,Railing, Cylinder
• Transport Package：Load in a 20 Feet Container
• Specification：3600*2000*3200mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. FHRC-230/460-4 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Diameter of Blade Φ500mm Max Processing Diameter Φ230mm/4PCS;Φ460mm/2PCS Max Cutting Length 200-1500mm Main Motor 11*2kw Gross Motor 29.5kw Outline Dimension 3600*2000*3200mm Water Consumption 6m3/H Gross Weight 5000kg Head Qty 4 Heads Use for Processing Baluster/Railing, Cylinder Transport Package Load in a 20 Feet Container Specification 3600*2000*3200mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Stone Balustrade Cutting Machine for Marble and Granite






Product Description

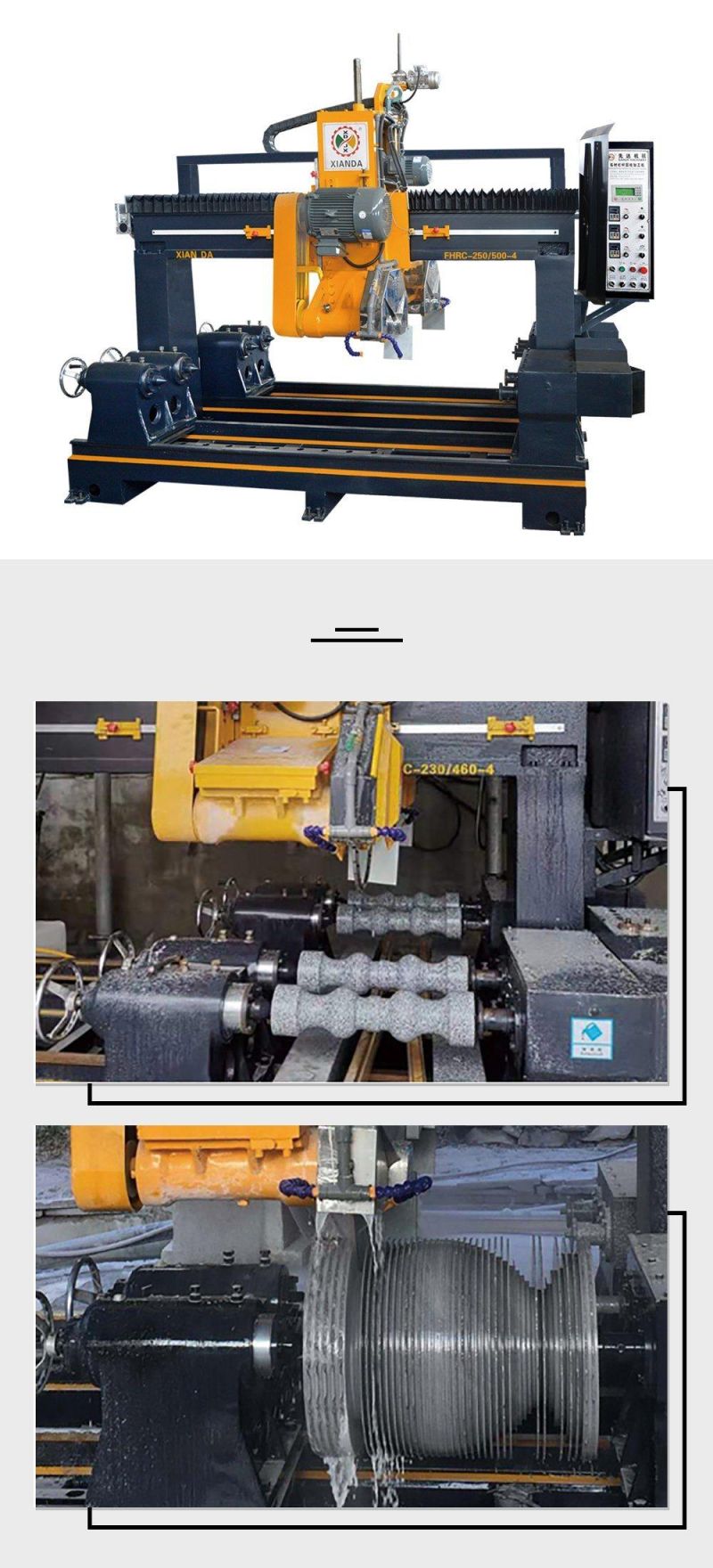

FHRC-230/460-4 marble granite handrail/column/Balustrade Cutting Machine adopts PLC control, the use of profiling probe devices, the probe automatically track curved (straight) line template, template profiling, both of blade holder in a whole block, moving in the oil-immersed cross beam, and adopt screw drive lifting, screw have a long life, horizontal, vertical moving steady, smooth cutting, high efficiency, while the use of oilimmersed gearbox gear structure, better gear and turbine housing to protect the process ideal for different specifications of cylinder, railings, flower pots and other special-shaped ball and stone products.

Technical Parameter


Parameter	Unit	FHRC-230/460-4
Blade Diameter	mm	φ500
Max Processing Diameter	mm	φ230/4pcs ; φ460/2pcs
Cutting Length	mm	200-1500
Main Motor	kw	11*2
Gross Motor	kw	29.5
Outline Dimension	mm	3600*2000*3200
Gross Weight	kg	5000
Water Consumption	m3/h	6

Xianda Machinery

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.




Exhibition

Our Service



We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.


32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.

FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.

Our machine will be strictly inspected.

We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.



6. Call Me Now





Web:         chinaxianda.en.made-in-china.com

Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
