• Model NO.：PFW series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PFW series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 80sets/Month

Product Description

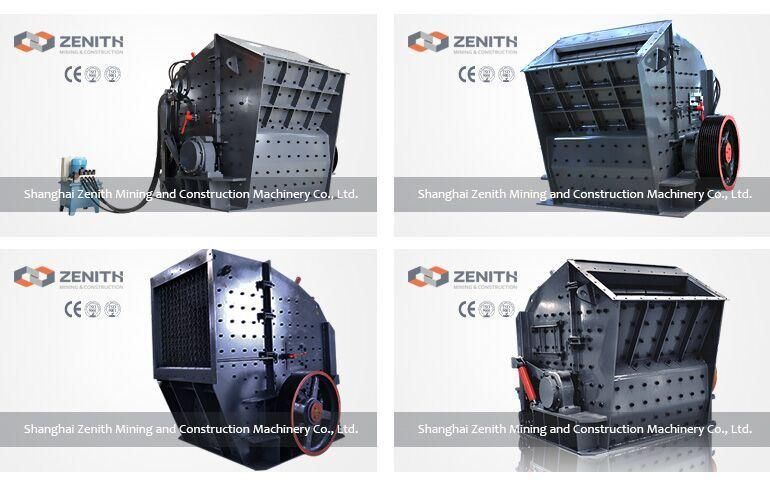

Good technology low investment stone impact crusher with 50-500tph

stone impact crusher introduction:

stone impact crusher are the late development of impact crusher based on ZENITH's 20 years experience and leading technology in the crushing industry.stone impact crusher features heavy duty rotor design, unique hammer locking system, interchangeable wearing parts, and easy maintenance. This series impact crusher provides customers low capital cost solution, outstanding performance, good cubical shape, lowest operation cost per ton, and wide materials application.

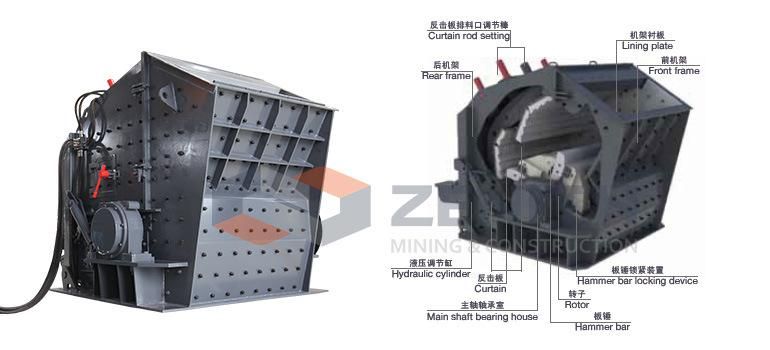

stone impact crusher working principle

stone impact crusher uses plate hammer on the rapidly rotating rotor to generate high-speed impact to crush the materials in the crushing cavity, and casts the crushed materials along tangential direction to impact plate at the other end of the crushing cavity. The materials are crushed again, and then, they return to the plate hammer to undergo the process above repeatedly. The materials are bumping with each other when being sent between the plate hammer and the impact plate. The materials become cracked, loose and then comminuted by knocking by the plate hammer, impact with impact plate and bump between materials. The materials with grain size smaller than the gap between impact plate and plate hammer will be discharged. If you are interested in the china stone crusher by us, please call us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. We will provide quality service to you!


stone impact crusher features:

1. Hydraulic system.
2. Three-curtain cavity design.
3. Heavy duty rotor design.
4. Unique hammer locking device.
5. Interchangeable liners.
6. Flexible application in primary and secondary crushing.
7. Easy operation and simple maintenance.

stone impact crusher After sale service:

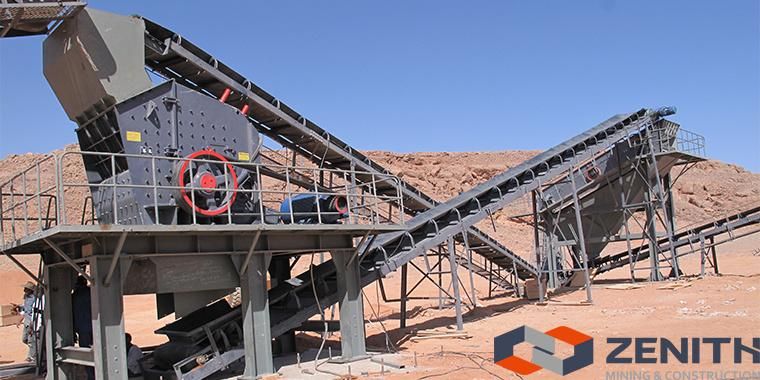

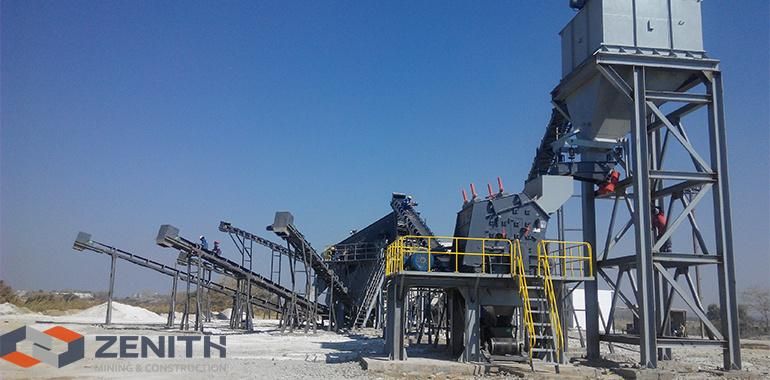

We have a effective service team, not only supplying site planning, flow chart,foundation drawing design and technical training, but also sending technician to guide equipment installation and commissioning on your jobsite.



stone impact crusher technical data:

Model	Spec.	Feeding size (mm)	Max. feeding size (mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overall dimension (mm)
PFW 1210II	Φ 1150× 960	1100× 1030	400	90-160	90-110	17.0	2400× 1870× 2550
PFW 1214II	Φ 1150× 1400	1100× 1430	500	130-200	132-160	22.0	2400× 2310× 2550
PFW 1315II	Φ 1300× 1500	1200× 1530	600	180-320	160-200	29.0	2700× 2570× 2800
PFW 1318II	Φ 1300× 1800	1200× 1830	700	240-400	200-250	34.0	2700× 2870× 2800

Three-curtain cavity hydraulic impact crusher:

Model	Spec.	Feed opening size (mm)	Max. feeding size (mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overall dimension (mm)
PFW 1210III	Φ 1150× 960	570× 990	250	70-120	90-110	15.0	2550× 1870× 2100
PFW 1214III	Φ 1150× 1400	570× 1430	250	90-170	132-160	19.0	2550× 2310× 2100
PFW 1315III	Φ 1300× 1500	625× 1530	300	180-270	160-200	25.0	2960× 2570× 2380
PFW 1318III	Φ 1300× 1800	625× 1830	300	220-300	200-250	30.0	2960× 2870× 2380
