• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 80sets/Month

Product Description

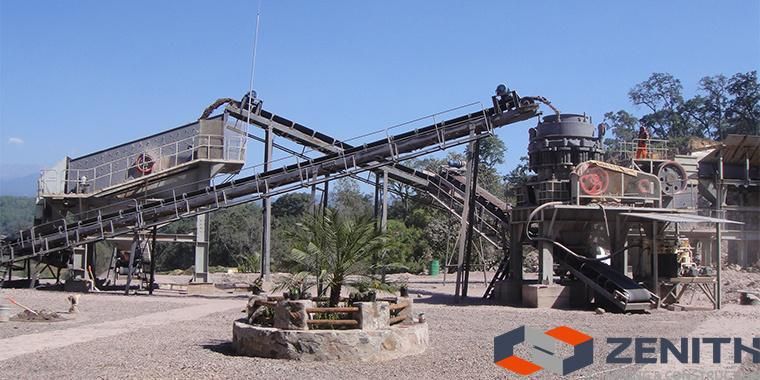

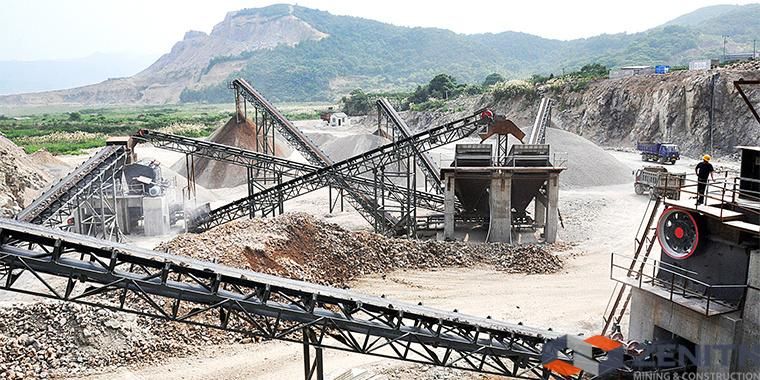

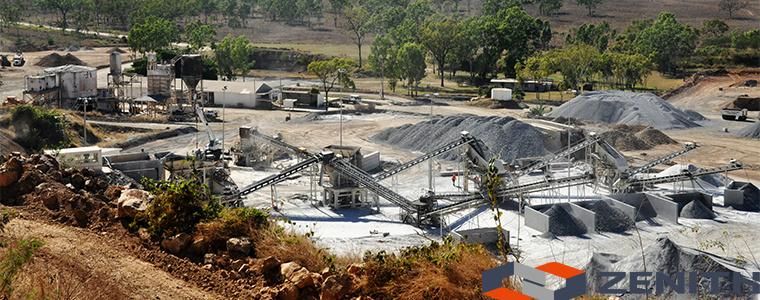

200tph ballast crushing / crusher line

ballast crushing / crusher line introduction:

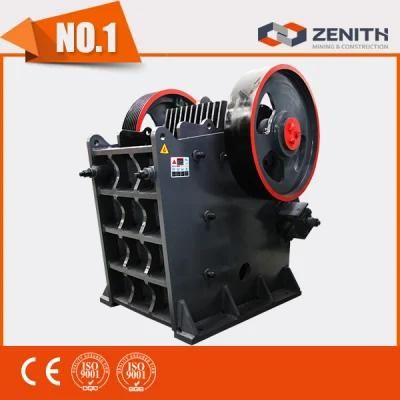

ballast crushing / crusher line is easy to install, operate and maintain. As per feedback, our experts will make continuous improvements on our products to meet customers' changing needs. Every feature of concrete jaw crusher has been carefully designed to provide superior quality and performance. It is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc. Zentih has competive jaw crusher price for you.

ballast crushing / crusher line Advantages:

1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4. Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.

ballast crushing / crusher line work principle:

The working principle of ballast crushing / crusher line is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, ballast crushing / crusher line is easy to maintain and repair. These features promote its popularity to a great extant.

ballast crushing / crusher line application

ballast crushing / crusher line is a new type of crusher designed by our company which is following the traditional jaw crusher. The bearing of ballast crushing / crusher line using integral cast steel structure, improve the stability of the whole, More to meet the automated production needs of customers.

[Feed size]: 150-930mm
[Production capacity]: 45-800T / h
[Applications]: Ore crushing, construction aggregate production, construction waste crushing, water conservancy and hydropower engineering, highway, railway, bridge construction and other industries.
[Applicable Materials]: Granite, marble, basalt, limestone, quartz stone, river gravel, iron ore, copper ore, etc.

ballast crushing / crusher line Guarantee and After-sales Service:

1.one years guarantee for main machine, excluding wearing parts
2.Experienced t1echnicians guidance is available
3.24 hours technical support by e-mail, by phone.
4.Use-friendly English user manual
5.Engineers could be dispatched to the quarry site, if requested by customer.

ballast crushing / crusher line technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
