• Model NO.：PFW 1210II, PFW 1214II, PFW 1315II, PFW 1318II
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Life
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PFW 1210II, PFW 1214II, PFW 1315II, PFW 1318II Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Life Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

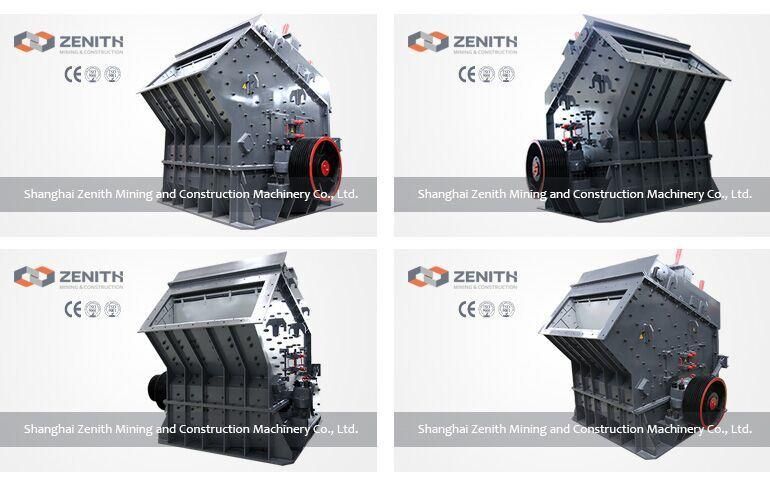

Zenith PF1214 Gravel Impact Crusher for Sale

PF1214 Gravel Impact Crusher introduction:

Impact Crusher
Processing capacity: 30-800t/h
Feed opening: 400×730-1260×2040mm
Feeding size: 300-700mm
Applied material: limestone, granite, coal, slag, clay.
The Handling Materials and Application of Impact Crusher:
This seriesof   impact crusher is able to crush coarse, medium and fine materials such as granite, limestone and concrete whose feeding granularity does not exceed 500mm and compression strength does not exceed 350MPa in many industries such as ore crushing, railway, highway, energy, cement, chemistry and constriction. The size of the discharging granularity is adjustable, and the crushing specifications are diverse.

PF1214 Gravel Impact Crusher application

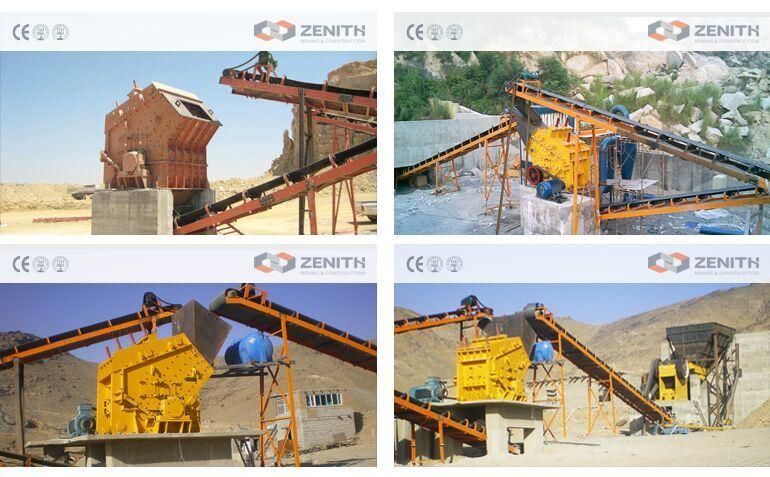

The PF1214 Gravel Impact Crusher is mainly used for metallurgy, mining, cement, chemicals, refractory and ceramic industries sector. In highway construction, water conservancy projects, building rubble and sand processing, the crusher machine is also widely used.

PF1214 Gravel Impact Crusher Main Features and Benefits

1) Heavy duty rotor design
2) Unique hammer locking device
3) Interchangeable liners
4) Flexible application in primary and secondary crushing
5) Easy operation and simple maintenance.

PF1214 Gravel Impact Crusher parameters:

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214III	1150×1400	570×1430	250	90-170	4-132	Y315M-4/132	2550×2310×2100
PFW1315III	1300×1500	625×1530	300	180-270	4-160	Y315L1-4/160	2960×2570×2380
PFW1318III	1300×1800	625×1830	300	220-300	4-200	Y315L2-4/200	2960×2870×2380
PFW1415III	1400×1500	800×1530	350	280-350	4-200	Y315L2-4/200	3120×2650×2660
