• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Blade Size：625mm
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：170mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Mortor：15kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Weight：7200 Kg
• Transport Package：Plastic Packing
• Specification：Dimention: 6M*5M*2.6M
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：50sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Blade Size 625mm Cut Length 3200mm Cut Width 2000mm Cut Thick 170mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cut Spindle Mortor 15kw 20HP Repeat Cutting 99 Repeat Cutting by Program Weight 7200 Kg Transport Package Plastic Packing Specification Dimention: 6M*5M*2.6M Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 50sets/Month

Product Description

Monoblock Automatic CNC Machine Stone Bridge Saw with 45 Miter Cut Cutting Granite Marble Quartz
Model:XZQQ625A 1) The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz.
It is the most reliable and efficient granite bridge saw in the market at the right price.


2) Granite bridge saw is robust U.S standard made with full options, including strong stell frame, pendant control panel, color touch screen, wireless remote, laser guide, tilting blade, tilting and rotation table, hydraulic pump, etc.

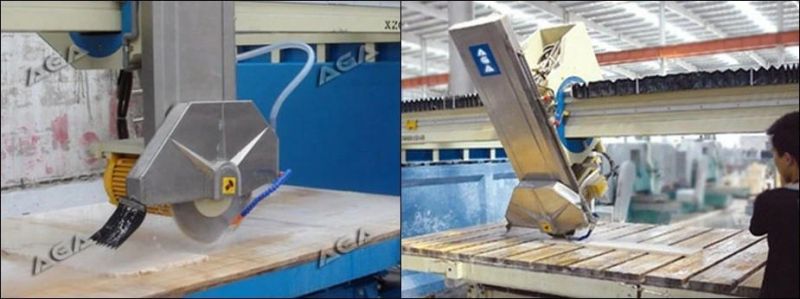

Miter cut: The tilting head provides 0°-45°for miter cut very excellent performance in cutting and fabricating stones.

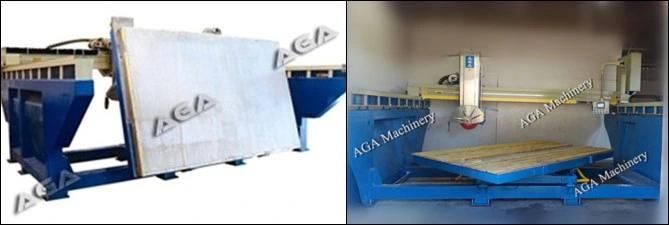

3) Powered table tilting and rotating: Granite bridge saw table tilts 0-85 degree hydraulic for easy load of materials. Machine table also rotates 0°-360° stopping automatically at 45°, 90° and any angle to change the cutting easily.

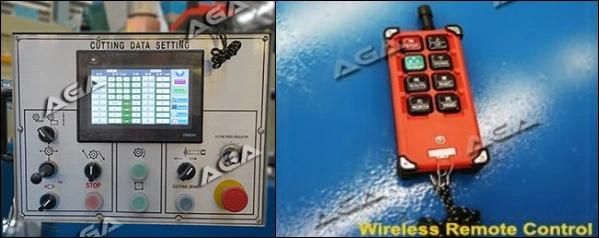

4) Automatic programming: The Color Display Touch Screen provides easy operation for all functions. Computerized cut optimization and sizes management. Besides, wireless remote provides easy control of the bridge saw.

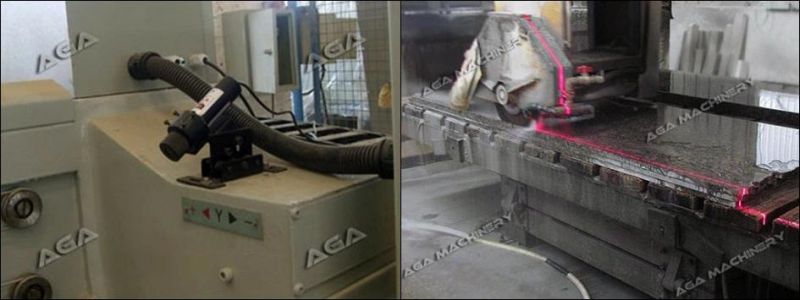

5) Laser guide: Laser guide shows precision cutting position in +/-0.2mm.



Granite bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

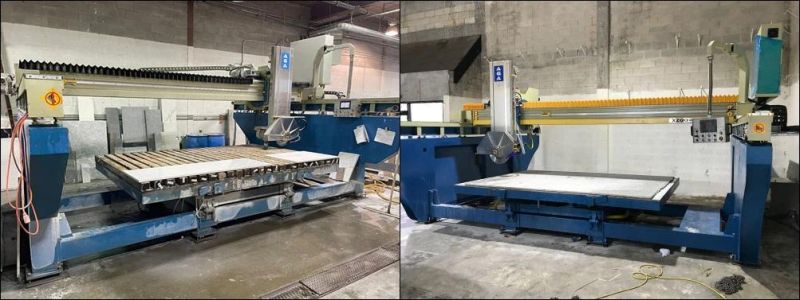

Bridge saws working in customers' shops:


Guarantee & After Sale Service1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


FAQ:1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Key words:
Granite bridge saw, grantie saw, stone bridge saw, stone saw, marble bridge saw, marble saw, stone sawing machine, stone cutting machine, granite cutting machine, granite sawing machine, marble cutting machine, marble bridge saw, marble saw, quartz cutting amchine, cnc machine, cnc cutting machine.
