• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：170mm
• Table Size(L*W)：3200*2000mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stop at Any Position
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Mortor：15kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Transport Package：Plastic Water-Proof Package
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200sets,Mon

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Cut Length 3200mm Cut Width 2000mm Cut Thick 170mm Table Size(L*W) 3200*2000mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stop at Any Position Blade Tilting 0-45 Degree for Miter Cut Spindle Mortor 15kw 20HP Repeat Cutting 99 Repeat Cutting by Program Transport Package Plastic Water-Proof Package Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200sets/Mon

Product Description

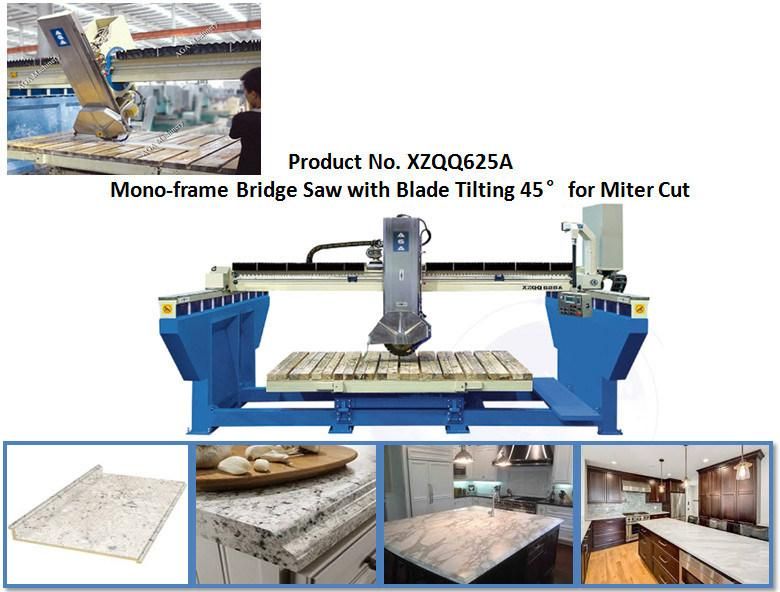

Reliable Auto CNC Bridge Saw with 45 Miter Cut for Granite Marble Quartz Stones Sawing
Machine model: XZQQ625A

Model XZQQ625A is the most robust cnc bridge saw for cutting granite, marble, quartz and other stones. Full options provides excellent performance in cutting and fabricating slabs, tiles, counter tops, bench tops, vanity tops, etc. We sent it qutie a lot to the granite marble fabricators, customers paid and they got the machines and very happy. Believe it will also return you much more in your stone business.

Granite bridge saw/Marble cutting machine specifications:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Granite bridge saw/Marble cutting machine introduction:

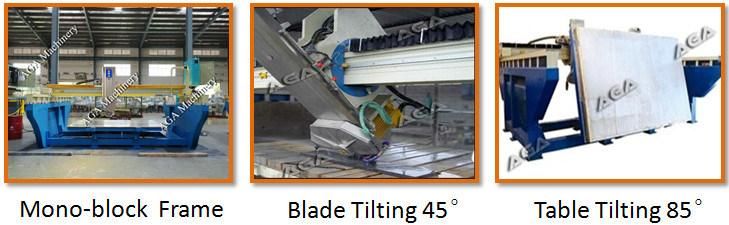

1) The tilting head of this bridge saw provides 0°-45°for miter cut very excellent performance in cutting and fabricating stones.

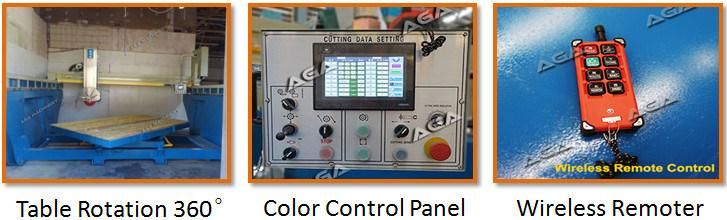

2) Powered table tilts 0-85 degree hydraulic for easy load of material. It provides excellent performance in rotating 0°-360° , it can stop automatically at 45°, 90° and any angle for changing cutting position.

3) Bridge saw automated programming. Electric system is very simple and easy to operate.

4) All functions are operated on the color touch screen control panel.

5) Wireless remote provides easy control of the saw making its users very friendly.

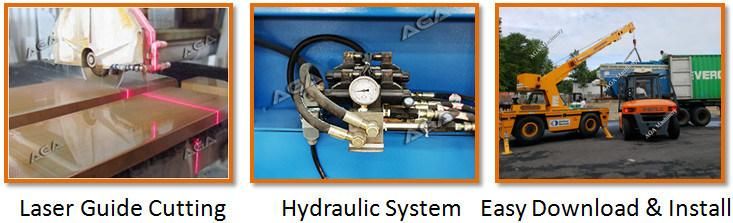

6)Laser guide shows precision cutting every time in +/-0.2mm making beautiful slabs, tiles, counter tops, etc.

7) Automatic water control saving every drop.

 8) Main structures of the granite bridge saw are made of very strong cast iron and stainless steel for protection.


Monoblcok bridge saw shipped to customers throughout the world:


FAQ:
1) Payment:
T/T in advance, 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, stone saw, slab saw, granite saw, slab cutting, granite cutting, slab sawing, slab sizing, tile cutter, cnc machine, cnc cutting machine,  etc.


Your dream machine is closer than you think.
