• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Max. Blade Size：625mm
• Tilting Table：0-85 Degree Easy for Materials Loading
• Rotation Table：0-360 Degree Stopped Any Postion
• Tilting Blade：0-45 Degree for Miter Cut
• Power of Spindle Mortor：15kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Transport Package：Wooden Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Max. Blade Size 625mm Tilting Table 0-85 Degree Easy for Materials Loading Rotation Table 0-360 Degree Stopped Any Postion Tilting Blade 0-45 Degree for Miter Cut Power of Spindle Mortor 15kw 20HP Repeat Cutting 99 Repeat Cutting by Program Transport Package Wooden Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200sets/Month

Product Description

Premium Auto Monoblock CNC Machine Granite Bridge Saw Cutting Countertops
Product No.XZQQ625A

Auto granite bridge saw XZQQ625A is monoblock made with full functions, including strong steel frame, pendant control panel, color touch screen, wireless remote, laser guide, tilting blade, tilting and rotation table, hydraulic pump, etc.
This bridge saw is controlled by microcomputer for cutting granite, marble, quartz and other engineered stones. Robust preferable for marble granite fabricators to cut slabs, tiles, counter tops, vanity tops, bench tops, etc.

cnc machine granite bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

granite bridge saw introdution:
1) Miter cut:

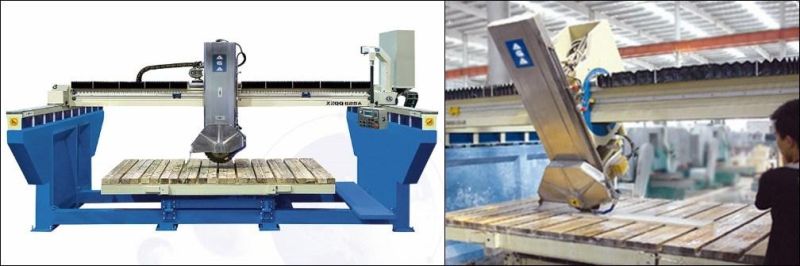

Granite bridge saw head tilts 45 degree for miter cut very excellent performance in cutting countertops.

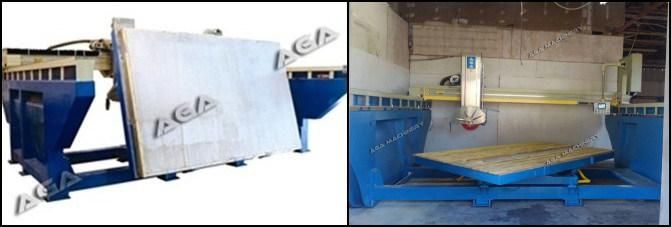

Granite bridge saw table roates 0-360 degree stopped at any angle to change cutting position easily and it tilts 0-85 degree for easy load of materails.

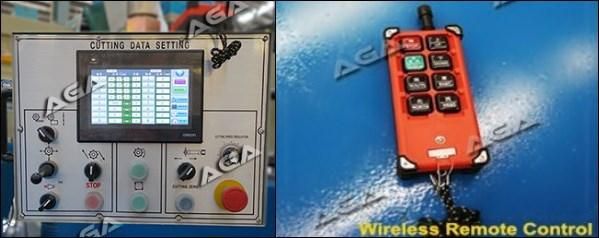

The granite bridge saw is computer control and with color Display Touch Screen. All functions are operated on the color touch screen making its user very friendly. Besides, wireless remote provides easy control of the saw.


Guarantee & After Sale Service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, slab saw, stone saw, granite saw, slab sawing, slab cutting, granite cutting, bridge saw, etc.

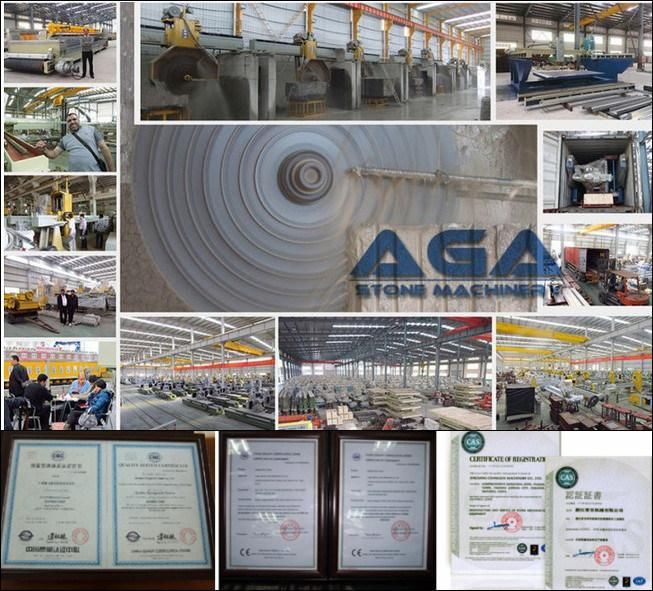

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A, Canada, Europe, Mid East, Egypt, India, etc.
AGA understand that machinery creats value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers obtain the best return on the investment. We care about customers  because by choosing us you giving us a chance to make your machine more productive that also makes your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
