• Model NO.：WKQ-1200
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Blade Diameter：Φ300-Φ450
• Max Processing Size：3200*2000**4500mm
• Dimension of Worktable：3200*2000mm
• Workable Tilting Degree：0-85°
• Worktable Rotation Degree(Optional)：0-90°
• Main Motor：28kw
• Gross Motor：22kw
• Water Consumption：4m3,H
• Outline Dimension：6000*4800*4400mm
• Gross Weight：6850
• Transport Package：Load in a 20 Feet Container
• Specification：6000*4800*2900mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. WKQ-1200 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Blade Diameter Φ300-Φ450 Max Processing Size 3200*2000**4500mm Dimension of Worktable 3200*2000mm Workable Tilting Degree 0-85° Worktable Rotation Degree(Optional) 0-90° Main Motor 28kw Gross Motor 22kw Water Consumption 4m3/H Outline Dimension 6000*4800*4400mm Gross Weight 6850 Transport Package Load in a 20 Feet Container Specification 6000*4800*2900mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

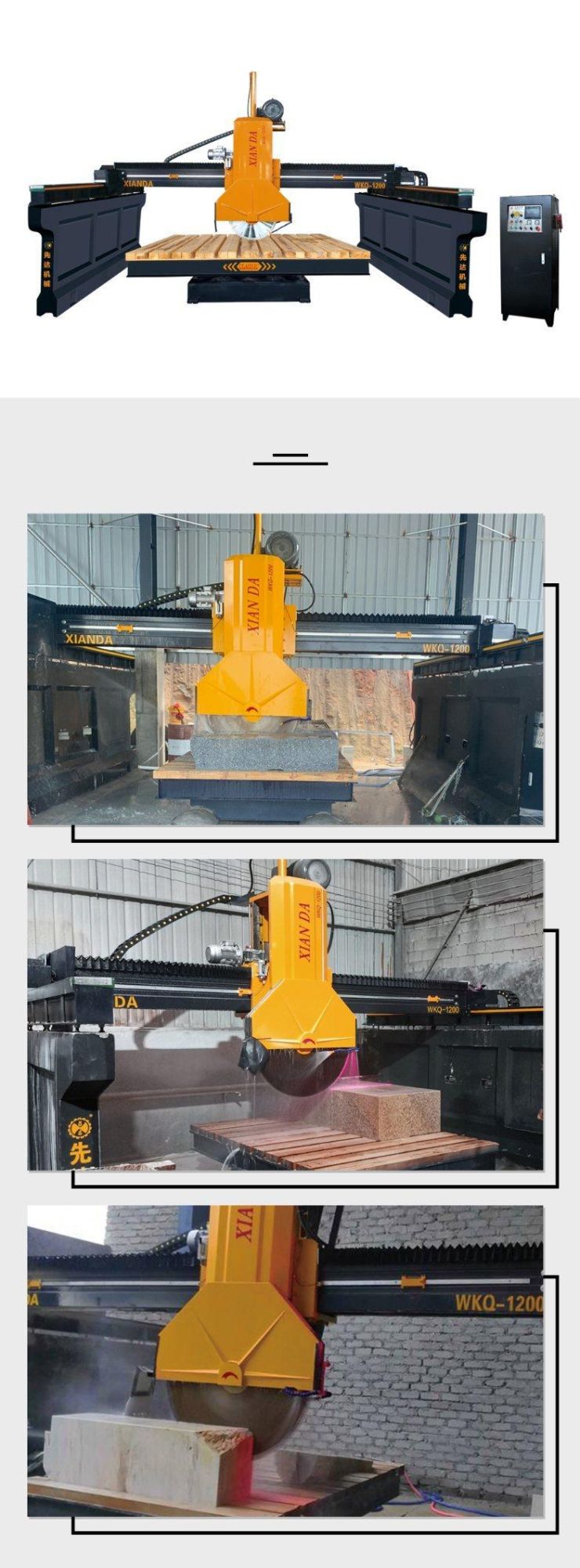

WKQ-1200 Middle block stone cutting machine & stone machine & bridge saw



Product Description

Middle block stone cutting machine & stone machine & bridge saw, which be designed by reasonable structure, adopting PLC system and Human-machine interface, togethering Chinese & English double operation language and infrared device, equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through slide plate, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials. Thus the whole machine is featured as high cutting efficiency,high stability,esay-operating, specially cutting shaped stone products,tombstone and curb stone.

WKQ-1200 Bridge Saw Parameter

Parameter	WKQ-1200
Max blade diameter	1200mm
Max lifting travel	760mm
worktable size	3000*2000mm
worktable rotating degree	0-90°
water consumption	6m³/h
main motor	22kw
gross motor	29kw
outline dimension	6400*4800*4400mm
gross weight	6800kg

Keyword: stone cutting machine, bridge saw, stone machinery, stone cutter.

Xianda Machinery

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition


Our After sale Service

When you buy the machine , we can also provide professional machine using trainning.

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
Thanks for your attention for above information.

If you have any problem,just conact our sales department,customer service department,etc at any time.
