• Model NO.：pew series
• Application：Construction, Mineral Industry, Stone Industry
• Drive：Electric
• Crushing Style：Grinding & Impact
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Coarse Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：10000 Set,Year
• Package size per unit product：300.00cm * 150.00cm * 150.00cm
• Gross weight per unit product：5000.000kg

Basic Info.

Model NO. pew series Application Construction, Mineral Industry, Stone Industry Drive Electric Crushing Style Grinding & Impact Compressive Strength (For Crushing) >300MPA Crushing Degree Coarse Crusher Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 10000 Set/Year

Packaging & Delivery

Package size per unit product 300.00cm * 150.00cm * 150.00cm Gross weight per unit product 5000.000kg

Product Description

Hot sale Gold Ore mini stone crusher machin price

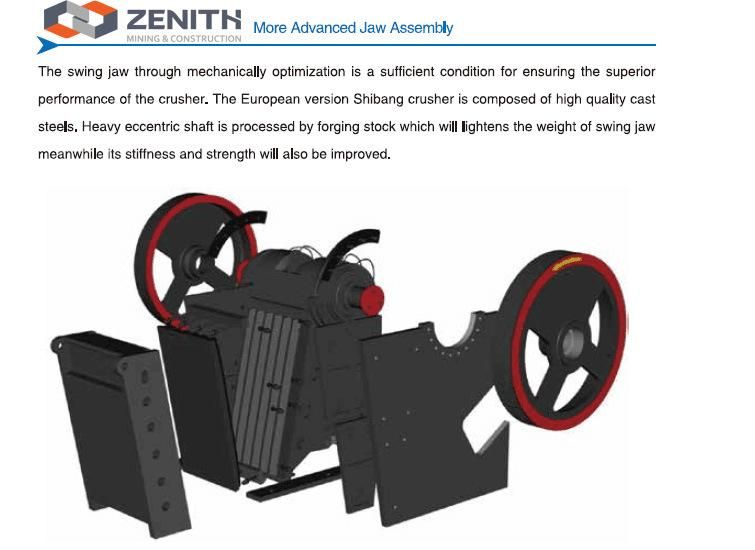

Hot sale Gold Ore mini stone crusher machin price is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.

Hot sale Gold Ore mini stone crusher machin price Application:

Hot sale Gold Ore mini stone crusher machin price whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa. This machine is suitable for mines,building materials,highway,railway,water conservancy and chemical industry,etc.


Hot sale Gold Ore mini stone crusher machin price Performance advantages

1, unique structure of jaw head, seal guarantee, extend working life of the bearing.
2, integral casting of the bearing base, adopt the new assembly process to perfectly match with the frame , increase the radial intensity.
3, adopting deep cavity "V" type structure, to greaten the feeding size (compared with ordinary jaw crusher) and increase the capacity.
4, adjust the structure of the discharging opening,which is convenient, quick, safe
5, tension bar protection device, more safer
6, increase the bearing capacity of the jaw head, make the machine more efficient, safe, extend the working life of the bearing and main shaft.
7, new oil road design, matched with the oil pump, more simple and efficient on the operation and maintainance.
8, unique flywheel design, effectively reduce the vibration, running more smoothly.

Hot sale Gold Ore mini stone crusher machin price Working principle

The motor-driven belt and pulley, the up and down movement of the movable jaw by the eccentric shaft when the movable jaw rises, the angle between toggle plate and moving jaw becomes larger, thus promoting the moving jaw plate close to the fixed jaw plate, its material is crushed or split pieces to achieve the purpose of crushing; When the movable jaw down, the toggle plate and moving jaw angle between the smaller, movable jaw plate trolley, spring next, to leave the fixed jaw plate, the crushed material is discharged from the crushing chamber mouth. With the continuous rotation of the motor broken motor jaw the periodic motion crushed and excreta material, to achieve mass production



Hot sale Gold Ore mini stone crusher machin price technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	210	8-185	Y355L1-8/185	4140×2660×3560
