Impact Stone Crusher Equipment with Low Price, Impact Stone Crusher (CGF1008)

Chemact (Liaoning) Petrochemicals Ltd.
  • Type:Impact Crusher
  • Application:Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry
  • Drive:Electric
  • Crushing Style:Grinding & Impact
  • Compressive Strength (For Crushing):<300mpa
  • Crushing Degree:Intermediate Crusher

Base Info

  • Model NO.:CGF1008
  • Certification:CE, ISO, GOST, SONCAP, UL, CCC, API
  • Condition:New
  • Color:Iron Grey
  • Power(W):55-75(Kw)
  • Capacity(T/H):55-85
  • Place of Origin:Shanghai, China (Mainland)
  • Brand Name:Chuangshen
  • Model Number:Cgf1008 Impact Crusher
  • Dimension(L*W*H):Negotiable
  • Weight:10184kg
  • Warranty:Mainframe Is One Year (Excluding The Quick Wear PA
  • Transport Package:Standard Packaging
  • Specification:Industrial grade
  • Trademark:chuangshen
  • Origin:Shanghai China
  • Production Capacity:5set,Day

Description

Basic Info.

Model NO. CGF1008 Certification CE, ISO, GOST, SONCAP, UL, CCC, API Condition New Color Iron Grey Power(W) 55-75(Kw) Capacity(T/H) 55-85 Place of Origin Shanghai, China (Mainland) Brand Name Chuangshen Model Number Cgf1008 Impact Crusher Dimension(L*W*H) Negotiable Weight 10184kg Warranty Mainframe Is One Year (Excluding The Quick Wear PA Transport Package Standard Packaging Specification Industrial grade Trademark chuangshen Origin Shanghai China Production Capacity 5set/Day

Product Description

CGF1008 impact crusher equipment with low price,Impact stone crusher



I.CGF Series prophyry Impact crushers, stone pulverizing machine

CGF series impact crushers, stone pulverizing machine are widely applied in metallurgy, building materials, chemical industries. They are ideal for crushing medium hard brittle materials of coarse, secondary and fine crushing stages, such as limestone, dolomite, sandstone, graphite, rock salt, granite and basalt. CGF series impact crusher have high reduction ratio, unequaled output, uniform production size, compact process, simple construction, easy operation and maintenance.

II.CGF prophyry impact crusher, stone pulverizing machine working principle

CGF series impact crushers, stone pulverizing machine are made of main frame, rotor, front blow bar and back blow bar. Each gyrating cycle is formed by V-belt driving rotor through electronic and materials are crushed by high speed impact of flat hammer on gyrating rotor. After that, the materials are crushed again by throwing impact liner and then crushed again from impact plate to flat hammer. This process works again and again until materials are crushed to qualified size. Materials will keep going back and forth between the first and second crusher chamber untill the crushed ore size is less than the gap between flat hammer and blow bar. then, they will discharge through the setting below the machine as final the product.

III.CGF series prophyry impact crusher, stone pulverizing machine design principle

CGF series impact crushers have unique design, no key links, outstanding reliability and focus on safety and low energy consumption. Perfectly design combination of heavy rotor, wear resistant and chamber will not only increase yield and quality but also decrease cost and wear resistant parts consumption. The unique fixed equipment of flat hammer makes more reliability of flat hammer. There is a spring release system in the impact equipment can guarantees safety as an overload protection system(Ex:when an iron ore enter into the chamber accidentally). Larger chamber, bigger feed size and increased rotational inertia of rotor means higher reduction ratio, more output and cubic size products. Flat hammer fixing on the rotor through a set of wedges makes bigger torque tightening. There are many clamp spots between flat hammer and rotor which can eliminate the gap between rotor and flat hammer and decrease the damage rate of flat hammer. Using high quality wear resistant parts such as high chromium cast iron increases the service life of wear parts (such as flat hammer, impact liner, sided liner). Using hydraulic controls to open front and back main frame and adjust setting can simplifiy the exchange of flat hammer and adjustment of discharge size. Safety doors on the two sides of the main frame are used for check, maintenance and exchange of wear parts.

 V.CGF series prophyry impact crusher advantages



(1) CGF use German technology of HSMK. The unique structure of it has reliable and smooth performance, and lower energy consumption.



(2) The perfect combination of the design of heavy rotor, high wear-resistant blow bar, unified integrated liner (main wear areas of liner using the same size so that it can be fully interchangeable) and deep arc-shape crushing chamber increase the production capacity and product quality (sand content exceeds 20%, the shape of product better than traditional types of impact crusher); at the same time improving the utilization of wear parts, reducing production costs.



(3) Front and rear racks can be opened, so maintenance space will be increased, easy for the operation.



(4) High chrome blow bar, the bearing can be selected to be made in china or brand of Japan (NSK or NTN), Germany (FAG).

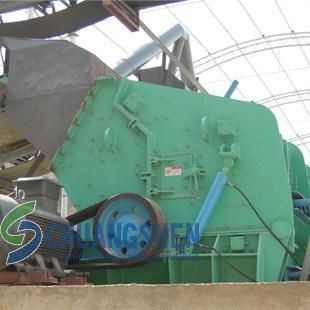

Impact Stone Crusher Equipment with Low Price, Impact Stone Crusher (CGF1008)

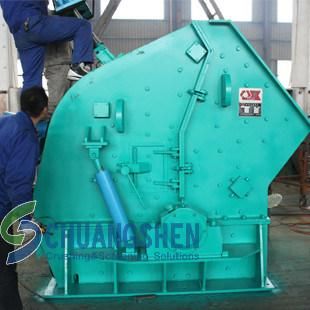

Impact Stone Crusher Equipment with Low Price, Impact Stone Crusher (CGF1008)
