Henglong Infrared Automatic Bridge Marble Granite Cutting Machine
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- Type：Infrared Automatic Bridge Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed

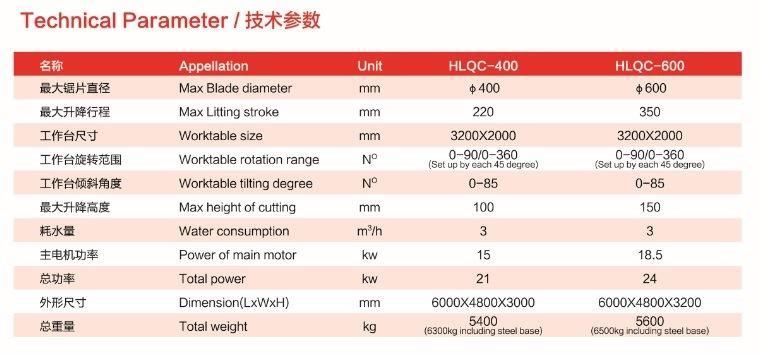

Base Info
- Model NO.：HLQC-600,800
- Certification：SONCAP, ISO, CE
- Max Blade Diameter：600mm
- Max Litting Stroke：350mm
- Worktable Size：3200*2000mm
- Worktable Rotation Range：0-90°,0-360°
- Max Height of Cutting：150mm
- Water Consumption：3 M3,H
- Power of Main Motor：18.5kw
- Total Power：24kw
- Total Weight：5600kg
- Transport Package：Standard Export Packaging
- Specification：6000*4800*3200mm
- HS Code：84641090
- Production Capacity：20sets ,Month
Description
Basic Info.
Model NO. HLQC-600/800 Certification SONCAP, ISO, CE Max Blade Diameter 600mm Max Litting Stroke 350mm Worktable Size 3200*2000mm Worktable Rotation Range 0-90°/0-360° Max Height of Cutting 150mm Water Consumption 3 M3/H Power of Main Motor 18.5kw Total Power 24kw Total Weight 5600kg Transport Package Standard Export Packaging Specification 6000*4800*3200mm HS Code 84641090 Production Capacity 20sets /MonthProduct Description
Product Description
HLQC-600/800 infrared automatic stone bridge cutting machine has two type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equiped through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
