• Model NO.：HQ700
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Weight：7500kg
• Color：Yellow
• Transport Package：Load in Container
• Specification：6*5.7*3.5 m
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：50sets,Month

Basic Info.

Model NO. HQ700 Automation Automatic Cutting Ability High Speed Control PLC Certification ISO, CE Weight 7500kg Color Yellow Transport Package Load in Container Specification 6*5.7*3.5 m Trademark AGA Origin China HS Code 84641010 Production Capacity 50sets/Month

Product Description

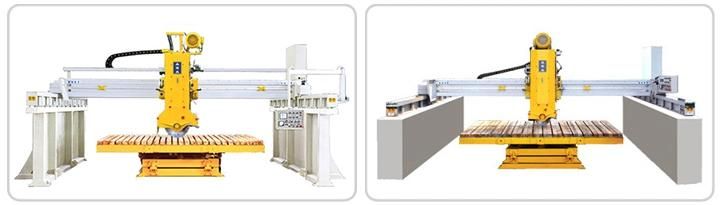

Marble Granite Stone Laser Cutting Machine and Tile Cutter, Bridge Saw (HQ700)


Tile Cutter, Bridge Saw (HQ700) Introduction :
Bridge saw cutting machine for marble granite stones.
It is applicable on cutting and trimming slab, countertop, vanity, steps, etc.
The bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85 for easy load of big slabs and also turns 90/360 degree to change the cutting direction.
This stone machine owns the high precision and easy to operate and other advantages, especially suitable for customers in small plant and always work with moving plant.
Since this stone machine is incorporate on structure, so the cubage is small and easy to transit, and convenient to install and adjust. This kind of bridge saw machine also can save time and cost to build concrete cement base.

Tile Cutter, Bridge Saw (HQ700) Feature :
1. Long bridge structure for cutting big slab.
2. Titling table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X, Y, Z axis ensuring cutting accuracy +/-0.2mm
5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.

Table Detail :
- The worktable can rotate 360 degree which has dispensed the inconvenience of the removal of the big slab. The rotating parts adopt wire cutting machine to guarantee the accuracy of the rotation. And when the worktable rotates 45 degree , it can make 45 degree cutting.
- The removal of the slab is very convenient because the worktable can rotate 0-85 degree.

Panel Board Detail:
- Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross command switch by hand, real time data display on screen.
- Flexible arm and screen, both can rotate to different angle, handles on side of controller make operator more comfortable.

Tile Cutter, Bridge Saw (HQ700) Pictures :

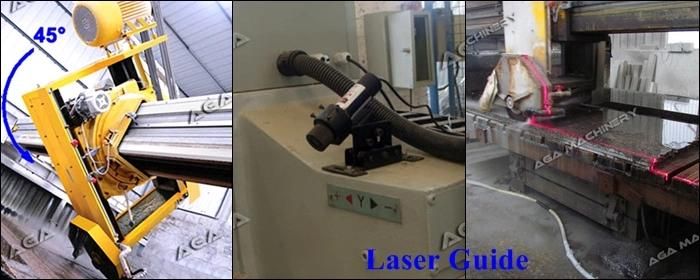

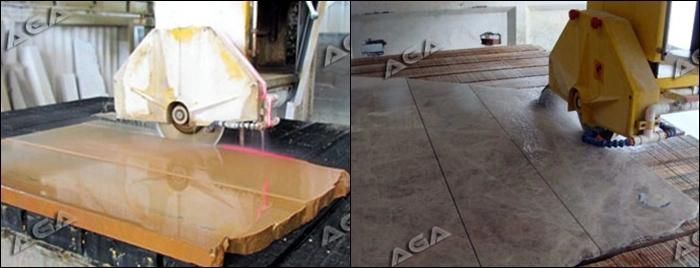

(1) 45 Degree Meter Cut & Laser Guide Sensor For Cutting Guide

(2) Titling Table For Easy Load Of Big Slab & Turns 90/360 Degree To Change The Cutting Direction

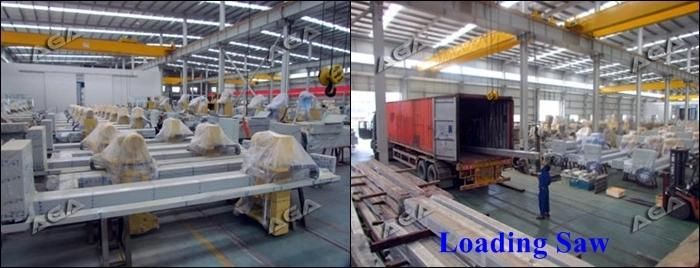

(3) Loading Pictures
Tile Cutter, Bridge Saw (HQ700) Specification:

Model	HQ700
Blade Size	Φ300 - Φ700 mm
Blade Tilting	0°- 45°
Table Rotation	0°- 360°
Table Size (L×W)	3200×2000 mm  126"×79"
Table Tilt	0°- 85°
Max. Cut size	200×2000 mm  126"×79"
Spindle Motor	18.5 Kw  25HP
Size (L×W×H)	6×5.7×3.5 m
Weight	7,500 Kg

Guarantee & after sale service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

FAQ:
1, How to pay to you ?
T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading .

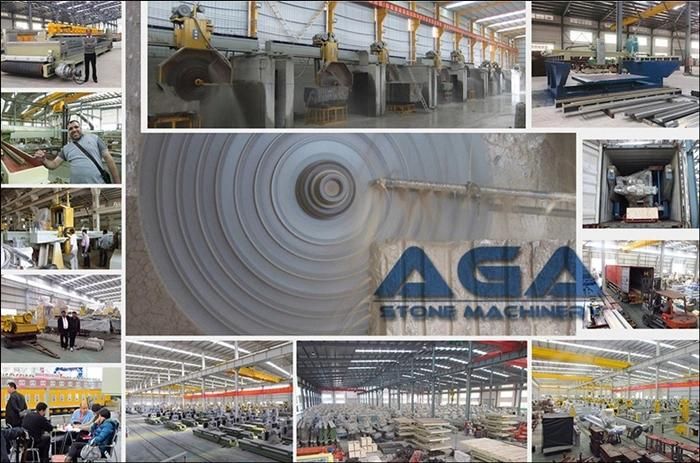

AGA Company :
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block  cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.


AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

AGA Product:
Stone cutting machine multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher. CNC Machine, CNC Cutting Machine, CNC Wire Saw
