• Model NO.：PE 150*250
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：10-200tph

Basic Info.

Model NO. PE 150*250 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 10-200tph

Product Description

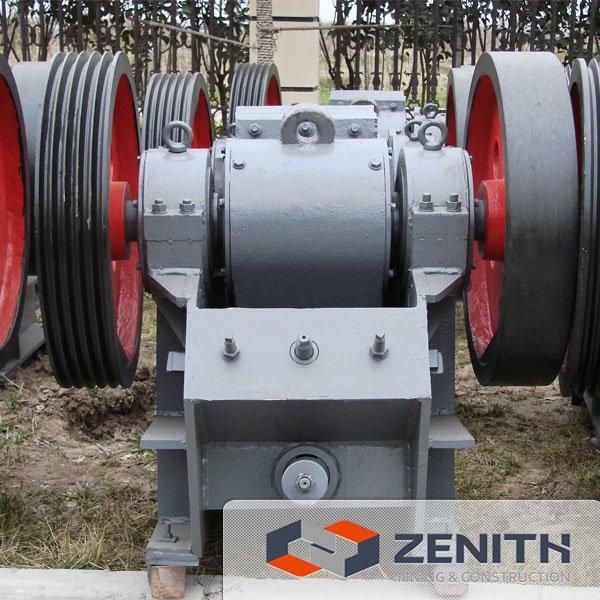

Small Crusher introduction:

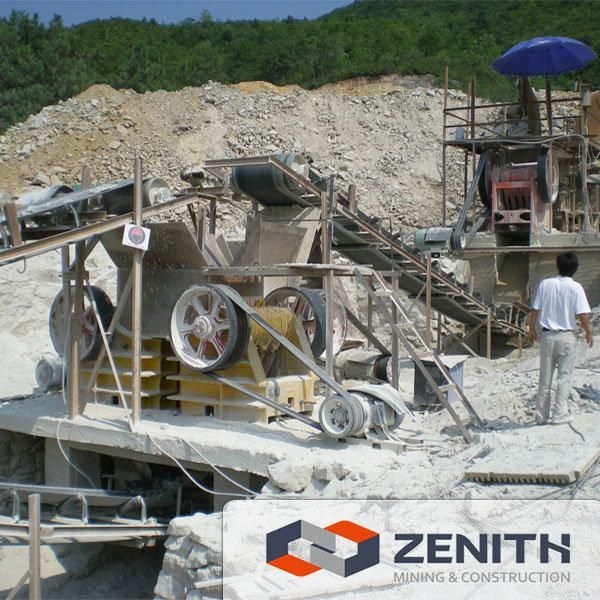

 Jaw Crusher is mainly used for middle crushing and fine crushing the medium hard ores and rocks in the quarry plant, construction base, and artificial sand making plant. Small Crusher is mainly used to coarse crushing and middle crushing, and is widely used in mining, metallurgy, building material, highway, railway, water conservancy, and chemical industries, the largest compression resistance of the material is 320MPa. PE Series is used in primary crushing, while PEW series is used in secondary crushing and fine crushing.

 Small Crusher features:
 This series jaw crusher has the characteristics of large crushing ratio, even particle size, simple structure, reliable operation, easy maintenance, economic operating costs. Small Crusher structure:

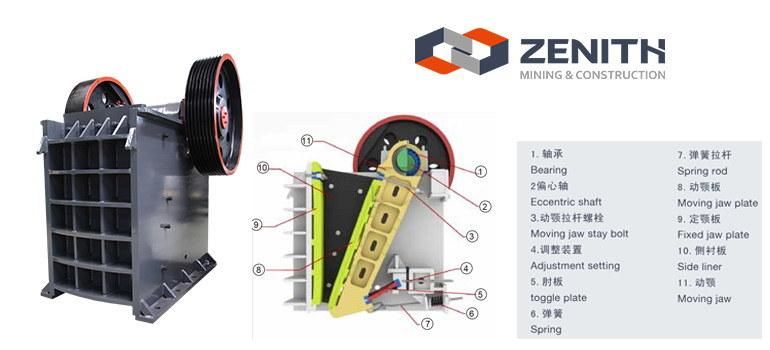

 The Small jaw crusher is composed of frame, eccentric shaft, large pulley, flywheel, moving jaw, side guards, elbow board, elbow board backseat, adjust gap screw, return spring, fixed jaw plate and active jaw plates, of which elbow board plays a role as insurance.

 Small Crusher operating principle: When the Small Crusher start to work , The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet.

 Small crusher specifications:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
