• Model NO.：Y26
• Control：Artificial
• Precision：Normal Precision
• Application：Machinery & Hardware, Construction, Stone Industry
• Certification：CE
• Brand Name：Bestlink
• Certificate：CE
• Drilling Method：Dry Drilling
• Place of Origin：Fujian, China
• Shank：22*108mm or 25*108mm
• Transport Package：Carton
• Specification：68.5*25.8*20.5CM
• Trademark：none
• Origin：Fujian, China
• HS Code：84671100
• Production Capacity：20000PCS Per Month

Basic Info.

Model NO. Y26 Control Artificial Precision Normal Precision Application Machinery & Hardware, Construction, Stone Industry Certification CE Brand Name Bestlink Certificate CE Drilling Method Dry Drilling Place of Origin Fujian, China Shank 22*108mm or 25*108mm Transport Package Carton Specification 68.5*25.8*20.5CM Trademark none Origin Fujian, China HS Code 84671100 Production Capacity 20000PCS Per Month

Product Description

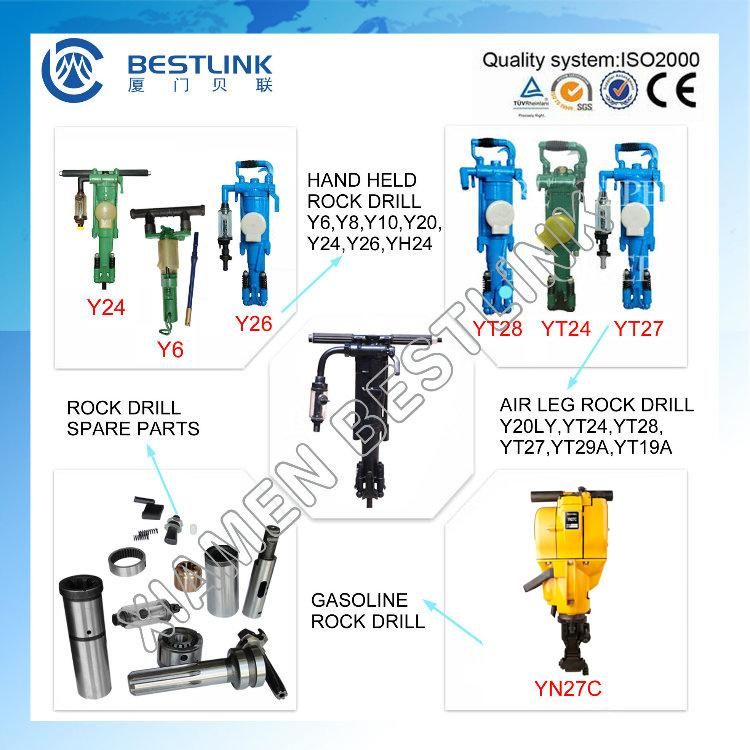

Drying Mining Y26 Hand Held Pneumatic Rock Drill Jack Hammer

This Product execute standard No: JB/T7301-94
1. Applications

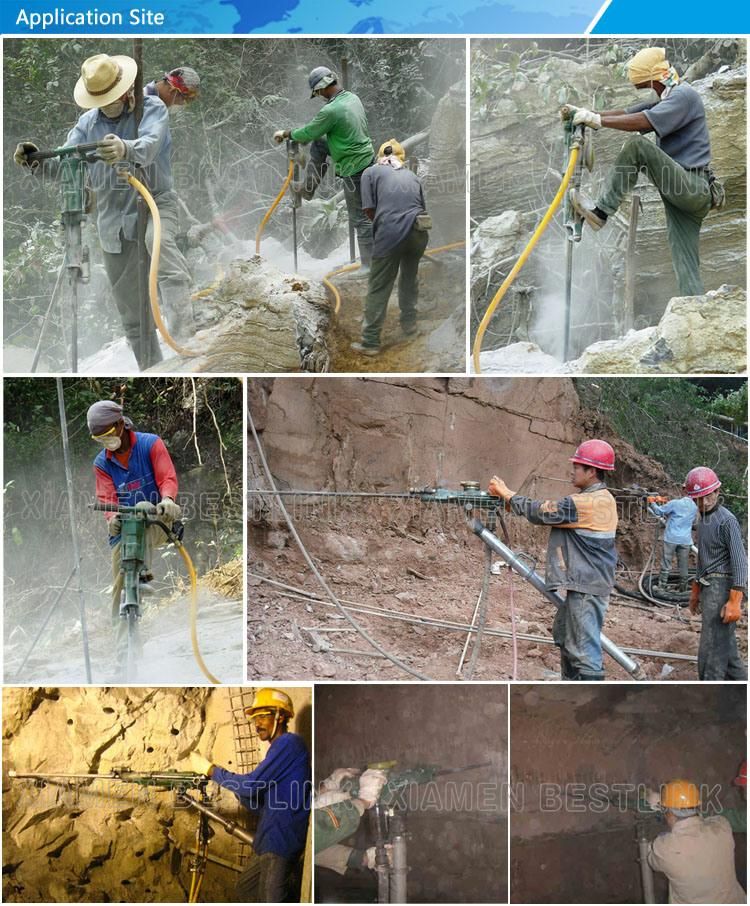

The Hand-held Rock Drill Model Y26 is mainly used in mine, railway, water irrigation works and quarrying works to drill holes or plugholes. It is suitable for wet or dry drilling in medium and hard rock. The downward holes can be in perpendicular or titling direction.

2. Features
L It has many advantages, such as reasonable design, light weight, high efficiency, fast drilling velocity, low consumption convenient operation, low trouble rate, long life parts, and good economic effect.
L Original in distributing construction, nimble in starting, and smooth in operation.
L It has special strong blowing-out construction, blow strongly is specially suitable for drilling medium and deep-sized holes.
It may be used with dry or wet flushing, so it is suitable not only for extinguishing dust of drilling under-ground but also in high frigid zone lacking of water.

Model		Y20	Y24	Y26
Weight	kg	18	24	26
Air consumption	L/s	25	≤50	≤47
Length	mm	605	604	650
Shank	mm	22*108	22*108	22(25)*108
Bore Dia	mm	30-42	30-42	30-42
Drill depth	m	3	5	5
Impact rate	Hz	34	30	27
Hose connection	mm	16  or 19	19	19
