Yt24 Water Cooling Pneumatic Air Leg Rock Drill Machine
Xiamen Bestlink Factory Co., Ltd.- Type：Core Drill
- Drill Direction：Any Direction
- Depth of Drilling：0-100 M
- Drilling Speed：0-50 M,H
- Automation：Manual
- Layout：Vertical
Base Info
- Model NO.：YT24
- Control：Artificial
- Precision：Normal Precision
- Application：Construction, Stone Industry
- Certification：CE
- Brand Name：Bestlink
- Certificate：CE
- Drilling Method：Dry Drilling
- Place of Origin：Fujian, China
- Shank：22*108mm or 25*108mm
- Transport Package：Carton
- Specification：as per order quantity
- Trademark：none
- Origin：Fujian, China
- HS Code：84671100
- Production Capacity：20000PCS Per Month
Description
Basic Info.
Model NO. YT24 Control Artificial Precision Normal Precision Application Construction, Stone Industry Certification CE Brand Name Bestlink Certificate CE Drilling Method Dry Drilling Place of Origin Fujian, China Shank 22*108mm or 25*108mm Transport Package Carton Specification as per order quantity Trademark none Origin Fujian, China HS Code 84671100 Production Capacity 20000PCS Per MonthProduct Description

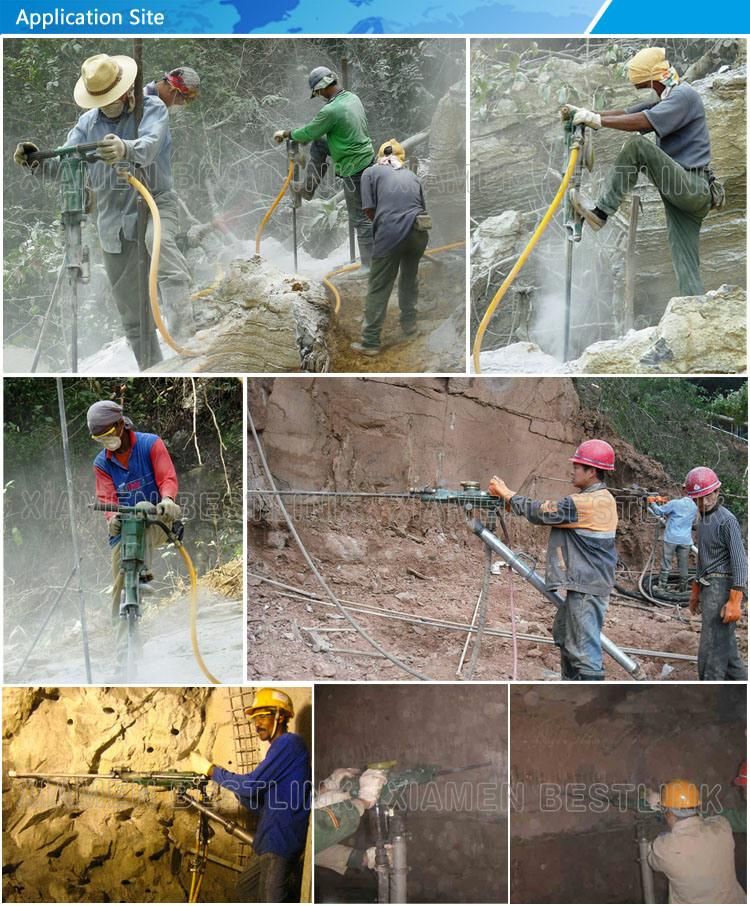

Instruction of rock drill yt24The rock drill is a kind of high efficiency air leg rock drill machine. It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility. It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18). The drilling depth can be five-eight meters. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock. Also it can be fixed on drilling-vehicle or drilling-shelf. To ensure the well lubricating. This rock drill may match FY200B oil reservior.
Features of rock drill yt24
Easily-accessible position throttle
Integral muffler, lower noise
It accepts heavy duty bits
Reliable structure, easy and stable operation
Drill diam. Can be from 32mm-60mm.
Hand-held and air legs rock drill accessible.
Provide the ultimate combination of performance and economy.
Smart, and durable.
| Model | YT24 | YT28 | YT29A | |
| Weight | kg | 24 | 26 | 27 |
| Air consumption at 0.63MPa | L/s | 67 | 81 | 88 |
| Length | mm | 678 | 661 | 659 |
| Shank | mm | 22(25)*108 | 22(25)*108 | 22(25)*108 |
| Bore Dia | mm | 30-42 | 30-42 | 32-45 |
| Impact rate | Hz | 31 | 37 | 37 |
| Air Hose connection | mm | 19 | 25 | 25 |
| Water Hose connection | mm | 13 | 13 | 13 |
| Air leg type | FT140B,D | FT140B,D | FT160B |
