• Model NO.：Y20 Rock Drill
• Control：Artificial
• Precision：Normal Precision
• Application：Machinery & Hardware, Construction, Stone Industry
• Certification：CE
• Brand Name：Bestlink
• Certificate：CE
• Drilling Method：Dry Drilling
• Place of Origin：Fujian, China
• Shank：22*108mm or 25*108mm
• Transport Package：Carton
• Specification：as per order quantity
• Trademark：none
• Origin：Fujian, China
• HS Code：84671100
• Production Capacity：20000PCS Per Month

Basic Info.

Model NO. Y20 Rock Drill Control Artificial Precision Normal Precision Application Machinery & Hardware, Construction, Stone Industry Certification CE Brand Name Bestlink Certificate CE Drilling Method Dry Drilling Place of Origin Fujian, China Shank 22*108mm or 25*108mm Transport Package Carton Specification as per order quantity Trademark none Origin Fujian, China HS Code 84671100 Production Capacity 20000PCS Per Month

Product Description

Y20 Hand Held Pneumatic Rock Drill for Dry Mining

The rock drill is a kind of light rock drill machinery. It can perform both dry and
Wet drilling under medium hard or hard rock(f=8-18). (the diameter of blast hole is
34mm-40mm, the depth of hole is 3m). This machine can drill downward with hand
Toward horizontal or acclive, when it is matched with air-leg model FT100, it is suitable

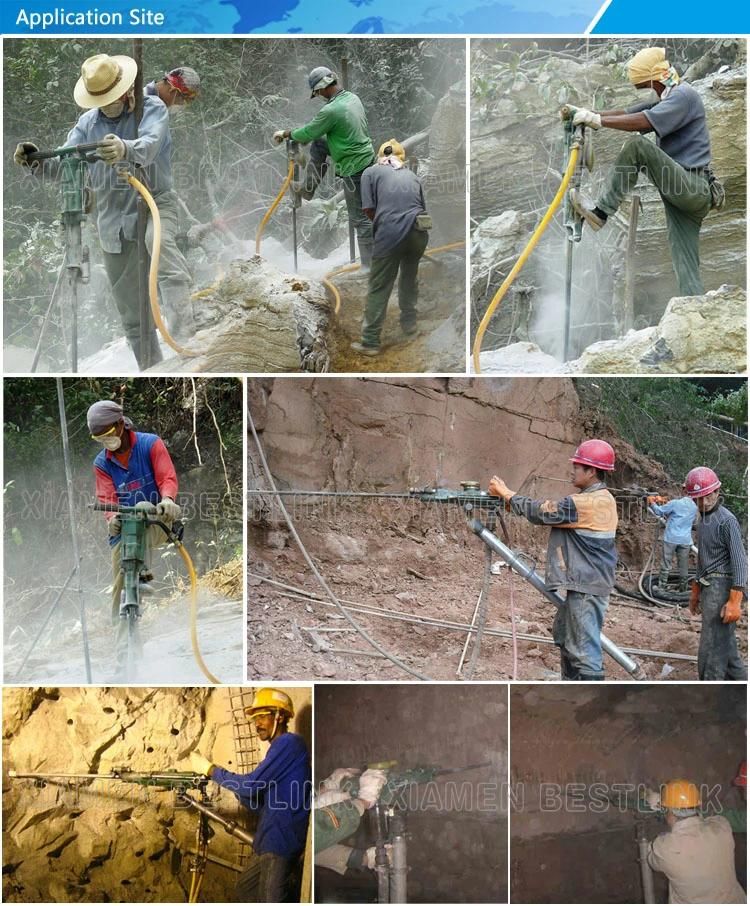

For drilling works in various mines, quarries, capital construction of farmland, blasting
For constructing roads in mountain areas and other projects. This machine has trans-
Parent surface of FY200B lubricator to guarantee good lubrication, but also can be
Matched with model FT100 air leg.

Y20 Rock Drill
Y20 is intended for dry drilling.
Suitable for either drilling downward or incline of blast holes in medium-hard
Rock(f=8-18), or for second blasting operation.
Centrally grouped control, nimble starting, stable running and easy maintenance.


Model		Y20	Y24	Y26
Weight	kg	18	24	26
Air consumption	L/s	25	≤50	≤47
Length	mm	605	604	650
Shank	mm	22*108	22*108	22(25)*108
Bore Dia	mm	30-42	30-42	30-42
Drill depth	m	3	5	5
Impact rate	Hz	34	30	27
Hose connection	mm	16  or 19	19	19



Model	Weight	Air consumption	Length	Drill steel chunk hex	Bore Dia.	Drilling depth	Impact rate	Hose connection
	Kg	L/s	mm	mm	mm	m	Hz	mm
Y20	18	25	605	22*105	30-42	3	34	16 or 19
Y19A	19	43	600	22*108	30-2	5	35	19
Y24	24	≤50	604	22*108	30-42	5	30	19
Y26	26	≤47	650	22(25)*108	30-42	5	27	19

Why Choose Us?

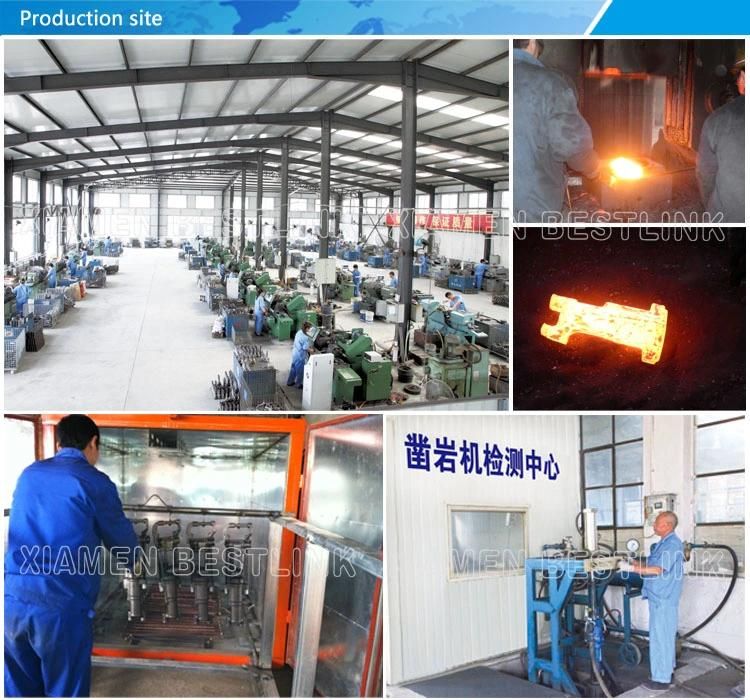

Xiamen Bestlink Factory Co., Ltd  since 1985  is  committed  to  providing  the  best  drilling  and  cutting machine,  tools and accessories products in marble and granite stone quarrying,  as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite  and ornamental stones in china.

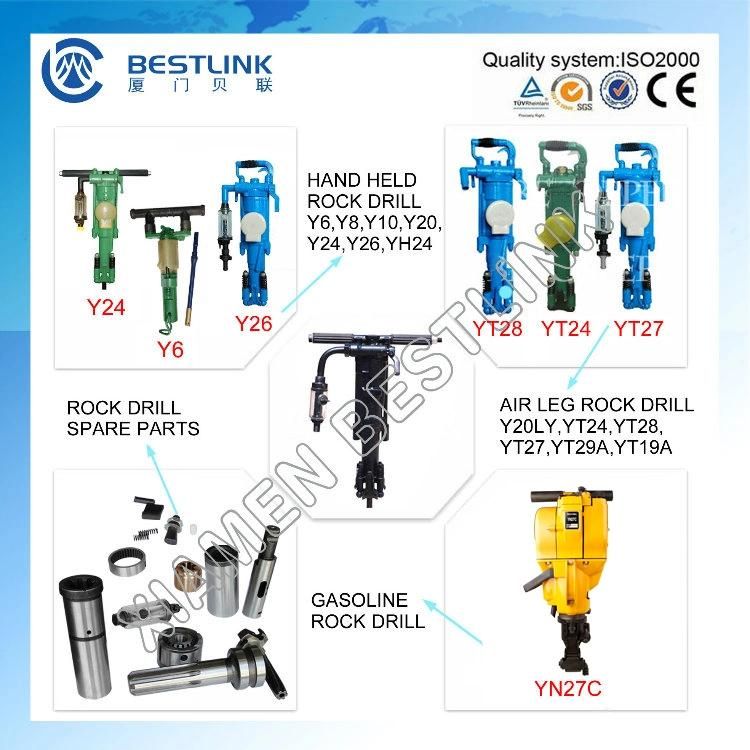

 Most of our products are of our own proprietary intellectual property rights, such as Pneumatic mobile rock drill,DTH driller,Hydraulic splitting machine, Hydraulic stone stamping machine,Mushroom stone machine.
