Toyo Rock Drill Model Ty24c Pneumatic Hammer Drill Machine

Xiamen Bestlink Factory Co., Ltd.
  • Type：Core Drill
  • Drill Direction：Vertical
  • Depth of Drilling：0-100 M
  • Drilling Speed：0-50 M,H
  • Automation：Manual
  • Layout：Vertical

Base Info

  • Model NO.：TY24C Rock Drill
  • Control：Artificial
  • Precision：Normal Precision
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Certification：CE
  • Brand Name：Bestlink
  • Certificate：CE
  • Drilling Method：Dry Drilling
  • Place of Origin：Fujian, China
  • Shank：22*108mm or 25*108mm
  • Transport Package：Carton
  • Specification：as per order quantity
  • Trademark：none
  • Origin：Fujian, China
  • HS Code：84671100
  • Production Capacity：20000PCS Per Month

Description

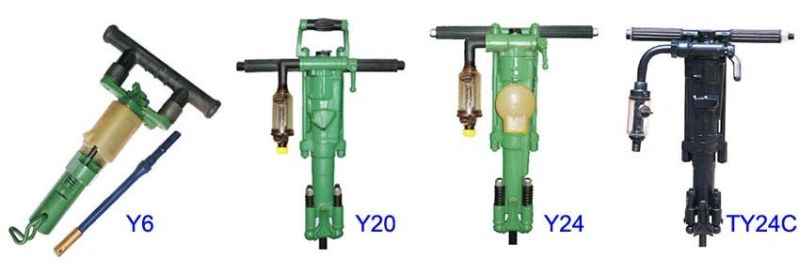

ModelWeightAir consumptionImpact frequencyAir pressure(KG)(L/S)(HZ)(MPA)Y19A19≤37-43≥28-350.4-0.5Y2424≤55≥270.4-0.63Y2626≤47≥230.4-0.63TY24C27≤45≥310.4-0.5Y66≤9.5≥510.4-0.63Y1010≤9.0≥510.4-0.63
  TY24C Hand hold rock drillOverall  weight27kgOver length610mmCylinder Bore66.7mmPiston stroke68mmAir consumption2.7 M3/minShank size22*108mm
