Stone Processing Machinery

Home > Product > Stone Cutting Machine

Infrared Stone Cutting Machine Granite Cutting Machine Marble Cutting Machine (HQ400/600/700)

Xiamen Aga Import and Export Co., Ltd.
  • After-sales Service：24 Hours on Line Services
  • Warranty：1 Year Warranty
  • Type：Laser Cutting Machine
  • Usage：Granite, Marble, Quartz Sandstone
  • Application：Machinery & Hardware
  • Source Voltage：380V

Base Info

  • Model NO.：HQ400,600,700
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Blade Tilting：0-45 Degree (Optional for Hq700)
  • Table Size：3200*2000mm
  • Table Rotation (Hq400-Hq600)：0-90 Degree (0-360 Degree Optional)
  • Table Rotation (Hq700)：0-360 Degree Stop at Any Position
  • Table Tilting：0-85 Degree Easy for Materials Loading
  • Max. Cut Thick (Hq400)：110mm
  • Max. Cut Thick (Hq600)：180mm
  • Max. Cut Thick (Hq700)：230mm
  • Power of Spindle Motor：15kw,15kw,18.5kw
  • Transport Package：Plastic Water-Proof Package
  • Specification：Dimention: 6*5*3 m(HQ600)
  • Trademark：AGA
  • Origin：China
  • HS Code：84641010
  • Production Capacity：200sets,Month

Description

ModelHQ700HQ600HQ400 Laser Guide DeviceYesYesYesBlade tilting 45° (Angle Cut Mitered)YesN/AN/ATable Rotation 90°YesYesYesTable Rotation 0-360°
(stopping at each 45°)YesOptionalOptionalTable tilting 0 - 85°YesYesYesPower Of Spindle Motor18.5kw / 25 HP18.5kw / 25 HP15kw / 20 HPMax Length of Cutting: (Table Size)3200 x 2000mm 126"x78"3200 x 2000mm 126"x78"3200 x 2000mm
126"x78"Max Thick of Cutting:230 mm 9"180 mm 7"110 mm 4"Steel Walls IncludedYesOptionalOptional

Stone cutting machine features:Infrared Stone Cutting Machine Granite Cutting Machine Marble Cutting Machine (HQ400/600/700)

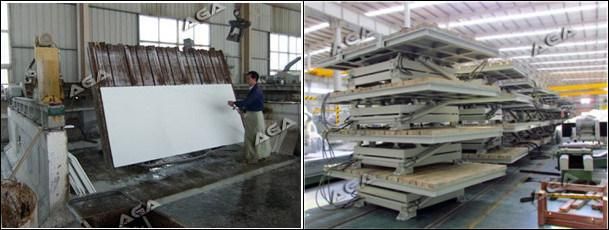

Main structures of the bridge cutting machine are made of very strong cast iron and stainless steel for protection. Powered table tilts 0-85 degree hydraulic for easy load of material. It can turn 0°-90°(optional: 0°-360° stopping automatically at 45°,90° and any angle) changing the cutting position easily.



Infrared Stone Cutting Machine Granite Cutting Machine Marble Cutting Machine (HQ400/600/700)

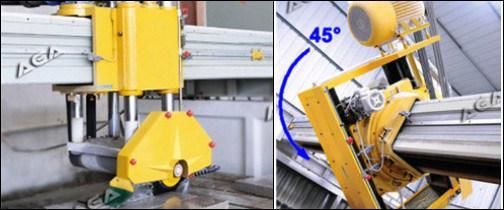

Cutting machine blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. Blade  tilts 45 degree for mitered cut is avaliable  for model HQ700.


Infrared Stone Cutting Machine Granite Cutting Machine Marble Cutting Machine (HQ400/600/700)

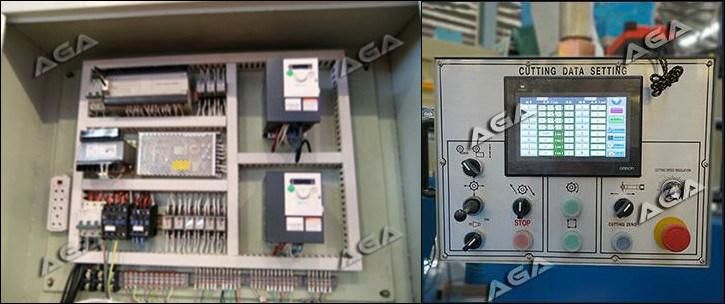

The stone bridge cutting machine is made with PLC standard. Electric system is simple and easy to operate. All functions are operated on the control panel with color touch screen. Electric parts are all from good international brands ensuring stable performance.


Infrared Stone Cutting Machine Granite Cutting Machine Marble Cutting Machine (HQ400/600/700)

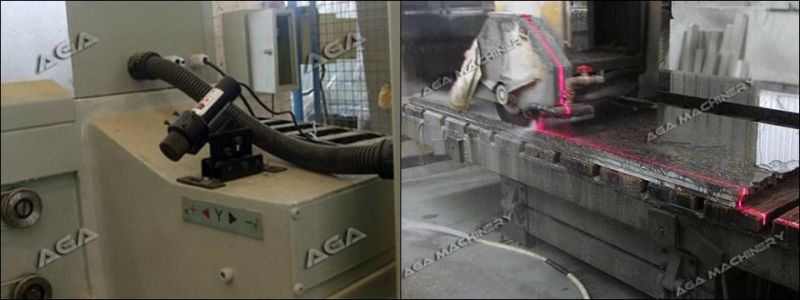

This cutting machine is an full automatic laser cutting machine. Laser guide shows the cutting position that makes the cutting easier and make precise cut +/-0.2mm. Cutting slabs, tiles, counter tops highly and perfect.


FAQ:
1) Payment:
T/T in advance, we accept 30% deposit and 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Stone cutting machine, bridge cutting machine, granite cutting machine, marble cutting machine, slab cutting machine, slab sizing machine, granite sizing machine, bridge sizing machine, tile cutter, stone cutter,cnc cutting machine, cnc machine, etc.


Contact Information:
Contact Miss Kay
