Low Price High Capacity Stone Impact Crusher Machine Price for Gold Mining Equipment

Gongyi Hengchang Metallurgical Building Material Equipments Plant
  • Type：Impact Crusher
  • Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry
  • Drive：Electric
  • Crushing Style：Grinding & Impact
  • Compressive Strength (For Crushing)：>300MPA
  • Crushing Degree：Coarse Crusher

Base Info

  • Model NO.：PF
  • Finished Surface：Cut Off Tool
  • Certification：CE, ISO
  • Condition：New
  • Color：at The Different Design
  • Name：Low Price Stone Coal Impact Crusher for Sale
  • Keyword：Limestone Impact Crusher
  • Weight：3.5-26.5t
  • Working Condition：Durable
  • Power：30-350kw
  • Delivery Time：15 Days
  • Guarantee：12month
  • After Sale Service：Long Term, Good Price
  • Installation：Under Our Guide
  • Spare Parts Supply：Long Term, Good Price
  • Transport Package：Standard Packing
  • Specification：CE
  • Trademark：HC
  • Origin：Gongyi City, Henan Province, China
  • HS Code：8474201000
  • Production Capacity：300 Set,Sets Per Month

Description


 Model
Rotor Size
(mm)
Max.Input Size
(mm)
Output size
(mm)
Motor power
(kw)
Capacity
(t/h)
Weight
(kg)
PF_0807
850 × 700
300
≤ 25=85%
30
10-25
3500
PF_1007
1000 × 700
300
≤ 25=85%
37
15-30
6500
PF_1010
1000 × 1050
350
≤ 25=85%
55-75
50-80
12100
PF_1210
1250 × 1050
350
≤ 25=85%
110-132
70-120
14000
PF_1214
1250 × 1400
400
≤ 25=85%
132-160
130-180
18500
PF_1315
1300 × 1500
500
≤ 25=85%
160-200
180-260
23500
PF _ 1320
1320× 2000
500
≤ 25=85%
300-350
300-350
26500

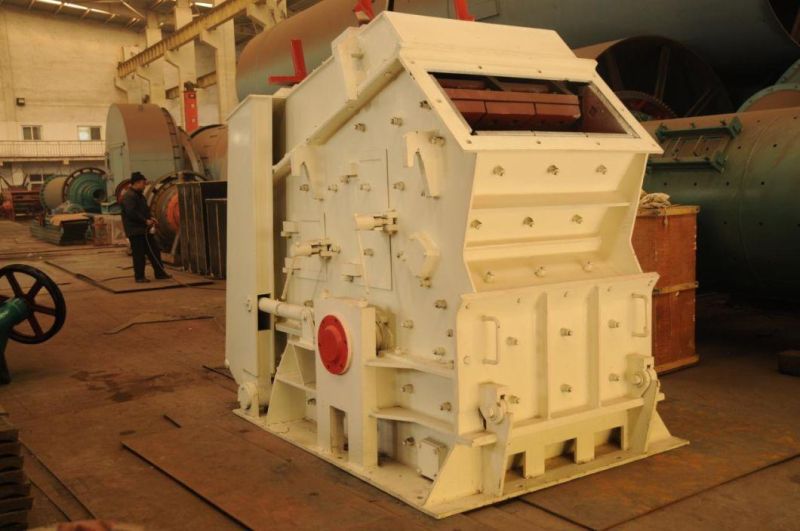

Product image

Low Price High Capacity Stone Impact Crusher Machine Price for Gold Mining Equipment
Stone Impact crusher's work principle

Impact breaker impact crushers crush materials with impact force.

Compare to other crushers, our impact crusher has bigger reduction ratio and can fully use the high speed impact energy of entire rotor. But because the impact crusher board hammer is extremely easy to wear, it also is restricted in the hard material stave application. Impact crusher is usually used to break thick garrulous, garrulousor the limestone, the coal, the calcium carbide, the quartz, the dolomite, the curing iron ore, the gypsum and the industrial chemicals which are hard following brittle material.

The ideal entering material granularity of our PF type impact crusher is 100-500mm, themost greatly is not surpass the rating. The materail granularity user canajusts the hammer head and the impact board and th gap between component, according to theirs demands.


Features

1. Simple structure

2. Easy maintenance

3 stable performance

4. Even particles

5. High crushing ratio
