• Model NO.：MS-2A
• Control：Artificial
• Certification：CE
• Warranty：1 Year
• Suitable Stone：Marble, Sandstone, Limestone, Concrete
• Cutting Power：2 Tons
• Cutting Thickness：Upto 5cm
• Transport Package：Plywood Box
• Specification：as per machine model
• Trademark：BESTLINK
• Origin：Fujian, China
• HS Code：84791090
• Production Capacity：3000sets Per Month

Basic Info.

Model NO. MS-2A Control Artificial Certification CE Warranty 1 Year Suitable Stone Marble, Sandstone, Limestone, Concrete Cutting Power 2 Tons Cutting Thickness Upto 5cm Transport Package Plywood Box Specification as per machine model Trademark BESTLINK Origin Fujian, China HS Code 84791090 Production Capacity 3000sets Per Month

Product Description

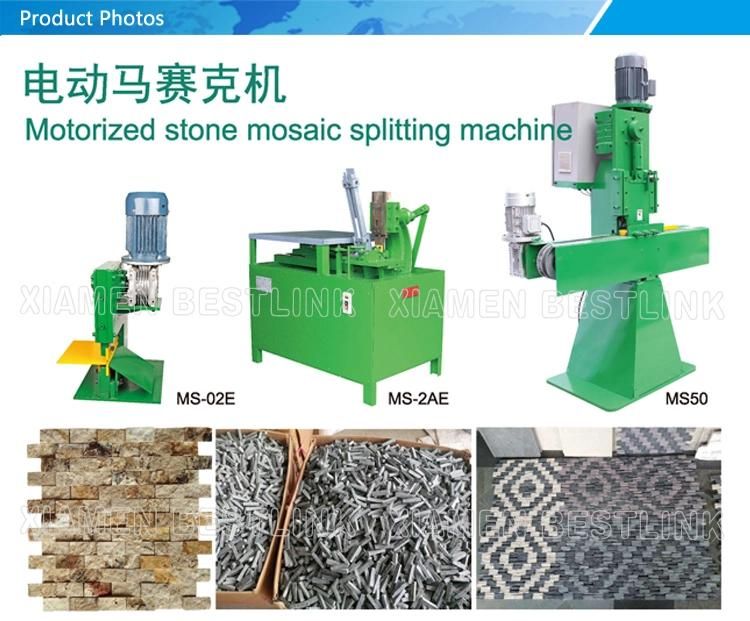

Automatic Electric Travertine Mosaic Cutting and Stone Strip Splitting Machine

Online Vedio: http://youtu.be/moYIGrdYZMM

The mosaic chopping machines are the result of a very long experience, we acquired in the construction of this kind of tools.

The weight of each part and the relation occurring between them are fully optimized with the result that is possible to obtain a precise and effective cut just with a minimum effort.

Both of the machines are realized for cutting various sizes of stones: Tesserae, cubes& all the shapes desired.
The structure of both the machines is realized in steel, while fly-wheel and slides are produced in cast iron.
The diameter of the fly-wheel of teseus model measures 40cm; The diameter of the fly-wheel of its smaller twin machine MS-02/02E/02S corresponds to 30cm.

Both the chopping machines are equipped with two blades in hardened steel: The lower one is secured to the structure and doesn't move; The upper one is driven by the fly-wheel and falls in a perpendicular on the lower. Our chopping machines are produced 100% in Italy in all of their components and special care is dedicated to the choice of very high quality materials. This construction process warranties an absolute strength and resistance giving to the teseus and to the MS-02/02E/02S an extremely long life, almost everlasting! ! Both models are provided with a replacement spare blades.

Model No	MS-02 (manual)	MS-02S (manual+stand)	MS-02E (electric)	MS-12(electric)
Splitting Force	2 tons	2 tons	2 tons	12 tons
Max Cutting Width	240 mm	240 mm	240 mm	240 mm
Max Cutting height	65 mm	65 mm	65 mm	100 mm
Power Supply	0	0	2.0 kw	3.0 kw
Oil Tank	0	0	0	30 L
Overall Size	500*400*700 mm	600*800*1500mm	500*400*800mm	500*600*1600 mm
Net Weight	70 kg	180kg	120 kg	210 kg
