• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Transport Package：Plastic Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Transport Package Plastic Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

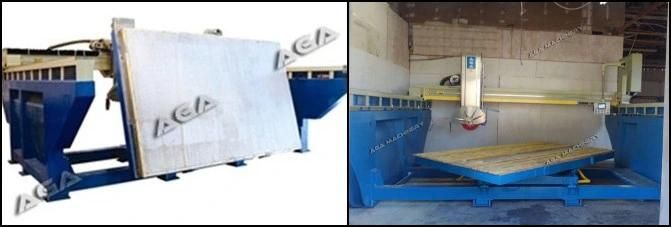

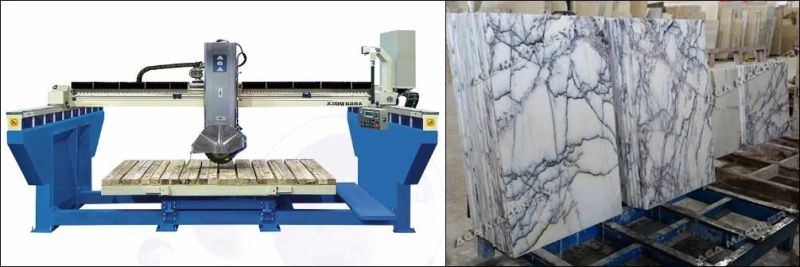

Automatic CNC Machine Stone Bridge Saw Cutting Granite Marble Quartz Countertops (XZQQ625A)
Premium stone bridge saw XZQQ625A is U.S standard made with full functions, including mono frame, pendant control panel, touch screen, wireless remote, table rotation and tilting, blade tilting, hydraulic pump, etc.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, preferable for cutting high value granite and big size marble and quartz stones. We sent this machine quite a lot to stone fabricators doing kitchen tops, customers paid and they got the machine and super happy.

Granite marble stone bridge saw specifications:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Maxmize your granite, mabrle and quartz production with the monoblock granite bridge sizing saw XZQQ625A from AGA Machinery:
Bridge saw main structures are made of very strong cast iron for stable running and stainless steel for protection. Monobloc structural frame is easy for loading, transportation and installation.

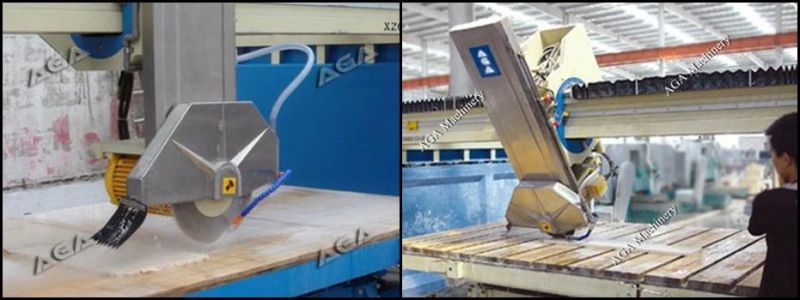

Machine with a powerful motor 20 HP and able to cut 3200 mm length, 2000 mm width and 170 mm thick (126"×78"×6.7" L / W / H). Machine head provides automatic tilting of 0-45 degrees for miter cutting.


Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.

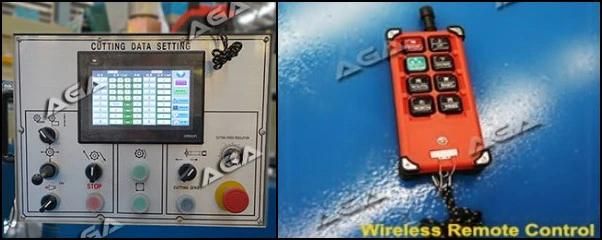

PLC control system, programmable, fully automatic & smooth feeding. Touch-sensitive operating system, friendly human-machine interface design.
Wireless remoter provides easy conrols of the bridge saw making its users very friendly.

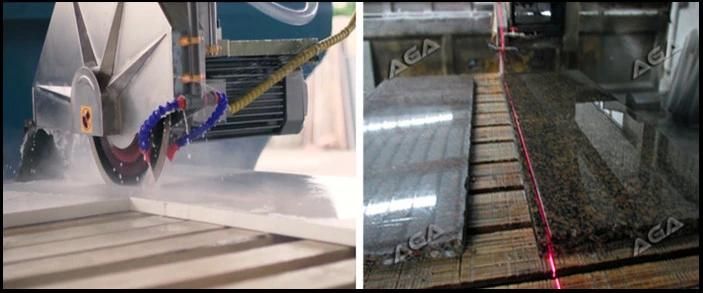

5) Laser Guide Cutting:
Machine equipped with infrared device, precise cutting location reachable.
Electric parts of international brand adopted, reliability guaranteed.


FAQs:
1) Payment:
By wire transfer. T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Guarantee:
Warranty for one year.
24-hour technical support Internet or by Telephone, free instructions and Problem solving.
