• Model NO.：PFW series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PFW series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

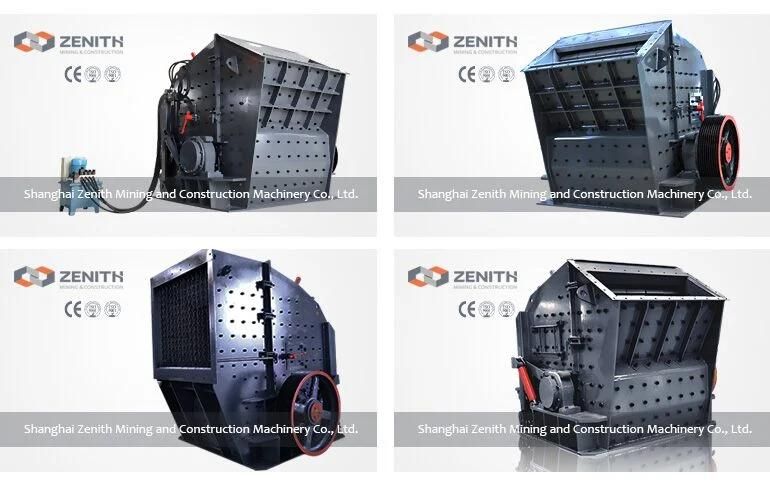

New Type PFW Series impact crusher Crushing Plant

impact crusher Crushing Plant Introduction:


Base on the plentiful experience of producing and marketing of impact crusher Crushing Plant, Zenith R&D institution designed the PFW series impact crusher. It is the newest style impact crusher and has been widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on.

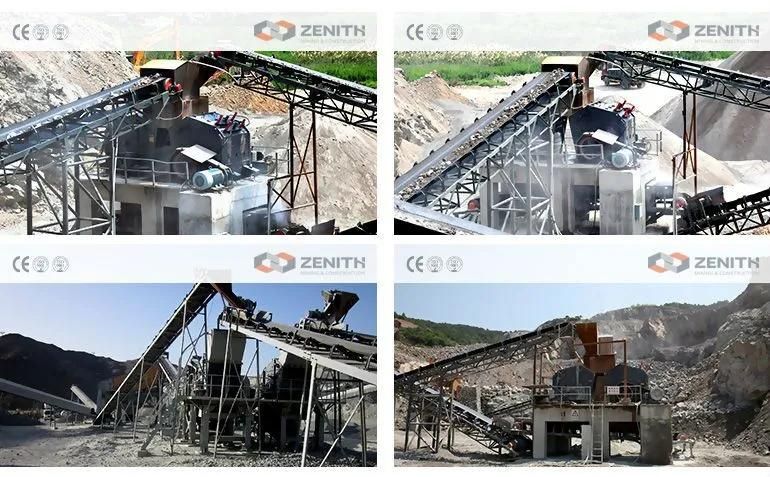

impact crusher Crushing Plant application:


PFW series impact crusher Crushing Plant are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombar thite, kaolin, gypsum, and graphite, etc

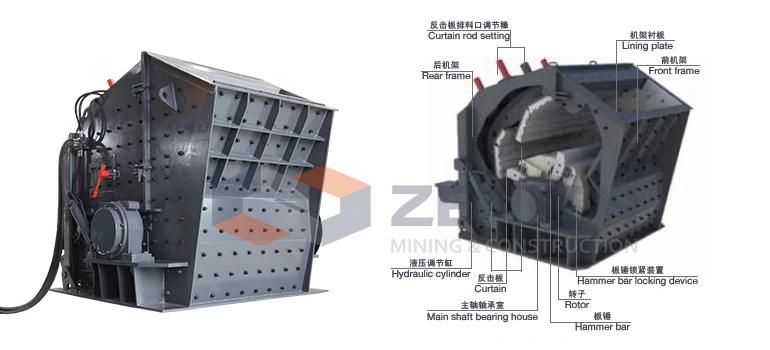

impact crusher Crushing Plant features:


1.Advanced Manufacture process and high-end fabrication material

2.Heavy rotor design and tight test method improve the rotor performance.

3.Overall type cast steel structure bearing base improves anti load resistance capacity.

4. Hydraulic jacking device and hydraulic regulated discharging port is helpful to save labour and time.



impact crusher Crushing Plant technical data:


Two-curtain cavity hydraulic impact crusher



Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214II	1150×1400	1100×1430	500	130-200	4-132	Y315M-4/132	2400×2310×2550
PFW1315II	1300×1500	1200×1530	600	180-320	4-160	Y315L1-4/160	2700×2570×2800
PFW1318II	1300×1800	1200×1830	700	240-400	4-200	Y315L2-4/200	2700×2870×2800
PFW1415II	1400×1500	1450×1530	800	240-450	4-200	Y315L2-4/200	3000×2700×3070

Three-curtain cavity hydraulic impact crusher


Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214III	1150×1400	570×1430	250	90-170	4-132	Y315M-4/132	2550×2310×2100
PFW1315III	1300×1500	625×1530	300	180-270	4-160	Y315L1-4/160	2960×2570×2380
PFW1318III	1300×1800	625×1830	300	220-300	4-200	Y315L2-4/200	2960×2870×2380
PFW1415III	1400×1500	800×1530	350	280-350	4-200	Y315L2-4/200	3120×2650×2660
