Robust Monoblock Stone CNC Machine Bridge Saw Cutting Granite Marble Quartz (XZQQ625A)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service:24 Hours on Line Services
- Warranty:1 Year Warranty
- Type:Laser Cutting Machine
- Usage:Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
- Application:Machinery & Hardware, Stone Industry
- Source Voltage:220V
Base Info
- Model NO.:XZQQ625A
- Automation:Automatic
- Cutting Ability:High Speed
- Control:Artificial
- Certification:ISO, CE
- Blade Size:400-625 mm
- Stone Cutting Length:3200mm
- Stone Cutting Width:2000mm
- Stone Cutting Thick:170mm
- Table Tilting Vertically:0-85 Degree Easy for Materials Loading
- Table Rotation Horizontally:0-360 Degree Stopped Any Positon
- Blade Tilting:0-45 Degree for Mitered Cuts
- Power of Spindle Motor:15 Kw 20HP
- Repeat Cutting:99 Repeat Cutting by Program
- Transport Package:Plastic Packing
- Specification:Dimention (L*W*H): 6*5*2.6m
- Trademark:AGA
- Origin:China
- HS Code:84641090
- Production Capacity:200 Sets,Month
Description
Basic Info.
Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control Artificial Certification ISO, CE Blade Size 400-625 mm Stone Cutting Length 3200mm Stone Cutting Width 2000mm Stone Cutting Thick 170mm Table Tilting Vertically 0-85 Degree Easy for Materials Loading Table Rotation Horizontally 0-360 Degree Stopped Any Positon Blade Tilting 0-45 Degree for Mitered Cuts Power of Spindle Motor 15 Kw 20HP Repeat Cutting 99 Repeat Cutting by Program Transport Package Plastic Packing Specification Dimention (L*W*H): 6*5*2.6m Trademark AGA Origin China HS Code 84641090 Production Capacity 200 Sets/MonthProduct Description

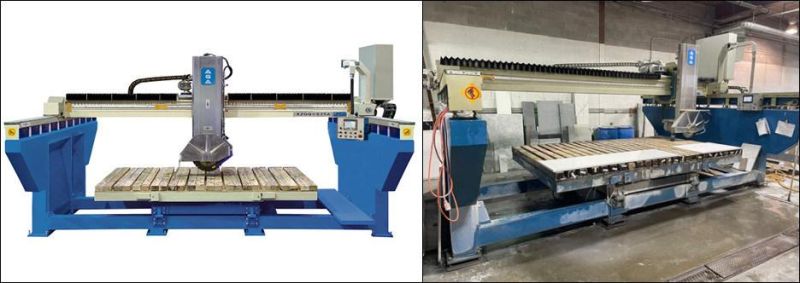

Robust Monoblock Stone CNC Machine Bridge Saw Cutting Granite Marble QuartzModel: XZQQ625A

Cnc machine stone bridge saw secification:
Blade size | 400 - 625 mm 16" - 25" |
Cut length | 3200 mm 126" |
Cut width | 2000 mm 78.7" |
Cut thick | 170 mm 6.7" |
Blade tilt | 0 - 45° |
Table rotate | 0 - 360° locked any position |
Table tilt | 0 - 85° |
Spindle motor | 15 Kw 20 HP |
Size (L×W×H) | 6×5×3 m 20'×16'×9.9' |
Weight | 7200 Kg 16,000 Lbs |
Maxmize your granite, mabrle and quartz production with the Monoblock Stone Bridge Saw XZQQ625A from AGA Machinery:
Bridge saw XZQQ625A is made with full options including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc. Good price in the market, customers paid and they got the machines and very happy.
1) Monoblock Frame:

This bridge saw is monoblock made of very strong cast iron for stable running and stainless steel for protection.

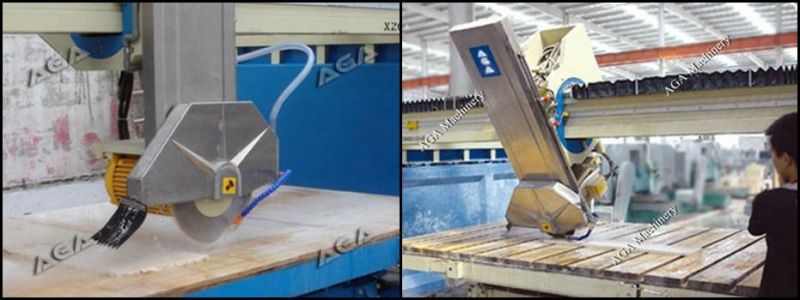

2) Miter Cut:

The automatic head of the bridge saw provides 0°-45° tilting for miter cut very excellent in cutting granite marble slabs and countertops.

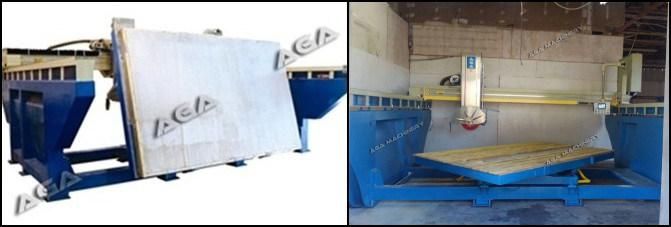

3) Table Tilting and Rotation:

The table of the bridge saw tilts 0°-85° for easy load of big slabs. It can also rotate 0°-360° and stop automatically at 45°, 90° and any degree for changing cutting position easily.

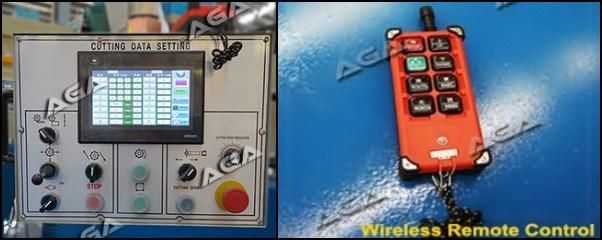

4) Color Touch Screen and Wireless Remoter:

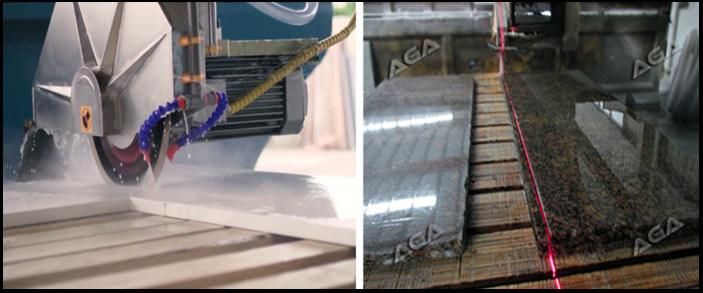

5) Laser Guide Cutting:

Laser guide ans sensors provides precise cutting.
6) Hot sales in global market.

FAQs:
1) Payment:
By wire transfer. T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Guarantee:
Warranty for one year.
24-hour technical support Internet or by Telephone, free instructions and Problem solving.
Why choose AGA Machinery?

You can depend on high quality service from AGA Machinery. We provide 24 hours on-line service. Whenever you have any questions please feel free to contact us, we're more than happy to serve you.
You will get much more benefits from AGA machines working in your factory. Robust machines with high efficiency, longer lifetime and stable performance makes you stand out of other fabricators.
What you see will be what you get and what you get will be much more what you paid!
Key words:
Stone bridge saw, granite bridge saw, granite cutting machine, bridge saw, marble bridge saw, bridge cutting machine, stone cutting machine, slab cutting machine, granite sawing machine, china bridge saw, stone saw, cnc machine, cnc cutting machine, tiles cutter, etc.
