• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：170mm
• Table Tilting：0-85 Degree
• Table Rotation：0-360 Degree
• Blade Tilting：0-45 Degree
• Spindle Motor：15 Kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Dimention(L*W*H)：6*5*2.6m
• Step Cutting：Two Way Cutting
• Transport Package：Plastic Packing
• Specification：Weight: 7200kg
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 170mm Table Tilting 0-85 Degree Table Rotation 0-360 Degree Blade Tilting 0-45 Degree Spindle Motor 15 Kw 20HP Repeat Cutting 99 Repeat Cutting by Program Dimention(L*W*H) 6*5*2.6m Step Cutting Two Way Cutting Transport Package Plastic Packing Specification Weight: 7200kg Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

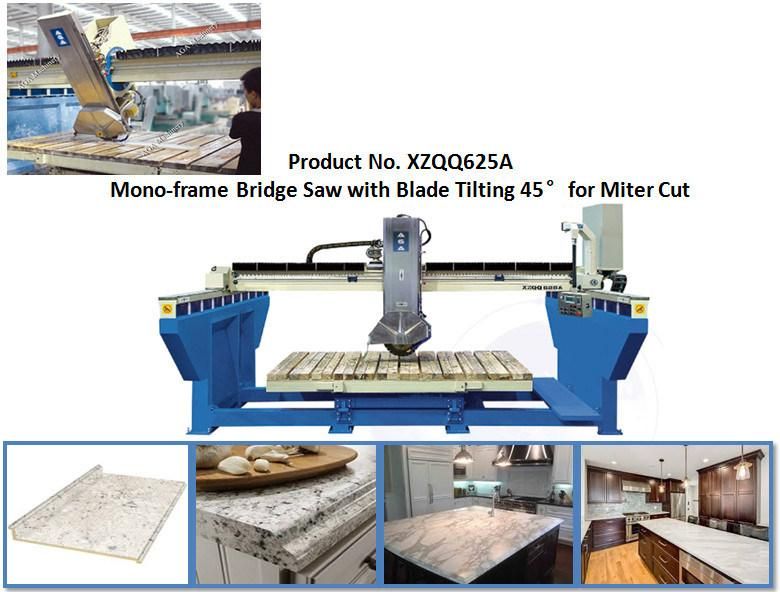

Mono Stone Bridge Saw with 45 Degrees Miter Cut Cutting Granite Marble Quartz Countertop
Product No. XZQQ625A

1) Bridge Saw XZQQ625A is  is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz stones.
2) Robust bridge saw referable for cutting and fabriacting slabs, tiles, countertops, vanitytops, benchtops.
3) U.S standard bridge saw made with full functions, including strong steel frame, pendant control panel, color touch screen, wireless remote, laser guide, blade tilting, tilting blade, tilting and rotation table, hydraulic pump, etc.


Bridge saw specifications:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Bridge saw features:

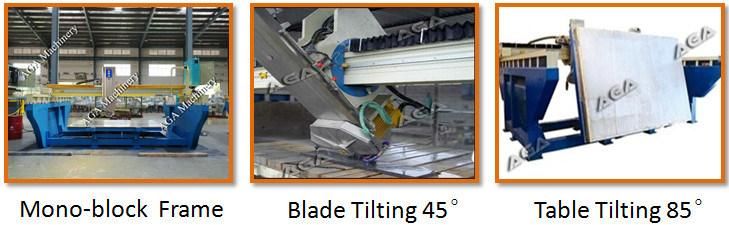

1) Bridge saw blade provides 45° for miter cut very excellent performance in cutting and fabricating grantie marble stones.

2) Main structures of the bridge saw are made of very strong cast iron and stainless steel for protection.

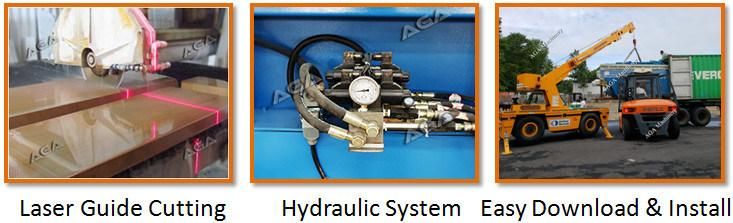

3) Bridge saw table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.

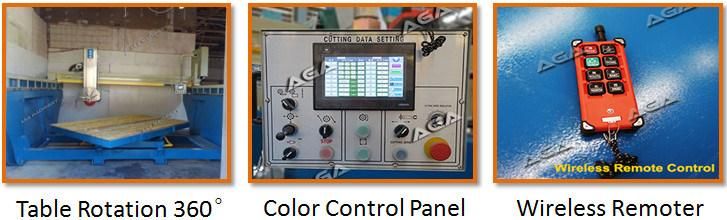

4) This saw is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data.

5) Wireless remote provides easy control of the saw making its users very friendly.

6) Besides, stone cutting is guided by laser sensor which shows precision cutting position.

7) What you see, what you get. It will return you much more in the long term use.


Hot sales in  global market:


FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.

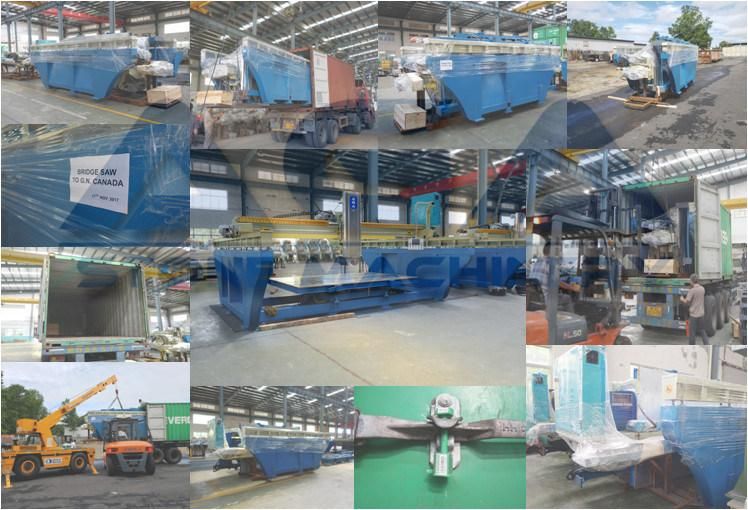

3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Stone bridge saw, granite bridge saw, marble bridge saw, bridge saw, bridge cutting machine, stone cutting machine, bridge sawing machine, slab cutting machine, slab saw, slab sizing saw, etc.


If you have any questions please feel free to contact us, we're more than happy to serve you!
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A., Canada Europe, Mid East, Egypt, India, etc.


Contact Information:
Contact: Miss Kay
