• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：170mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cut
• Repeat Cutting：99 Repeat Cutting by Program
• Spindle Motor：15 Kw 20HP
• Transport Package：Plastic Monoblock Packing
• Specification：Dimention (L*W*H): 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 170mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cut Repeat Cutting 99 Repeat Cutting by Program Spindle Motor 15 Kw 20HP Transport Package Plastic Monoblock Packing Specification Dimention (L*W*H): 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

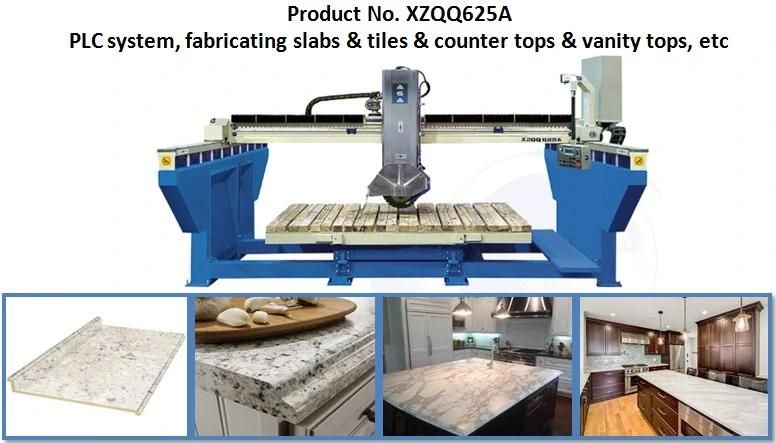

Automatic Monoblock CNC Machine Granite Marble Bridge Saw with 45 Miter Cut
Product No.XZQQ625A
Granite bridge saw XZQQ625A is robust monoblock made with full functions, including mono frame, pendant control panel, touch screen, wireless remote, table rotation and tilting, blade tilting, hydraulic pump, etc.
The whole bridge saw is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, suitable for cutting high value granite and big size marble, quartz.


Your dream bridge saw is closer than you think(Bridge Saw Features):

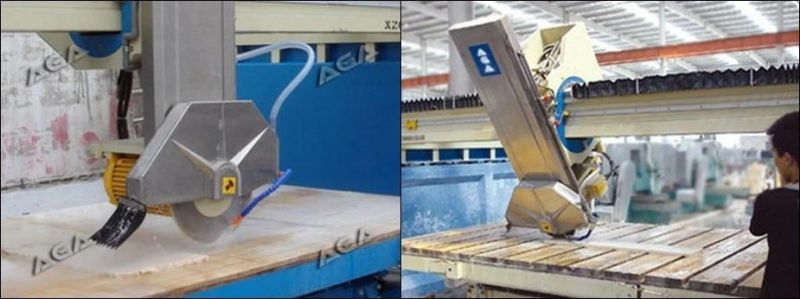

1) Automatic bridge saw blade tilting provides 45° for miter cut very excellent performance in cutting and fabricating grantie marble stones.

2) Main structures of the bridge saw are made of very strong cast iron and stainless steel for protection.

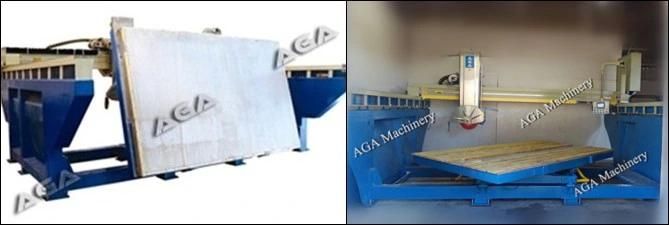

3) Powered bridge saw table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.

4) This granite bridge saw is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data.

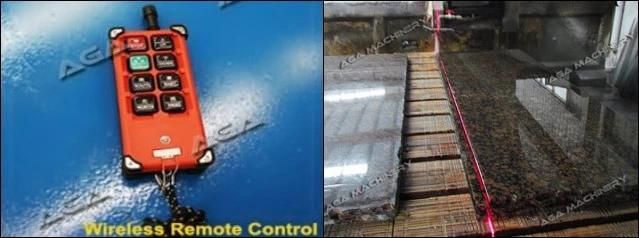

5) Wireless remote provides easy control of the saw making its users very friendly.

6) Togethering with ultra-high precision rotary encoder positioning and infrared device.

7)  Monobloc structural frame is easy for loading, transportation and installation.

8) Electric parts of good international brand adopted, reliability guaranteed.

9) Wide bridge structure with crossbeam, large size of slab cutting available.


Granite bridge saw specifications:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Robust granite marble bridge saws hot sales in the market:
We sent this machine quite a lot to the U.S.A, Canada, Europe, Australia, etc customers paid and they got the machines and super happy. Believe it will also turn you much more in your long term stone business.


FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

Key words:
Stone bridge saw, granite bridge saw, bridge saw, stone saw, granite saw, stone cutting machine, granite cutting machine, slab saw, stone sawing machine, slab sawing machine, slab cutting, slab sizing, slab sawing, stone saw, etc.

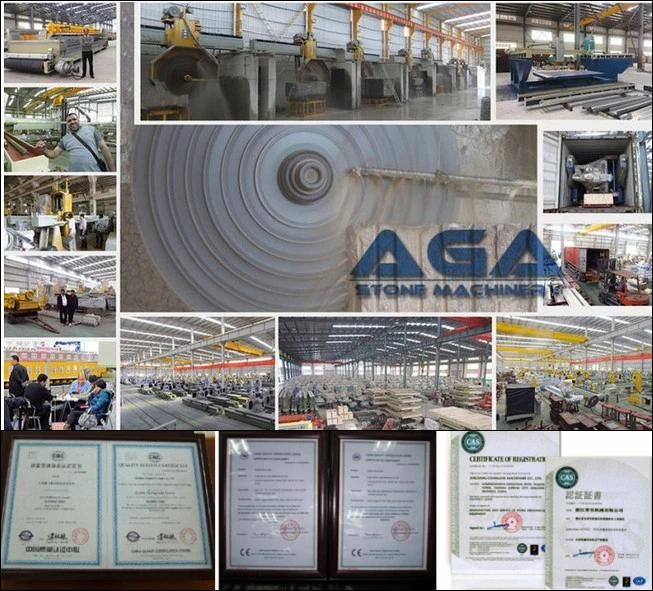

AGA Machienry--Your good partner:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc. Customers are happy with our machines.
We care about customers because by choosing us you are giving a chance make your machine more productive that also mackes your products unrivaled in the competitive market.
