• Model NO.：APM350-2000
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
• Column of Diameter：Φ350mm-Φ2000mm
• Max Cutting Width：1300mm
• Outline Dimension：5800*1700*2900mm
• Grinding Number：12
• Gross Motor：32kw
• Efficiency：≈8 Min,M2
• Water Consumption：7 M3,H
• Gross Weight：6000kg
• Name：Polishing Machine for Stone
• Polishing Material：Marble and Granite
• Transport Package：Load in a 20 Feet Container
• Specification：5800*1700*2900mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. APM350-2000 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Column of Diameter Φ350mm-Φ2000mm Max Cutting Width 1300mm Outline Dimension 5800*1700*2900mm Grinding Number 12 Gross Motor 32kw Efficiency ≈8 Min/M2 Water Consumption 7 M3/H Gross Weight 6000kg Name Polishing Machine for Stone Polishing Material Marble and Granite Transport Package Load in a 20 Feet Container Specification 5800*1700*2900mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

stone grinder machine
Automatic stone polishing machine, stone polisher , stone grinding machine

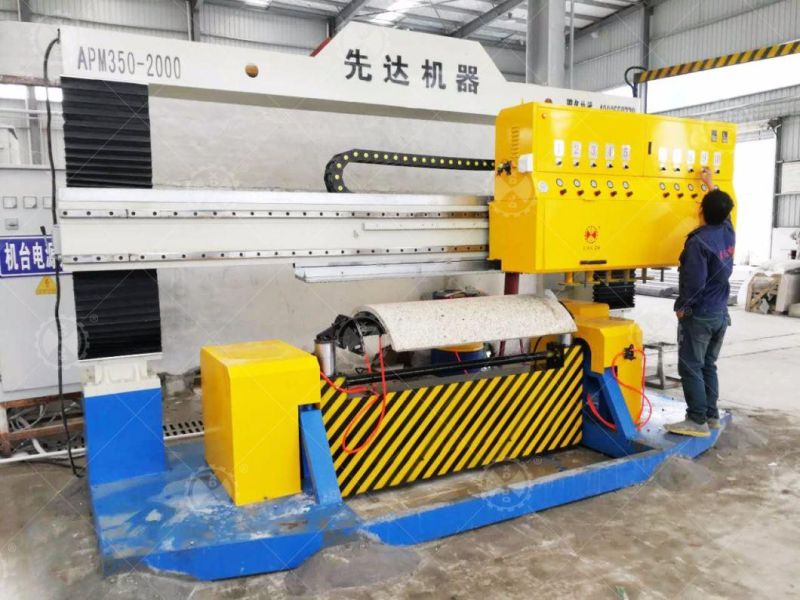

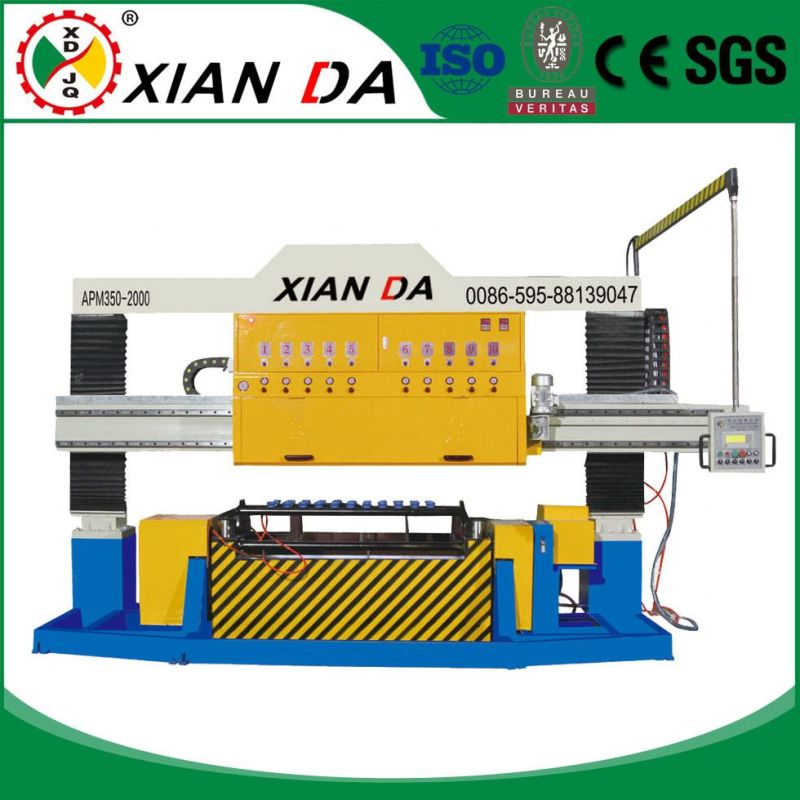

APM-350-2000 Stone polishing machine for column slab





The polishing degree can be 82-100 for granite, and 120 for Calcium Hydroxyapatite.

Product Description

 APM-350-2000 Stone machine for marble and granite polishing. (Automatic stone polishing machine, stone polisher , stone grinding machine for marble and granite.) It is designed for column ( arc shape stone slabs grinding and polishing, the conventional fixing ways are replaced by using vacuum sucker to consolidate stone slabs on both sides, it solved the deviation of the squareness and Xianda APM-350-2000 Natural Stone Circular Slab Polishing Machine inclination which were generated by the steps trimming-grinding, at the meanwhile, clear the customer's concerns about arc slab edge&angle damage. Machine adopt linear guides, multi grinding head and PLC system. it has a high-precision, high efficiency, easy operation and others, it is the ideal equipment for arc slab polishing.

This machine is better than fix by gripping two sides.And solve the problem which caused verticality and inclination mistake after trimming.It won't broke the edge of column slabs.

Technical Parameter (Apm-350 stone polisher for arc/ circular slabs)

Parameter	Unit	APM-350-2000-12
Processing diameter	mm	350-2000
Processing length	mm	1300
Grinding number	piece	12
Gross motor	kw	32
Efficiency	min/M2	≈8
Outline dimension	mm	5800*1700*2900
Water consumption	m³/h	7
Gross weight	kg	6000

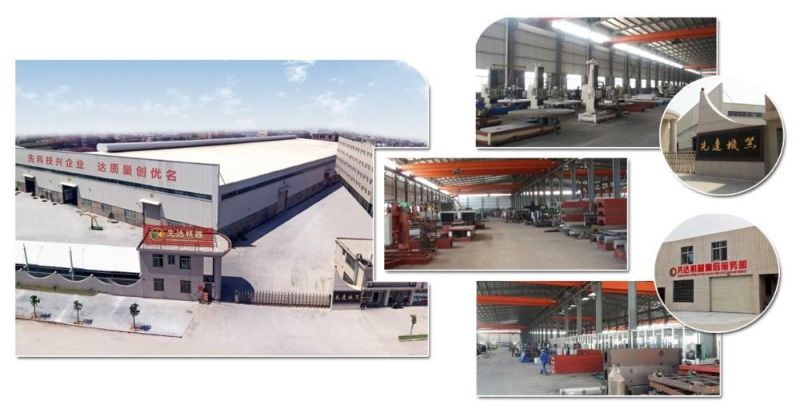

Xianda Machinery (Our factory)

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

We took part in more than 12 international fairs every year. Next, we may go to Brazil, Russia, Germany, America, Iran, Vietnam, Egypt, Italy etc. If you are interested in our machines, you can send your requirements to us by email or call us directly.
Mp: +8613959953930

After sale Service

 We have professional after sale service team , if you meet any problem about the stone machine, you can contact us any time suits you. Besides,  we can provide some professional training for machine using and maintenance.

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
