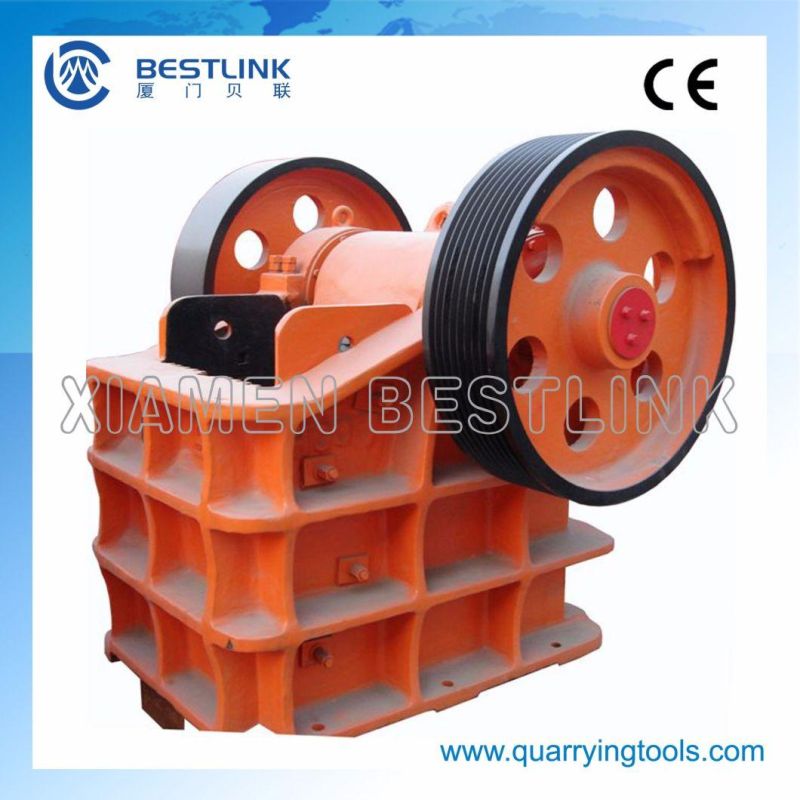

• Model NO.：PE200*350 Stone Jaw Crusher
• Compressive Strength (For Crushing)：No
• Crushing Degree：Coarse Crusher
• Finished Surface：Outer Surface Process
• Certification：CE
• Condition：New
• Color：Red
• Brand：Bestlink
• Loading Port：Xiamen
• Certificate：CE
• Usage：Stone Crushing

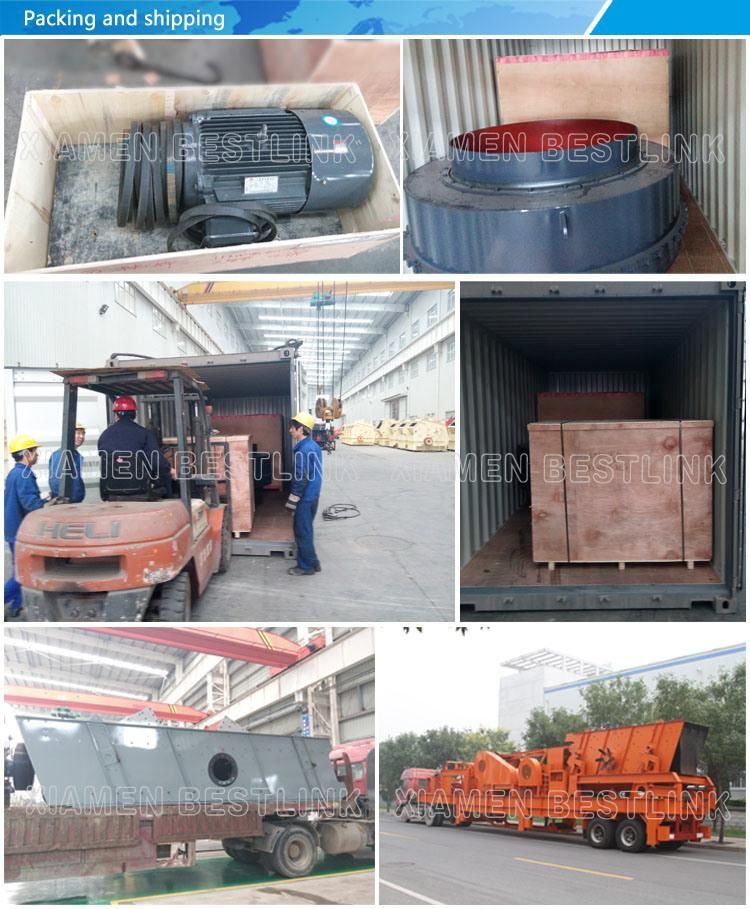

• Transport Package：Wooden Box
• Specification：CE
• Trademark：BESTLINK
• Origin：Xiamen, China
• HS Code：84742090
• Production Capacity：500sets,Month

Basic Info.

Model NO. PE200*350 Stone Jaw Crusher Compressive Strength (For Crushing) No Crushing Degree Coarse Crusher Finished Surface Outer Surface Process Certification CE Condition New Color Red Brand Bestlink Loading Port Xiamen Certificate CE Usage Stone Crushing Transport Package Wooden Box Specification CE Trademark BESTLINK Origin Xiamen, China HS Code 84742090 Production Capacity 500sets/Month

Product Description

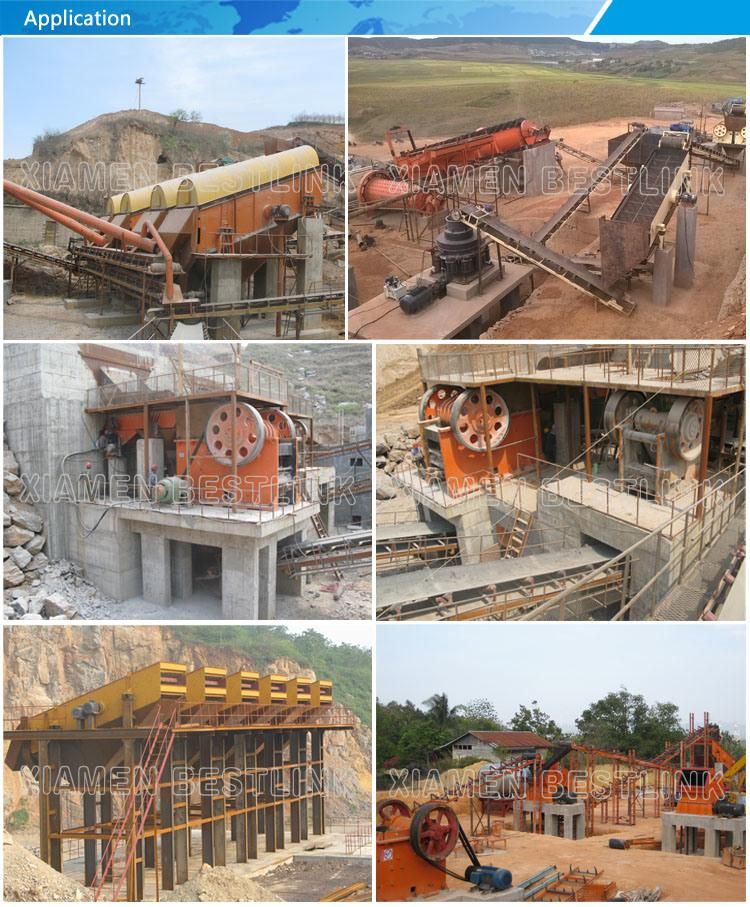

1. Application:
Bestlink Jaw crusher is a trusted and reliable brand for its high quality and good manufacturing. Jaw Crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 245Mpa, that is suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost. PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble, etc. Compression strength does not exceed 320Pa. This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.

2. Futures:
1). Firm structure, stable performance, large capacity, even producing granularity.
2). Little noise and dust.
3). Convenient maintenance and economical running expense.
4). High ratio of crushing, homogeneous final product size.
5). The deep crushing cavity increases the feeding capacity and output capacity;
6). Lubricate system is safe and reliable, easy to change the spare parts;
7). Simple structure, easy maintenance, consumption cost is lower;
8). Energy-saving, for one set saving about 15%-30%;
9). With the increase of production, our jaw crusher can greatly reduce the operating costs.
10). Adjusting the discharge opening through gasket, more convenient, it can meet different customers' requirenment
11). The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity


Model	Feed Opening (mm)	Max. Feed Size (mm)	Capacity (t/h)	Power Consumption (kw)	Discharge Opening (mm)	Overall Dimension (L x W x H) (mm)
PE-150×250	150×250	125	1-5	5.5	10-40	758×758×794
PE-250×400	250×400	210	5-20	15	20-60	1500×1400×900
PE-400×600	400×600	340	16-65	30	40-100	1700×1800×1600
PE-500×750	500×750	425	50-100	55	50-100	1890×1940×1870
PE-600×900	600×900	500	50-120	55	65-160	2395×1843×2230
PE-750 ×1060	750×1060	630	52-180	110	80-140	2775×2426×2840
PE-800×1060	800×1060	640	136-230	110	100-200	2500×2472×2810
PE-900×1200	900×1200	750	140-260	110	95-165	3400×3200×3500
PE-1000×1200	1000×1200	850	315-342	110	195-265	3335×3182×3430
PE-1200×1500	1200×1500	1020	400-800	160	150-300	4200×3732×4620
PE-250 ×750	250×750	210	15-30	22	15-70	1400×1300×1350
PE-250×1000	250×1000	210	16-52	30	25-60	1600×2000×1500
PE-250 ×1200	250×1200	210	20-60	37	25-60	1900×2200×1500
PE-300×1300	300×1300	260	30-70	55	30-90	1800×2300×1700
