• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Blade Size：400 - 625 mm
• Max.Cut Size (L*W*H)：3200mm*2000mm*170mm
• Blade Tilt：0-45 Degree
• Table Rotate：0 - 360 Degree Locked Any Position
• Table Tilt：0-85 Degree
• Spindle Motor：15 Kw 20 HP
• Transport Package：Plastic Packing
• Specification：Dimention: 6m*5m*3m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Blade Size 400 - 625 mm Max.Cut Size (L*W*H) 3200mm*2000mm*170mm Blade Tilt 0-45 Degree Table Rotate 0 - 360 Degree Locked Any Position Table Tilt 0-85 Degree Spindle Motor 15 Kw 20 HP Transport Package Plastic Packing Specification Dimention: 6m*5m*3m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200 Sets/Month

Product Description

Automatic Mono China CNC Machine 5 Axis Bridge Saw Cutting Granite Marble Stones with High Quality
Product No.XZQQ625A

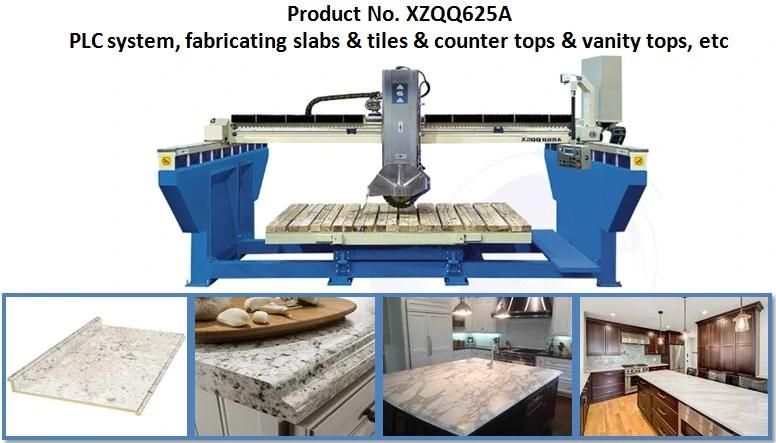

Granite bridge saw XZQQ625A is made with full options including mono frame, pendant control panel, touch screen, wireless remote, table rotation and tilting, hydraulic pump, etc.
Also the tilting blade provides 45 degree for mitred cuts very excellent performance in cutting granite marble stones.

Are you sourcing the most reliable and efficient granite bridge saw for cutting and fabricating countertops, vanitytops, benchtops, etc? Here is exactly what you need. Please have a look at the machine details as follows:

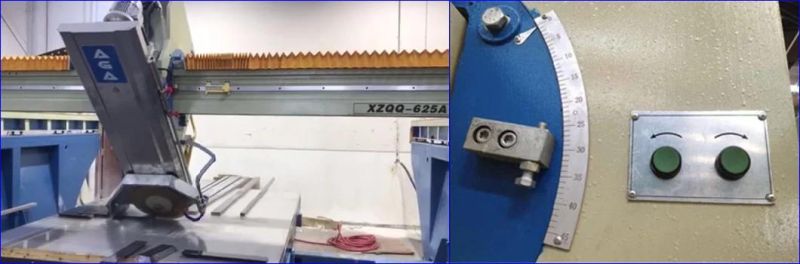

1) Miter Cut:
Granite bridge saw head tilts 0°-45°  for miter cut.

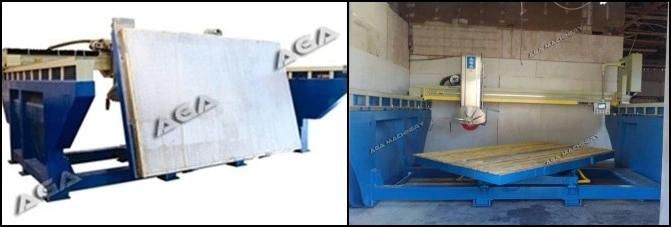

2) Table Tilting and Rotating:
Granite bridge saw table tilts 0°-85° for easy load of materials and it rotates 0°-360° stopping automatically at 45°, 90°, and any angle to change the cutting position easily.

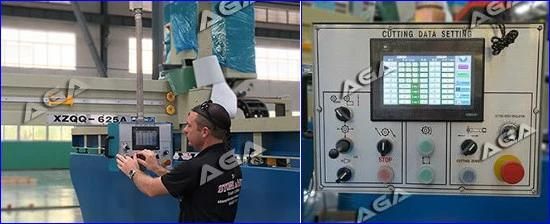

3) Programming Control:
This mono block granite bridge saw machine is computer control and with color Display Touch Screen. All functions are operated on the control panel that make it very user friendly.

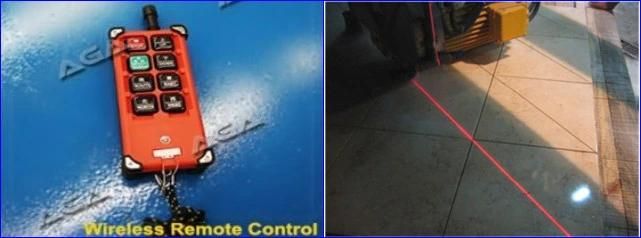

4) Wireless remote:
Wireless remote provides ease control of the bridge saw.  Laser guide provides precise cutting.


5) Granite bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

6) Hot sales in the market at the right price:
