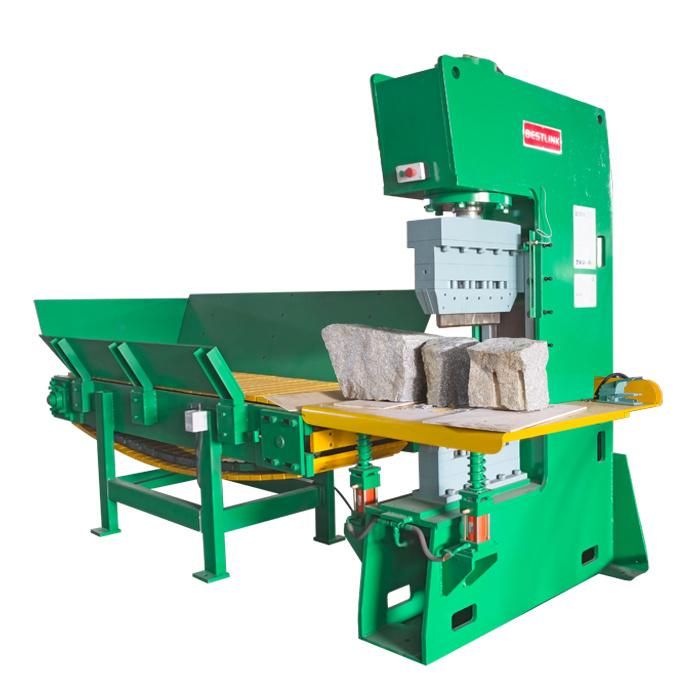

Bridge Saws, Granite Block Cutter, Granite Stone Splitting Cutting Machine
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：BRT20T,BRT40T,BRT70TStone Splitting machine
- Control：CNC

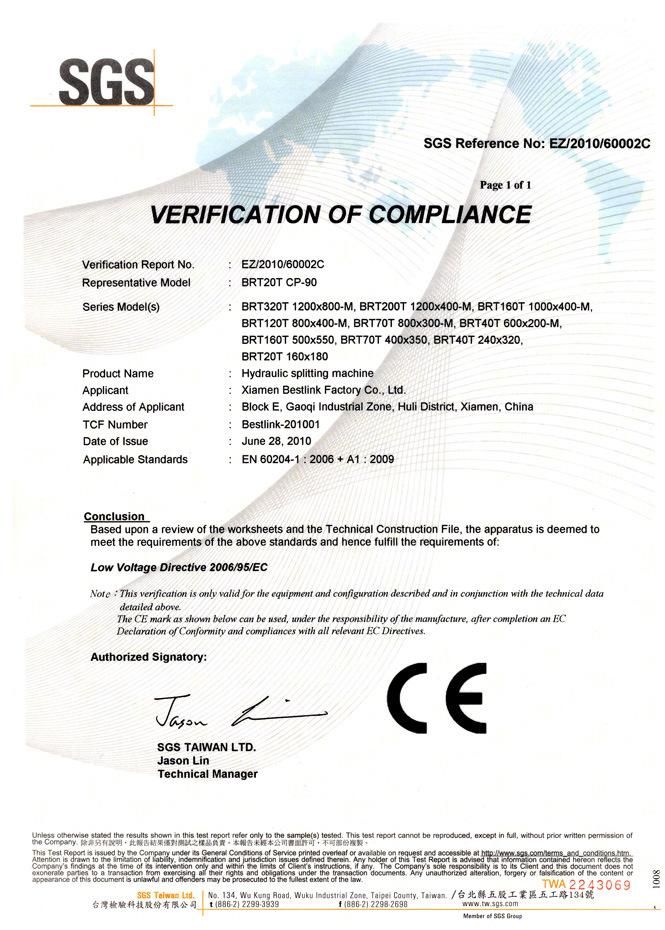

- Certification：CE
- Warranty：1 Year
- Suitable Stone：Granite, Marble, Sandstone, Limestone, Concrete
- Voltage：as Per Client′s Request
- Capacity：300 PCS Per Hour
- Transport Package：Plywood Box or Naked Packing
- Specification：as per machine model
- Trademark：BESTLINK
- Origin：Fujian, China
- HS Code：84791090
- Production Capacity：20sets Per Month
Description
DescriptionModel Stone Splitter BRT20T-160×180-RB10×5 Technical Specification of Item 1: DESCRIPTIONS UNIT VALUE Blade Width mm 160 Piston extend mm 195 Max splitting power Ton 20 Max splitting width mm 160 Max splitting height mm 180 Dimension of main machine(L*W*H) mm 1145*1000*2030 Electric power KW 7.5 Electric voltage U 380V,50HZ Weight kg 2300 Oil tank capacity L 220 blade with adaption(mm) mm 10(upper)*7(Lower) Description Model Stone Splitter BRT40T-240×320-RB20×10 Technical Specification of Item 2: DESCRIPTIONS UNIT VALUE Blade Width mm 240 Piston extend mm 335 Max splitting power Ton 40 Max splitting width mm 240 Max splitting height mm 320 Dimension of main machine(L*W*H) mm 1260*1000*2300 Electric power KW 11 Electric voltage U 380V,50HZ Weight kg 2900 Oil tank capacity L 285 blade with adaption(mm) mm 15(upper)*10(Lower) Description Model Stone Splitter BRT70T-400×350-RB20×10 Technical Specification of Item 3: DESCRIPTIONS UNIT VALUE Blade Width mm 400 Piston extend mm 365 Max splitting power Ton 70 Max splitting width mm 400 Max splitting height mm 350 Dimension of main machine(L*W*H) mm 1500*1200*2330 Electric power KW 11 Electric voltage U 380V,50HZ Weight kg 3200 Oil tank capacity L 285 blade with adaption(mm) mm 20(upper)*10(Lower) Description Model Stone Splitter BRT160T-500×550-RB30×15 Technical Specification of Item 4: DESCRIPTIONS UNIT VALUE blade Width mm 500 Piston extend mm 570 Max splitting power Ton 160 Max splitting width mm 500 Max splitting height mm 550 Dimension of main machine(L*W*H) mm 1970*1200*3230 Electric power KW 15 Electric voltage U 380V,50HZ Weight kg 7500 Oil tank capacity L 670 blade with adaption(mm) mm 30(upper)*15(Lower) Description Model Stone Splitter BRT200T-1200×400-RB30×15-M Technical Specification of Item 5: DESCRIPTIONS UNIT VALUE Blade Width mm 1200 Piston extend mm 420 Max splitting power Ton 200 Max splitting width mm 1200 Max splitting height mm 400 Electric voltage U 380V,50HZ Weight kg 8500 blade with adaption(mm) mm 30(upper)*15(Lower) Description Model Stone Splitter BRT320T-1200×800-RB36×20-M Technical Specification of Item 7: DESCRIPTIONS UNIT VALUE Blade Width mm 1200 Piston extend mm 850 Max splitting power Ton 320 Max splitting width mm 1200 Max splitting height mm 800 Dimension of main machine(L*W*H) mm 2370*1500*3840 Electric power KW 22 Electric voltage U 380V,50HZ Weight kg 10000 Oil tank capacity L 670 blade with adaption(mm) mm 36(upper)*20(Lower)
