• Model NO.：BWT-3500
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Wire Length：20.6m
• Worktable Rotating(Optional)：360°
• Max Processing Size：3500X3500X2100mm
• Dimension of Worktable：2500X2000mm
• Water Consumption：4m3,H
• Main Motor：15kw
• Total Motor：24kw
• Weight：8000kg
• Condition：New
• Specification：9500*6800*4700mm
• Trademark：XIANDA
• Origin：Fujian, China
• HS Code：8464109000
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. BWT-3500 Cutting Ability High Speed Control PLC Certification ISO, CE Wire Length 20.6m Worktable Rotating(Optional) 360° Max Processing Size 3500X3500X2100mm Dimension of Worktable 2500X2000mm Water Consumption 4m3/H Main Motor 15kw Total Motor 24kw Weight 8000kg Condition New Specification 9500*6800*4700mm Trademark XIANDA Origin Fujian, China HS Code 8464109000 Production Capacity 1000 Sets Per Year

Product Description

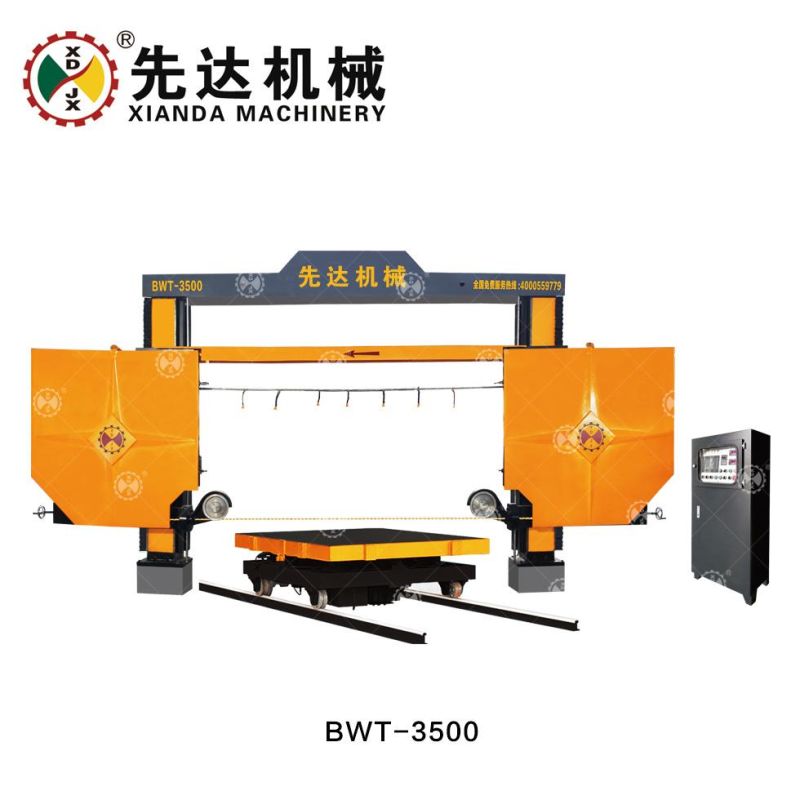

BWT-3500 diamond wire-saw trimming machine adopts PLC control,CNC is available also.The special design for 360° worktables will fulfil your need,used to trimming the four surfaces of the block,also can cut the block to slab,which is the ideal equipment for cutting and trimming block.Some more it compatible with CNC system,which can process the column slab,pillar,roman column,numeral,letter,Chinese characters and other shapes for the stone.



Parameter	Unit	BWT-35000	CNC-3500
Max processing size	mm	3500x3500x2100	3500x3500x2100
Dimension of worktable	mm	2500x2000	2500x2000
Main motor	kw	15	15
Gross motor	kw	24	23
Outline dimension	mm	9500x6800x4700	9500x6800x4700
Gross weight	kg	8000	8000
Water consumption	kw	4	4

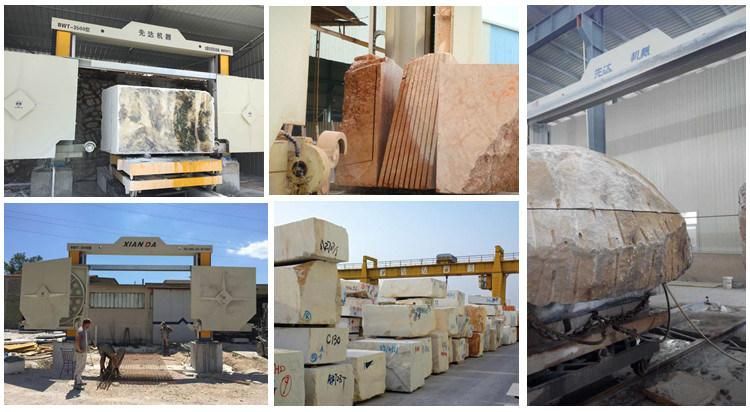

Factory Overviews

Certifications



Our Services



We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
