Cnfx-1800 Gantry Type Profiling Lines Automatic Cutting Machine for Marble Granite Stone
Fujian Xianda Machinery Co., Ltd.- Type：Bridge Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：CNFX-1800
- Control：CNC
- Certification：ISO
- Use for：Linear Profiling,Balustrade Cutting
- Blade Diameter：400-600mm
- Max Lifting Travel of Cutting Frame：250mm
- Worktable Diamension：3500X1800mm
- Main Motor：15kw
- Gross Motor：17.5kw
- Gross Weight：6000kg
- Water Consumption：6m³,H
- Warranty：12 Months
- Specification：6000x3600x2500mm
- Trademark：XIANDA
- Origin：Fujian, China
- HS Code：84641090
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. CNFX-1800 Control CNC Certification ISO Use for Linear Profiling,Balustrade Cutting Blade Diameter 400-600mm Max Lifting Travel of Cutting Frame 250mm Worktable Diamension 3500X1800mm Main Motor 15kw Gross Motor 17.5kw Gross Weight 6000kg Water Consumption 6m³/H Warranty 12 Months Specification 6000x3600x2500mm Trademark XIANDA Origin Fujian, China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description

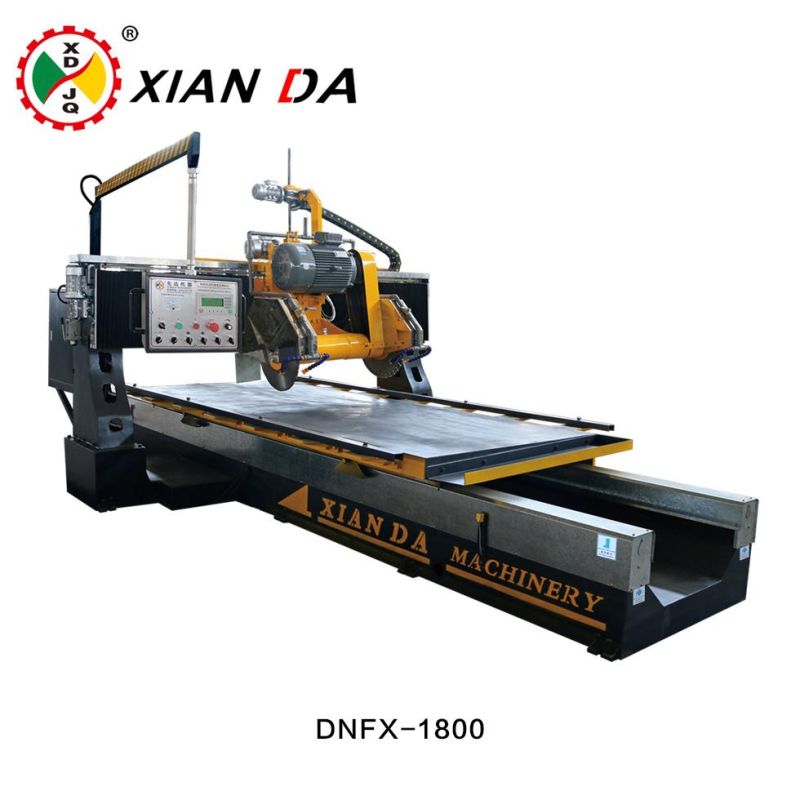

This machine with gantry structure adopts computer profiling lines,cutting with double saw blades,which is specially used for cutting profiling lines,roman column,big column slab and so on for the heterotype stones.
Remark:choosing CNC system, it will eliminate the trouble of making a template, have a higher degree of automation and cutting accuracy.
| Parameter | Unit | DNFX-1800 | CNFX-1800 |
| Blade diameter | mm | φ400-φ600 | φ400-φ600 |
| Max lifting travel of cutting frame | mm | 250 | 250 |
| Worktable dimension | mm | 3000x1800 | 3500x1800 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 17.5 | 17.5 |
| Outline dimension | mm | 6000x3600x2500 | 6000x3600x2500 |
| Gross weight | kg | 6000 | 6000 |
| Water consumption | m³/h | 6 | 6 |

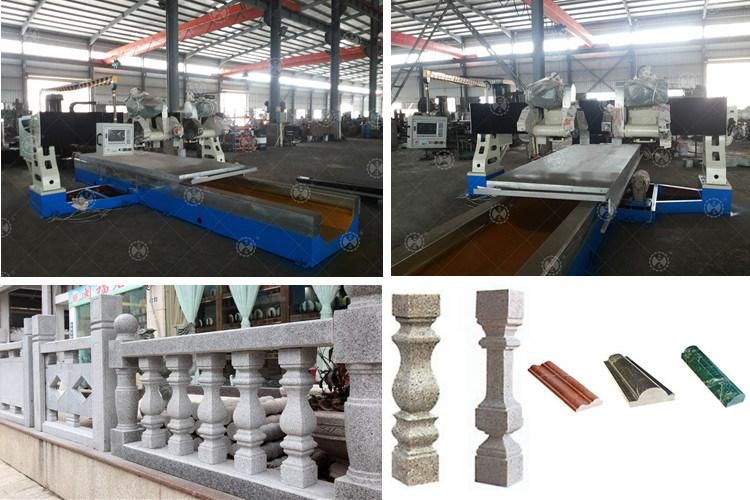

Product Show
Our Services
We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.
Top 5 stone cutting machine manufacturer with ISO&CE certificate.
Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.
We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.
After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
